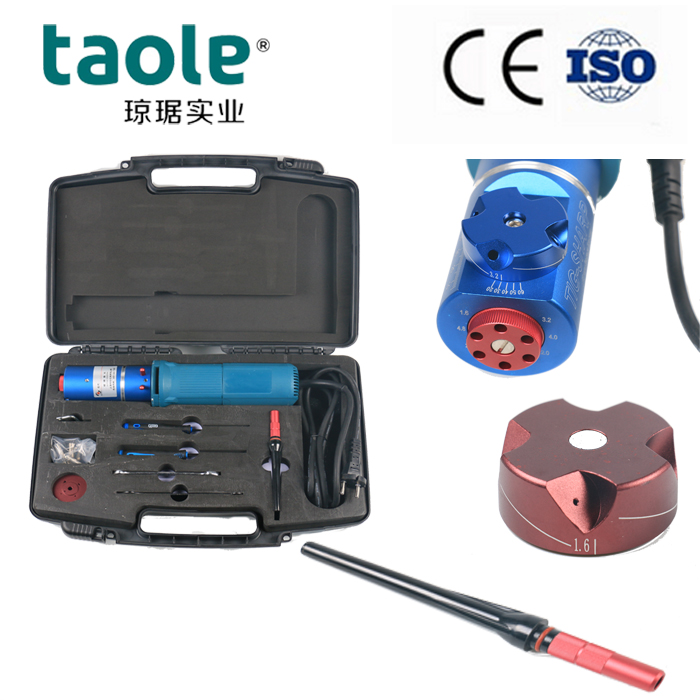

ST-40 Portable Tungsten Electrode Grinder grinding machine for TIG welding
Short Description:
Tungsten electrode grinder is the best and safe way for improving TIG argon ARC Welding & Plasma welding etc. Generally it request to grind on tungsten and it is very necessary to use a tungsten electrode grinder to shape the tungsten and achieve a surface roughness for improving welding quality and reduce harmful operation by human body. Portable electrode Grinder Sharpener is easy to adjust on the sizes and bevel angel, Efficient operation with high quality.
ST-40 tungsten electrode grinder is kind of portable tungsten electrode grinding machine with wide working range.Mianly for tungsten needle grinding and milling to improve the welding quality.
Tungsten electrode grinder is the best and safe way for improving TIG argon ARC Welding & Plasma welding etc. Generally it request to grind on tungsten and it is very necessary to use a tungsten electrode grinder to shape the tungsten and achieve a surface roughness for improving welding quality and reduce harmful operation by human body. Portable electrode Grinder Sharpener is easy to adjust on the sizes and bevel angel, Efficient operation with high quality.
Specification for ST-40 Portable Tungsten Electrode Grinder grinding machine
| Product Model | GT-PULSE | ST-40 |
| Input Voltage | 220V AC50-60Hz | 220V AC50-60Hz |
| Total Power | 200W | 500W |
| Wire Length | 2 meters | 2 meters |
| Rotating Speed | 28000 r/min | 30000 r/min |
| Noise | 65 db | 90 db |
| Milling Diameter | 1.6/2.4/3.2mm | 1.0/1.6/2.0/2.4/3.2/4.0/6.0mm |
| Bevel Angel | 22.5/30 degree | 20-60 degree |
| Packing Box | 310*155*135mm | 385*200*165mm |
| N.W | 1.2 KGS | 1.5 KGS |
| G.W | 2 KGS | 2.5 KGS |
Main Characteristics for ST-40 Portable Tungsten Electrode Grinder
1. Electrode Grinder using reliable and quality micro motor with R.P.M controlled electronically.
2. Unique design for with dust collection to reduce human harm.
3. Easy adjust on bevel angel and tungsten diameter and portable design.
4. High Precision on surface to improve welding quality.
5. Electrodes and tips are sharpened to confirm to recognized standards
6. Replaceable grinding wheel diamond coated on both sides
7. Suitable for vary electrode angels and diameters with OEM service.
8. Customized available with OEM Service
 |
 |
 |
 |
