Free sample for Portable & handheld electric pipe beveller – Excavator Bucket Cutting Edge Detail:

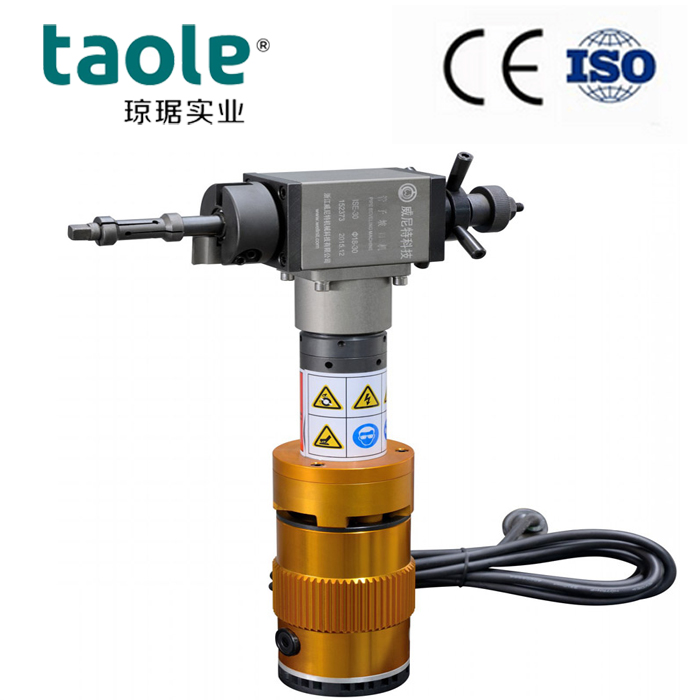

ISE-30 portable / handheld electric pipe beveller

Introduction

This series is id-mounted pipe beveling machine, with the advantage of easy operation, light weight, powerful drive,fast working speed,nice performance etc. A draw nut is tighened,which expands the mandrel blocks up a ramp and against the ID surface for positive mounting, self centered and squared to the bore. It can work with various material pipe, beveling angel as per requirements.

内涨式加工图片

Specification

Power Supply: 220-240V 1ph 50-60HZ

Motor Power:1.4-2kw

Model No. Working Range Wall thickness Rotation Speed
ISE-30 φ18-30 1/2”-3/4” ≤15mm 50 r/min
ISE-80 φ28-89 1”-3” ≤15mm 55 r/min
ISE-120 φ40-120 11/4”-4” ≤15mm 30 r/min
ISE-159 φ65-159 21/2”-5” ≤20mm 35 r/min
ISE-252-1 φ80-273 3”-10” ≤20mm 16 r/min
ISE-252-2 φ80-273 ≤75mm 16 r/min
ISE-352-1 φ150-356 6”-14” ≤20mm 14 r/min
ISE-352-2 φ150-356 ≤75mm 14 r/min
ISE-426-1 φ273-426 10”-16” ≤20mm 12 r/min
ISE-426-2 φ273-426 ≤75mm 12 r/min
ISE-630-1 φ300-630 12”-24” ≤20mm 10 r/min
ISE-630-2 φ300-630 ≤75mm 10 r/min
ISE-850-1 φ490-850 24”-34” ≤20mm 9 r/min
ISE-850-2 φ490-850 ≤75mm 9 r/min

Note: Standard machines including 3 pcs of bevel tool (0 ,30,37.5 degree) + Tools + Operation Manual

内涨式坡口机

Main Fetures

1. Portable with light weight.

2. Compact machine design for easy operation and maintanance.

3. Bevel tools milling with high previous and stable performance

4. Avaiable for vary metal material such as carbon steel, stainless steel, Ally etc.

5. Adjustable speed,self-certering

6. Powerful driven with option of Pneumatic , Electric.

7. Bevel angel and joint could be made as per processing needs.

Bevel Surface

ISE-ISP beveling machine performance

Application

Widely used in the fields of petroleum, chemical, natural gas,power plant construction,bolier and nuclear power, pipeline etc.

Customer Site
