In the realm of metal fabrication, precision and efficiency are paramount, especially when it comes to processing small flat plates. The metal edge beveling machine has emerged as an essential tool for manufacturers looking to enhance their production capabilities. This specialized equipment is designed to create precise bevels on the edges of flat plates, ensuring optimal fit and weld quality in various applications.
The plate beveling machine for processing small flat plates is engineered to handle a range of materials, including steel, aluminum, and other alloys. Its versatility makes it an ideal choice for industries such as construction, shipbuilding, and automotive manufacturing, where small flat plates are frequently used. By utilizing advanced technology, these machines can achieve consistent bevel angles and smooth finishes, significantly reducing the need for manual labor and minimizing the risk of human error.
A certain mechanical processing company needs to perform bevel processing on a batch of plates.
The following are the specific requirements of the customer:

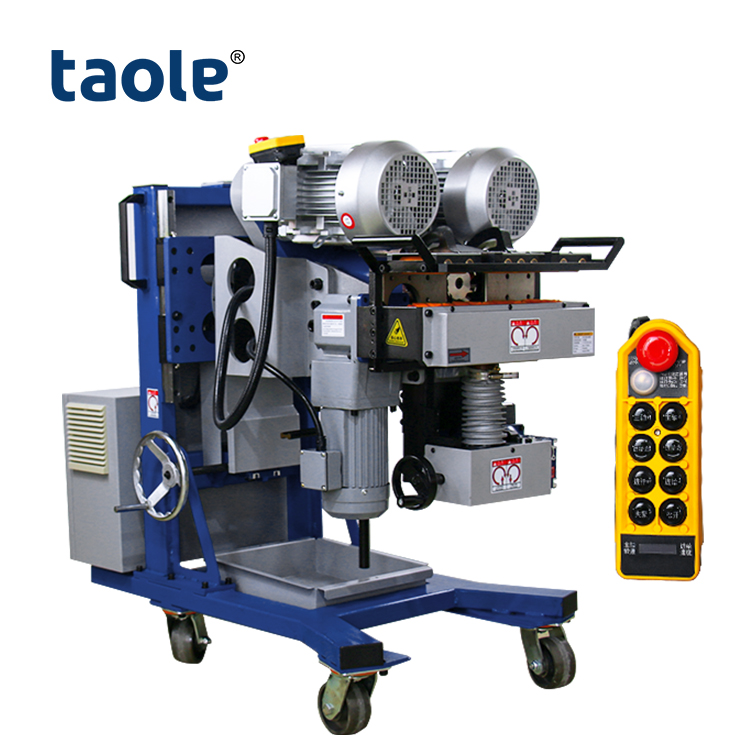

Q235 carbon steel plate, plate width 250mm, plate length 6M, 20mm thick steel plate, 45 degree bevel, 1mm blunt edge We recommend using the TMM-80R steel plate beveling machine:
Product parameters
| PRODUCT MODEL | TMM-80R | Processing board length | >300mm |
| Power supply | AC 380V 50HZ | Bevel angle | 0°~±60°Adjustable |
| Total power | 4800w | Single bevel width | 0~20mm |
| Spindle speed | 750~1050r/min | Bevel width | 0~70mm |
| Feed Speed | 0~1500mm/min | Blade diameter | φ80mm |
| Thickness of clamping plate | 6~80mm | Number of blades | 6pcs |
| Clamping plate width | >100mm | Workbench height | 700*760mm |
| Gross weight | 385kg | Package size | 1200*750*1300mm |
TMM-80R metal plate beveling machine can process V/Y bevel, X/K bevel, and milling operation after plasma cutting of stainless steel.

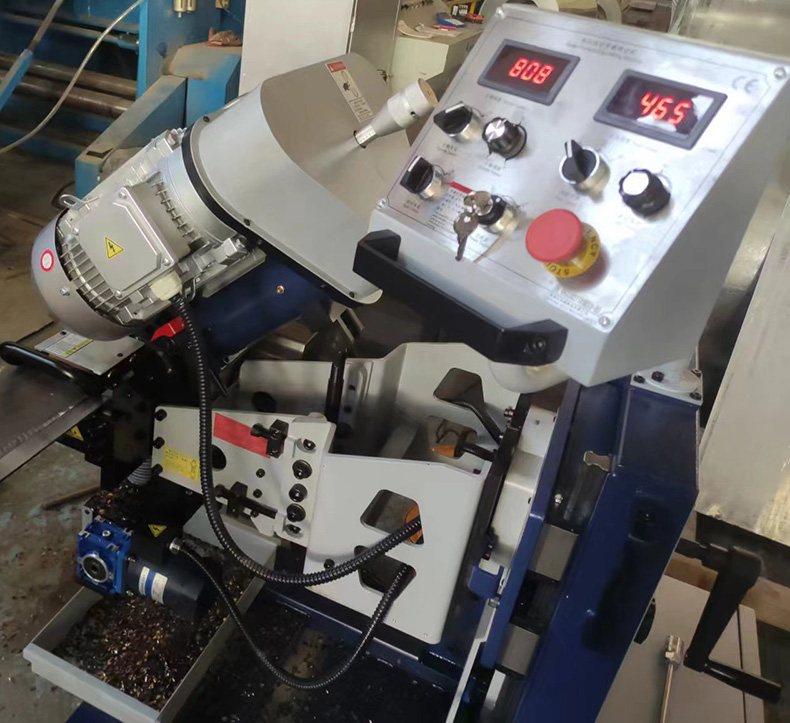

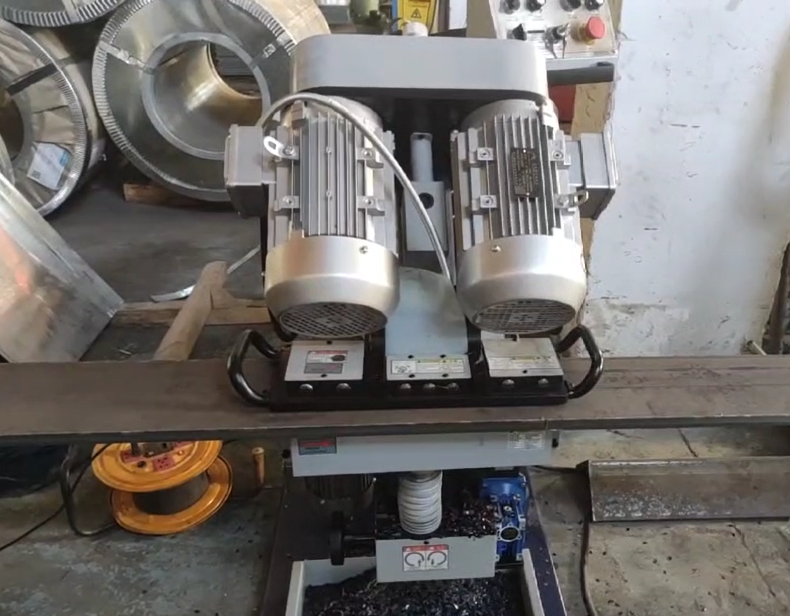

Processing display:
After processing, the customer is very satisfied with the results and has signed a long-term cooperation plan.
