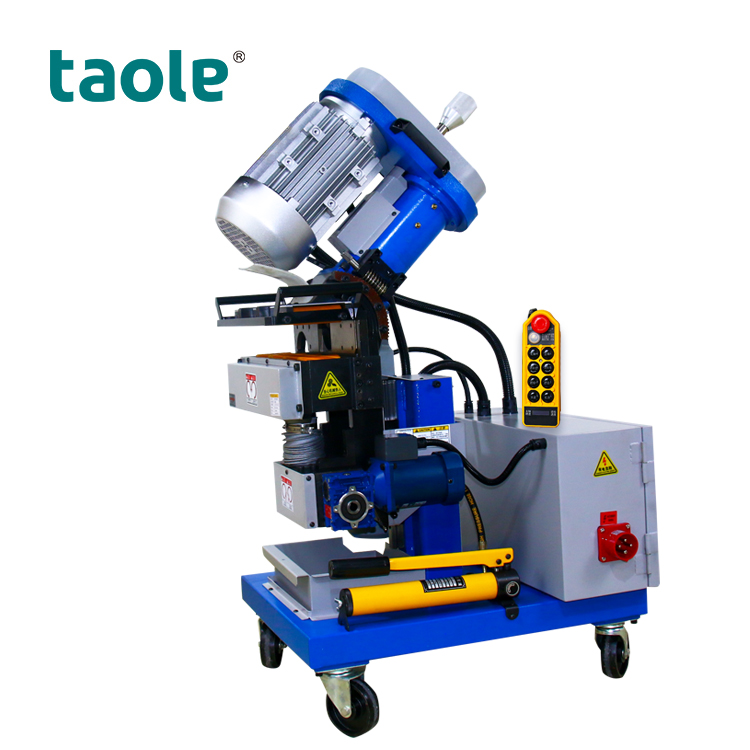

GMM-60SY Remote Control Plate edge milling beveling machine plate beveler
Short Description:
GMM-60SY Remote Control Plate edge milling beveling machine plate beveler is kind of auto guiding beveling machine along with plate for plate edge milling, chamfering, clad removal against welding preparation. Available for V/Y type bevel joint and Vertical milling at 0 degree. GMM-60SY for plate thickness 6-60mm, bevel angel 0-60 degree and max bevel width could reach 45mm.
GMM-60SY Remote Control Plate edge milling beveling machine plate beveler
Metal plate edge beveling milling machine mainly to do bevel cutting or clad removal / clad stripping /edge chamfering on steel plates material like mild steel, stainless steel, aluminum steel, alloy titanium,hardox,duplex etc. It is widely used for welding industry for welding preparation.
GMM-60SY Remote Control Plate edge milling beveling machine plate beveler is a basic and economic model for plate thickness 6-60mm, bevel angel 0-60 degree. Mainly for bevel joint V/ Y type and vertical milling at 0 degree. Using Market standard milling heads diameter 63mm and milling inserts.
Max bevel width could reach 45mm for basic bevel sizes against welding.
Bevel Joint and Bevel Size reference for GMM-60SY plate edge beveler
 |
 |
Parameters for GMM-60SY Remote Control Plate edge milling beveling machine plate beveler
| Models | GMM-60SY plate beveler |
| Power Suppy | AC 380V 50HZ |
| Total Power | 4520W |
| Spindle Speed | 1050r/min |
| Feed Speed | 0~1500mm/min |
| Clamp Thickness | 6~60mm |
| Clamp Width | >80mm |
| Clamp Length | >300mm |
| Bevel Angel | 0~60 degree |
| Singel Bevel width | 0-20mm |
| Bevel Width | 0-45mm |
| Cutter Diameter | Dia 63mm |
| Inserts QTY | 6 pcs |
| Worktable Height | 700-760mm |
| Suggest Table Height | 730mm |
| Worktable Size | 800*800mm |
| Clamping Way | Auto Clamping |
| Wheel Size | 4 Inch STD |
| Machine Height Adjust | Hydraulic |
| Machine N.Weight | 200 kgs |
| Machine G Weight | 255 kgs |
| Wooden Case Size | 800*690*1140mm |
GMM-60SY plate edge beveler standard packing list and wooden cases packaging.
Note: GMM-60SY plate beveler using market standard milling heads diameter 63mm with 6 teethes and milling inserts
 |
 |
Advantages for GMM-60SY Remote Control Plate edge milling beveling machine plate beveler
1) Automatic walking type beveling machine will walk along with plate edge for bevel cutting
2) Beveling machines with universal wheels for easy moving and storage
3) Cold cutting to avoid any oxide layer by using milling head and inserts for higher performance on surface Ra 3.2-6.3. It can do welding directly after bevel cutting. Milling inserts are market standard.
4) Wide working range for plate clamping thickness and bevel angels adjustable.
5) Unique design with reducer setting behands safer.
6) Available for multi bevel joint type and easy operation.
7) High efficiency beveling speed reach 0.4~1.2 meters per min.
8) Automatic Clamping system and hand wheel setting for slight adjustment.
Proofing V-shaped groove
Application for GMMA-60S plate edge beveler machine
Plate beveling machine are widely applicated for all welding industry. Such as
1) Steel Construction 2) Shipbuilding Industry 3) Pressure Vessels 4) Welding Manufacturing
5) Construction Machinery & Metallurgy

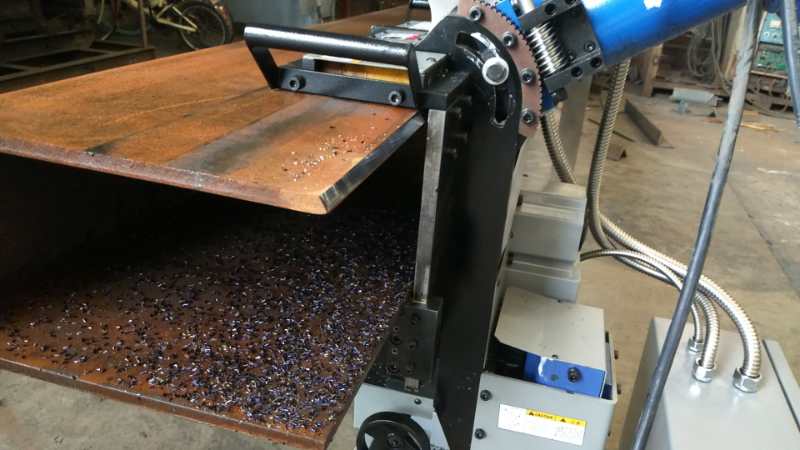

Site performance picture for reference by GMM-60SY plate edge beveler
GMM-60SY is specially for small plates or low thickness plates on top bevel. Normally customer will be facing options on GMM-60SY plate beveler and GMM-60LY plate beveler.
1) GMM-60SY for 6-60mm, bevel angel 0-60 degree,Max bevel width 45mm
2) GMM-60LY for 6-60mm, bevel angel 0–90-degree, Max bevel width 60mm
The Main different: GMM-60LY beveling machine spindle adjustable to achieve bigger bevel width due to 0-90 degree, Available to change head for U /J bevel and 90 degrees milling for transition bevel (L type bevel)
 |
 |
