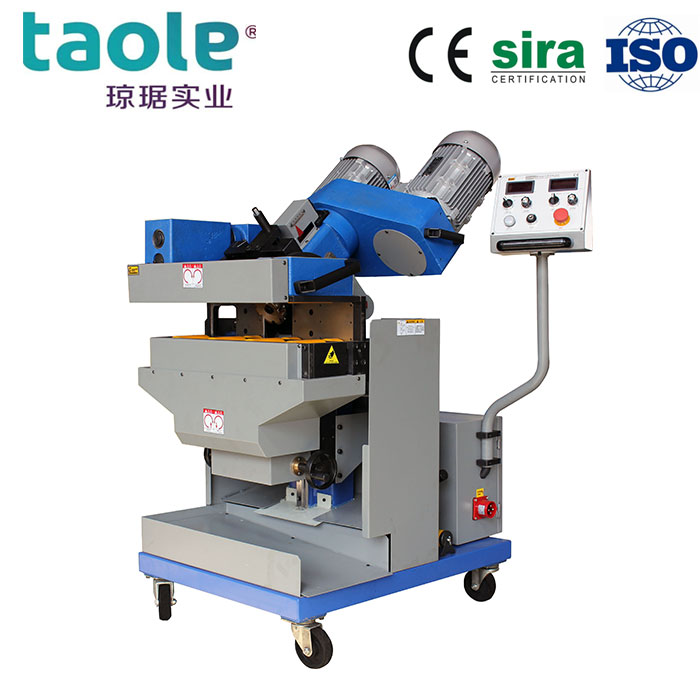

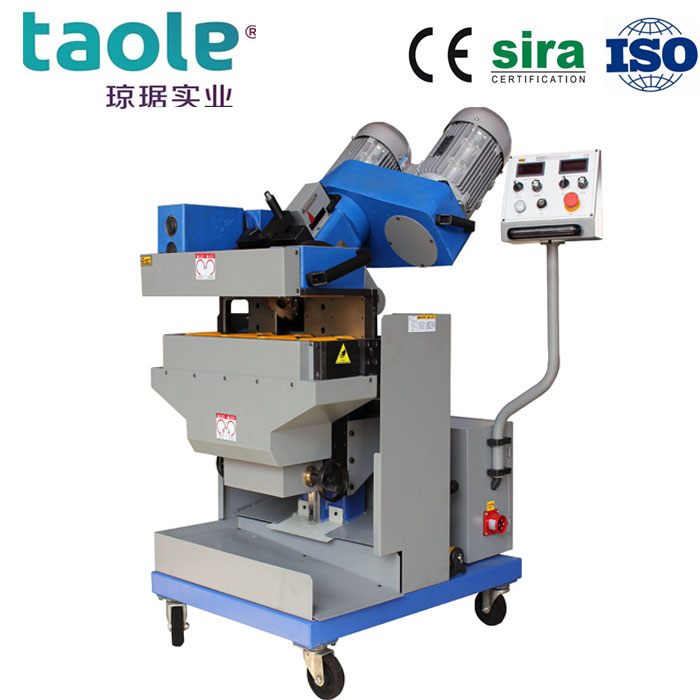

GMMA-100L plate beveling machine

Short Description:

GMMA-100L is a new model of plate beveling machine for heavy duty metal sheets on fabrication preperation.

It is avaiable for metal sheet thickness from 8 to 100mm, bevel angel 0-90 degree for vary type of welding joint.




  • Model NO.: GMMA-100L
  • Brand Name: GIRET or TAOLE
  • Certification: CE, ISO9001:2008, SIRA
  • Place of Origin: Kun Shan, China
  • Delivery Date : 5-15 days
  • Packaging: In Wooden Case
  • MOQ: 1 Set
  • Product Detail

    Product Tags



    GMMA-100L heavy duty plate beveling machine



    GMMA-100L is a new model specially for heavy duty metal sheets for fabrication preperation.

    It is available for plate thickness 8-100mm, bevel angel 0 to 90 degree for vary type of welding  joint such as V/Y,U/J, 0/90 degree.  Max bevel width could reach 100mm.



    Model No. GMMA-100L Heavy duty plate beveling machine
    Power Supply  AC 380V 50 Hz
    Total Power  6400W
    Spindle Speed  750-1050 r/min
    Feed Speed  0-1950mm/min
    Clamp Thickness  8-100mm
    Clamp Width  ≥ 100mm
    Process Length  > 300mm
    Bevel Angel   0-90 degree adjustable
    Single Bevel Width   0-30mm
    Max Bevel Width  0-100mm
    Cutter Plate  100mm
    Inserts  QTY   6 PCS
    Worktable Height  770-870mm
    Floor Space  800*800mm
    Weight N.W: 380KGS  G.W: 440 KGS
    Packing Size  700*950*1230mm



    Note: Standard Machine including  1pc cutter head + 2 set of Inserts + Tools in case + Manual Operation
