High Efficiency OD Mounted Portable China Flange Facing Machine Grooves for RTJ flange facer
Short Description:
OD mounted flange facing machine is designed for the flange face, seal groove and serrated finish,weld prep and counter boring. With the latest line and ball screw technology,the equipment adopts the modular design concept as a whole. Each step of design takes the field processing as the starting poing. This machine is widely used in the flange connecting of Petroleum,chemical,natural gas and nuclear power. With the light weight, this machine is helpful for the on-site maintenance. It ensures the high security and efficiency.
PRODUCT DESCRIPTION

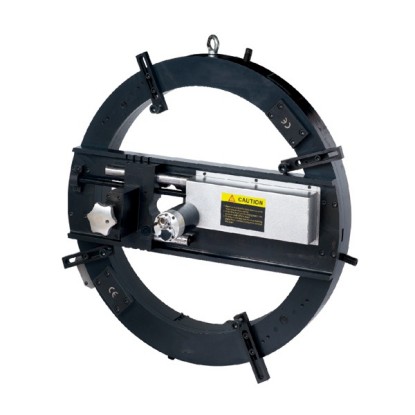

TFP/S/H-O Series Mounted Flange Facer machines are ideal for facing and end-prepping all types of flange surfaces. These belt driven machines use adjustable cam tensioners driven with a pneumatic motor, producing precise and repeatable results. The slide and compound are guided by a precision ball screw and linear rails resulting in a rigid system with exceptionally smooth travel. The compound can swivel to any angle off vertical providing flexibility to machine a variety of different gasket surfaces.

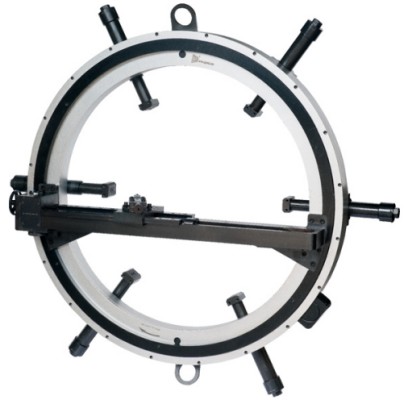

These externally mounted flange facers clamp onto the outside diameter of the flange using quick-set adjustable legs and jaws. As with our ID mount models, these are also used to machine a continuous groove spiral serrated flange finish. Several can also be configured to machine grooves for RTJ (Ring Type Joint) gaskets.
This machine is widely used in the flange connecting of Petroleum, chemical, natural gas and nuclear power. With the light weight, this machine is helpful for the on-site maintenance. It ensures the high security and efficiency.
Main Feature
1. Boring and milling tools are optional
2. Driven motor: Pneumatic, NC Driven, Hydraulic Driven optional
3. Working range 0-3000mm, Clamping range 150-3000mm
4. Light weight, Easy Carry, Fast installation and easy to use
5. Stock finish, smooth finish, gramophone finish, on flanges, valve seats and gaskets
6. High quality finish can be achieved. The feed of cut is automatic from the OD inwards.
7. Standard stock finishes carried out with step: 0.2-0.4-0.6-0.8mm
Parameter Comparison Table
| Model Type | Model | Facing Range | Mounting Range | Tool Feed Stroke | Tool Hoder | Rotation Speed |
| ID MM | OD MM | |||||
| TFP Pneumatic 2)TFS Servo Power
3)TFH Hydraulic |
O300 | 0-300 | 70-305 | 50 | Swivel Angel | 0-27r/min |
| O500 | 150-500 | 100-500 | 110 | ±30 degree | 14r/min | |
| O1000 | 500-1000 | 200-1000 | 110 | ±30 degree | 8r/min | |
| O1500 | 1000-1500 | 500-1500 | 110 | ±30 degree | 8r/min |
Machine Funtional
1. Flange Surface ( Water line )
2. Seal Groove ( RF , RTJ etc)
3. Flange Spiral Sealing Line
4. Flange concentric circle sealing line

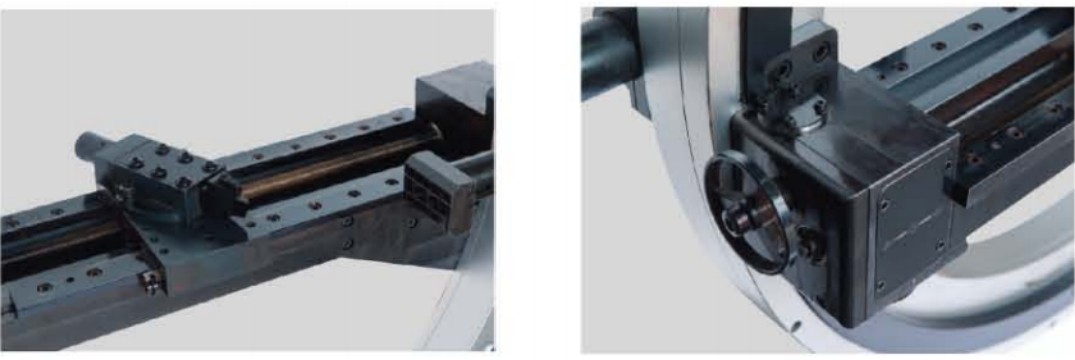

Tool slide
Compound feed mechanism

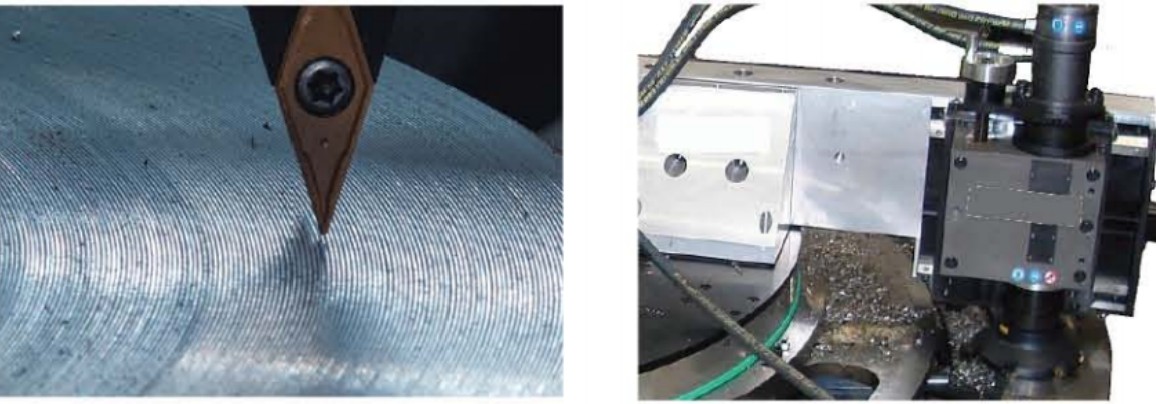

Sealing
Miling

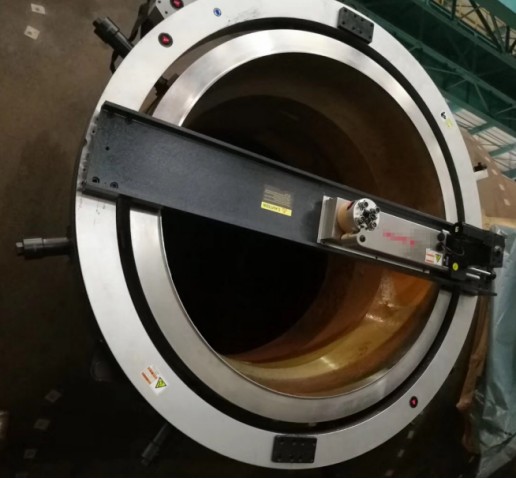

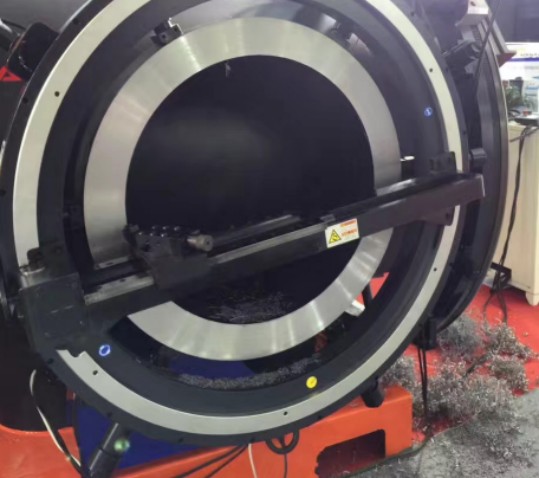

On site case
packing shipping
