Case introduction
The client company is a large shipyard in Jiangsu, specializing in the design, manufacturing, research, installation, maintenance, and sales of self-produced products for metal vessels, marine engineering specialized equipment, marine supporting equipment, steel structures, offshore oil and gas drilling and production equipment; Ship retrofitting; Research and design of drilling and production automation systems, drilling technology services, etc.

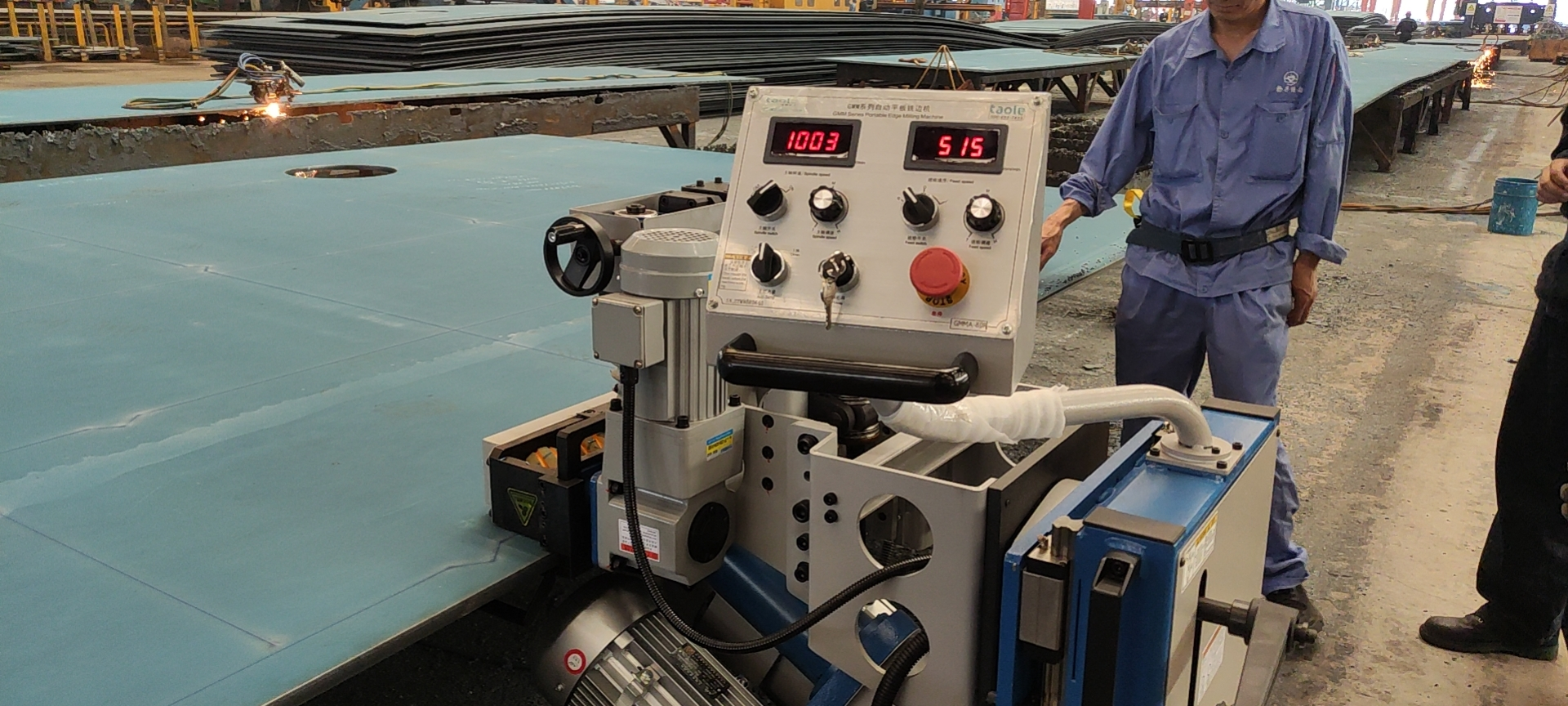

Customer's processing technology requirement: The upper and lower beveles should not be flipped over On site, a 20mm thick carbon steel plate is used to make a 12mm deep cut from the downhill slope, leaving a 8mm blunt edge and an angle of 30 degrees. The equipment can be mounted with just one cut; There is also a type of upper and lower bevel, with an uphill slope of 30 degrees and a downhill slope of 10 degrees, leaving a 1mm blunt edge in the middle seam. There are many on-site process requirements, mainly to solve the problem of not flipping the plate when making grooves on site. Our GMMA-80R automatic walking steel plate edge milling machine equipment can fully meet these process requirements of customers.

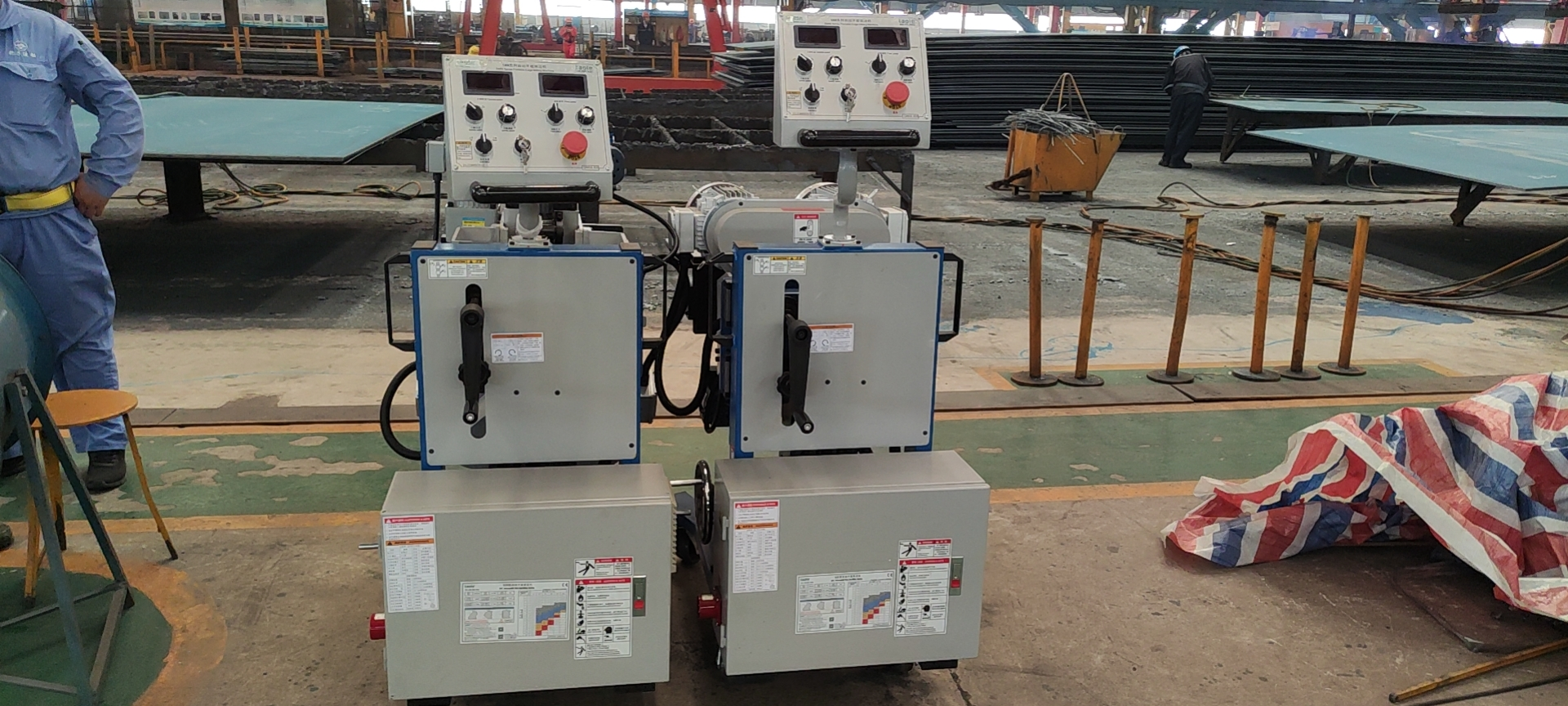

Based on the above requirements of the customer, we recommend that they use 2 Taole GMMA-80R plate beveling machines in combination:

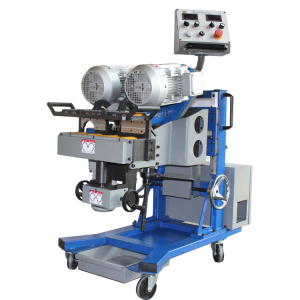

Product parameters
|
Model |
TMM-80R |
Processing board length |
>300mm |
|
Power supply |
AC 380V 50HZ |
Bevel angle |
0°~+60°Adjustable |
|
Total power |
4800w |
Single bevel width |
0~20mm |
|
Spindle speed |
750~1050r/min |
Bevel width |
0~70mm |
|
Feed Speed |
0~1500mm/min |
Blade diameter |
Φ80mm |
| Thickness of clamping plate |
6~80mm |
Number of blades |
6pcs |
| Clamping plate width |
>100mm |
Workbench height |
700*760mm |
|
Gross weight |
385kg |
Package size |
1200*750*1300mm |
Characteristics of GMMA-80R Automatic traveling edge milling machine for metal
• Reduce usage costs and alleviate labor intensity
• Cold cutting operation, with no oxidation on the groove surface
• The slope surface smoothness reaches Ra3.2-6.3
• This product is efficient and easy to operate
For further insteresting or more information required about Edge milling machine and Edge Beveler. please consult phone/whatsapp +8618717764772
email: commercial@taole.com.cn
Post time: May-16-2025
