Customer Profile:
The main business scope of a certain steel industry group company in Zhejiang includes research and development, manufacturing, and sales of stainless steel pipes, stainless steel products, fittings, elbows, flanges, valves, and accessories, as well as technological development in the field of stainless steel and special steel technology.
Customer process requirements:
The processing material is S31603 (size 12 * 1500 * 17000mm), and the processing requirements are that the bevel angle is 40 degrees, leaving a 1mm blunt edge, and the processing depth is 11mm, completed in one processing.

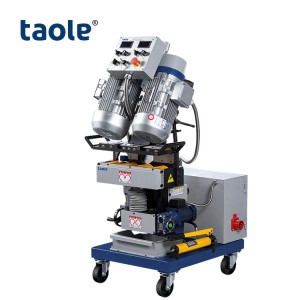

Recommend Taole TMM-80A plate edge milling machine based on customer process requirements
Product parameters
|
Product Model |
TMM-80A |
Processing board length |
>300mm |
|
Power Supply |
AC 380V 50HZ |
Bevel angle |
0~60°Adjustable |
|
Total power |
4800W |
Single Bevel width |
15~20mm |
|
Spindle speed |
750~1050r/min |
Bevel width |
0~70mm |
|
Feed Speed |
0~1500mm/min |
Blade diameter |
φ80mm |
|
Thickness of clamping plate |
6~80mm |
Number of blades |
6pcs |
|
Clamping plate width |
>80mm |
Workbench height |
700*760mm |
|
Gross weight |
280kg |
Package size |
800*690*1140mm |

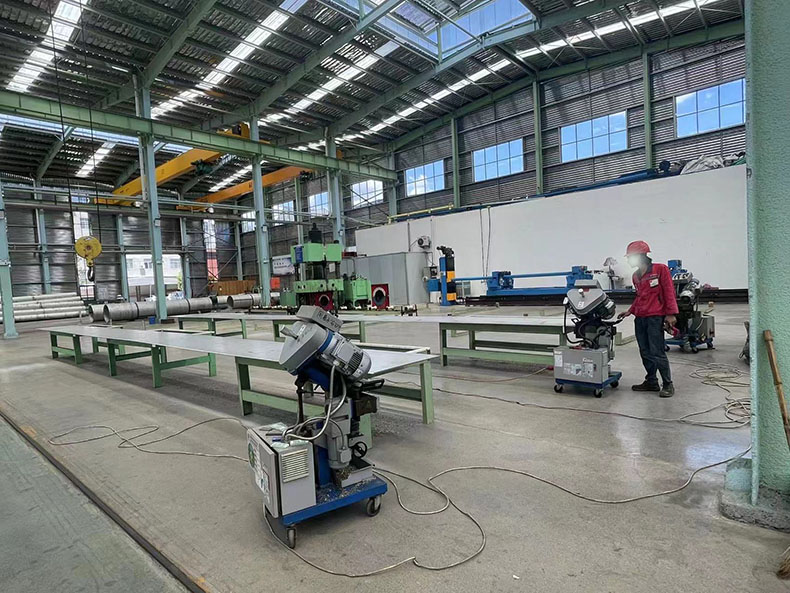

The model used is TMM-80A (automatic walking beveling machine), with dual electromechanical high power and adjustable spindle and walking speed through dual frequency conversion. It can be used for processing steel, chromium iron, fine grain steel, aluminum products, copper and various alloys. Mainly used for bevel processing operations in industries such as construction machinery, steel structures, pressure vessels, ships, aerospace, etc. On site delivery display:

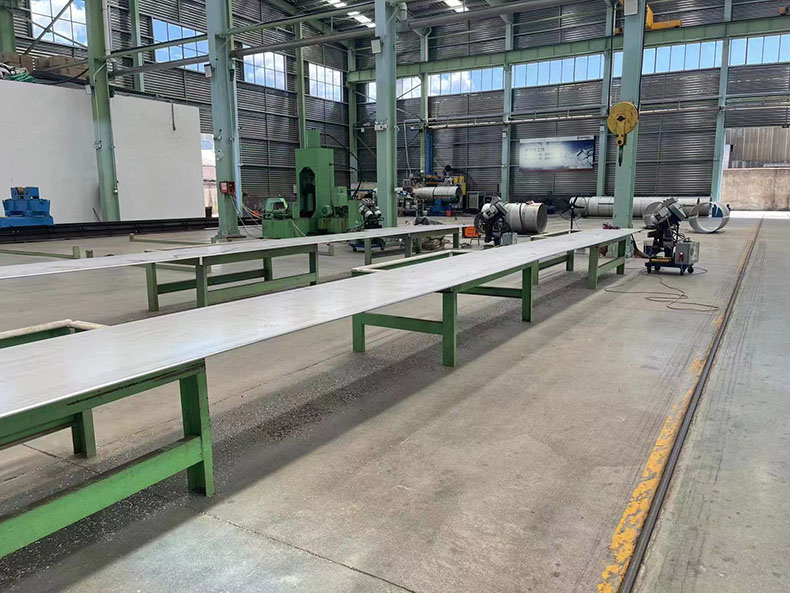

Due to the customer's daily requirement of processing 30 boards and each equipment requiring processing 10 boards per day, the proposed solution is to use the GMMA-80A (automatic walking beveling machine for metal sheet) model. One worker can simultaneously operate three machines, which not only meets production capacity but also greatly saves labor costs. The efficiency and effectiveness of on-site use have been recognized and praised by customers.

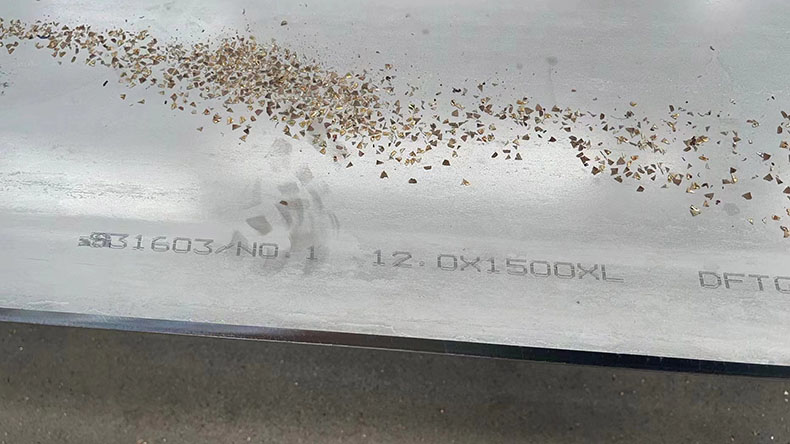

This is the on-site material S31603 (size 12 * 1500 * 17000mm), with a processing requirement of a bevel angle of 40 degrees, leaving a 1mm blunt edge, and a processing depth of 11mm. The effect is achieved after one processing.

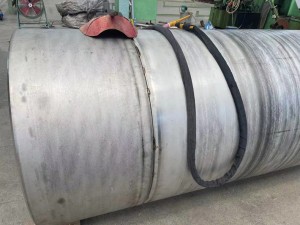

This is the display effect of the pipe installation after the steel plate is processed and the bevel is welded into shape. After using our milling machine for a period of time, customers have reported that the processing technology of steel plates has been greatly improved, with reduced processing difficulty and doubled processing efficiency.
Post time: Sep-15-2025
