A certain large-scale equipment manufacturing Co., Ltd. was established in 2011, with its enterprise address located in Pingdu City. It belongs to the general equipment manufacturing industry, and its business scope includes: B-class boilers, fixed pressure vessels (other high-pressure vessels) (A2), boiler auxiliary equipment, water treatment equipment, environmental protection equipment, heat exchange equipment, flue gas desulfurization and desulfurization equipment, noise reduction and dust removal equipment, industrial machinery equipment, marine equipment design, production, sales, and installation.

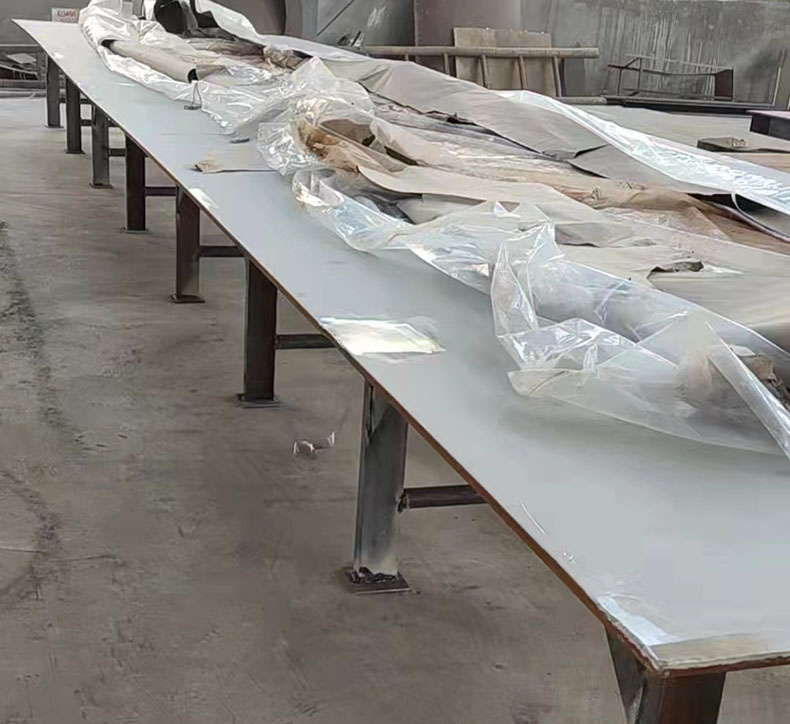

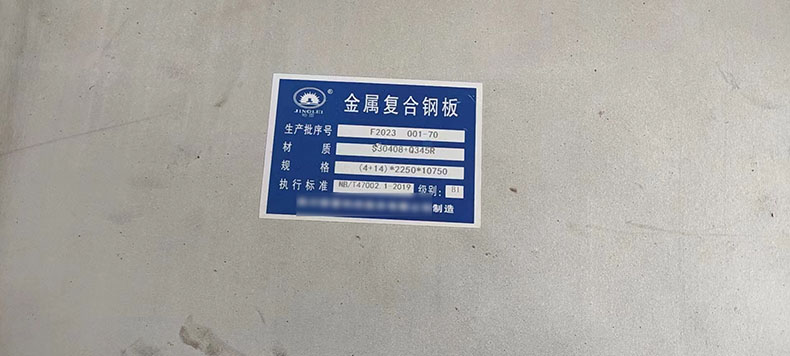

The material of the workpiece processed on site is S30408+Q345R, with a plate thickness of 4+14mm. The processing requirement is a V-shaped bevel with a V-angle of 30-45 degrees and a blunt edge of 1-2mm.
The TMM-100L beveling machine is a cutting-edge solution designed for efficient machining of S30408 and Q345R sheet metal. With the increasing demands for precision and versatility in metal processing across industries, the TMM-100L beveling machine for metal, with its superior performance, is a reliable tool for meeting these needs.

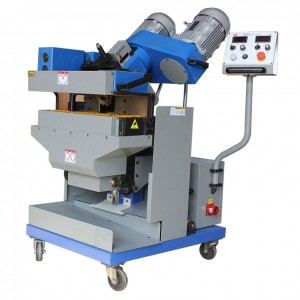

Recommend using Taole TMM-100L multi angle steel plate beveling machine. Mainly used for processing thick plate bevels and stepped bevel of composite plates, it is widely used in excessive bevel operations in pressure vessels and shipbuilding, and in fields such as petrochemicals, aerospace, and large-scale steel structure manufacturing.
Large single processing volume, with a slope width of up to 30mm, high efficiency, and the ability to remove composite layers, as well as U-shaped and J-shaped bevels.
Product parameters table
|
Power Supply |
AC 380V 50HZ |
|
Power |
6400W |
|
Cutting Speed |
0-1500mm/min |
|
Spindle speed |
750-1050r/min |
|
Feed motor speed |
1450r/min |
|
Bevel width |
0-100mm |
|
One trip slope width |
0-30mm |
|
Milling angle |
0°-90°(arbitrary adjustment) |
|
Blade diameter |
100mm |
|
Clamping thickness |
8-100mm |
|
Clamping width |
100mm |
|
Processing board length |
>300mm |
|
Product weight |
440kg |

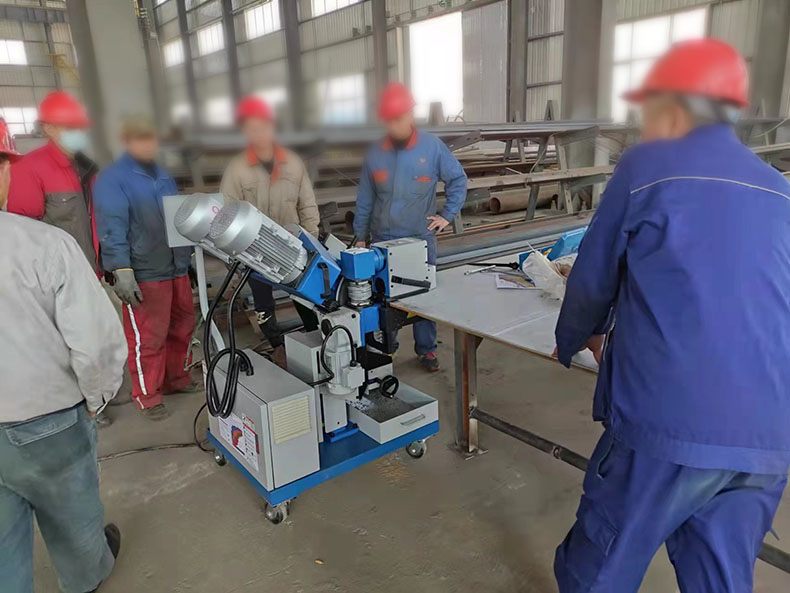

On site workbench:
Processing display:
Once formed, the processing effect meets the on-site process requirements.
