Case introduction
A certain metal company is engaged in the manufacturing of electric single beam cranes and electric hoist gantry cranes; Installation, renovation, and maintenance of bridge cranes and gantry cranes, as well as installation and maintenance of light and small lifting equipment; Manufacturing of C-class boilers; Manufacturing of Class D pressure vessels, Class D low and medium pressure vessels; Production, sales, installation, and maintenance: agricultural machinery, livestock machinery, environmental protection equipment, boiler auxiliary equipment; Processing: metal products, environmental protection equipment accessories, boiler auxiliary equipment accessories, etc.

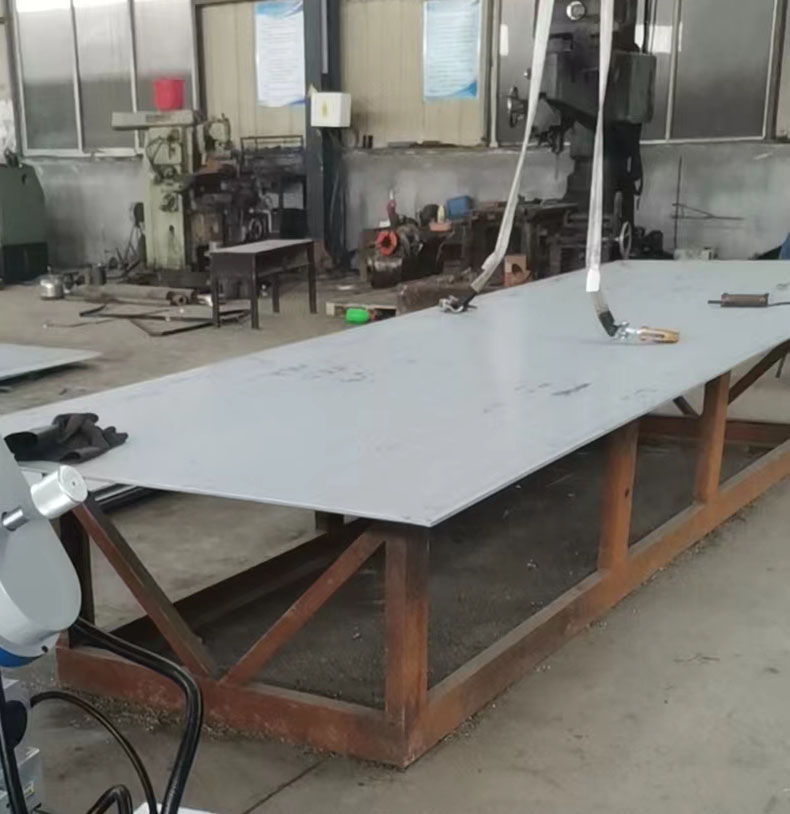

After communicating with the customer, we learned that the customer needs to process the workpiece material as Q30403, with a plate thickness of 10mm. The processing requirement is a 30 degree bevel with a 2mm blunt edge left for welding.
After communicating with the customer, we learned that the customer needs to process the workpiece material as Q30403, with a plate thickness of 10mm. The processing requirement is a 30 degree groove with a 2mm blunt edge left for welding.
Characteristic:
• Reduce usage costs and alleviate labor intensity
• Cold cutting operation, with no oxidation on the groove surface
• The slope surface smoothness reaches Ra3.2-6.3
• This product is efficient and easy to operate

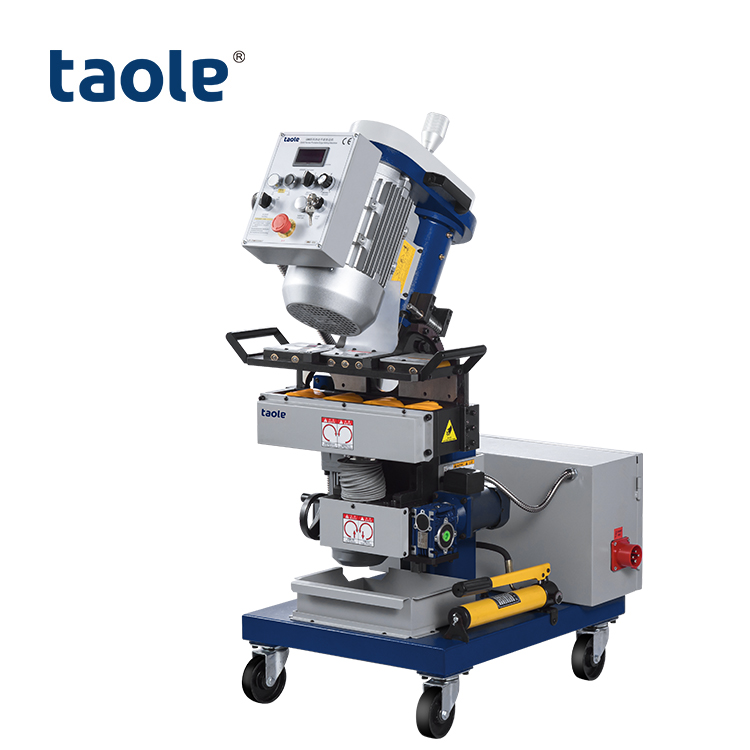

Product parameters
|
Product Model |
GMMA-60S |
Processing board length |
>300mm |
|
Power Supply |
AC 380V 50HZ |
Bevel angle |
0°~60°Adjustable |
|
Total Power |
3400W |
Single Bevel Width |
0~20mm |
|
Spindle Speed |
1050r/min |
Bevel Width |
0~45mm |
|
Feed Speed |
0~1500mm/min |
Blade Diameter |
φ63mm |
|
Thickness of clamping plate |
6~60mm |
Number of blades |
6pcs |
|
Clamping plate width |
＞80mm |
Workbench height |
700*760mm |
|
Gross weight |
255kg |
Package size |
800*690*1140mm |

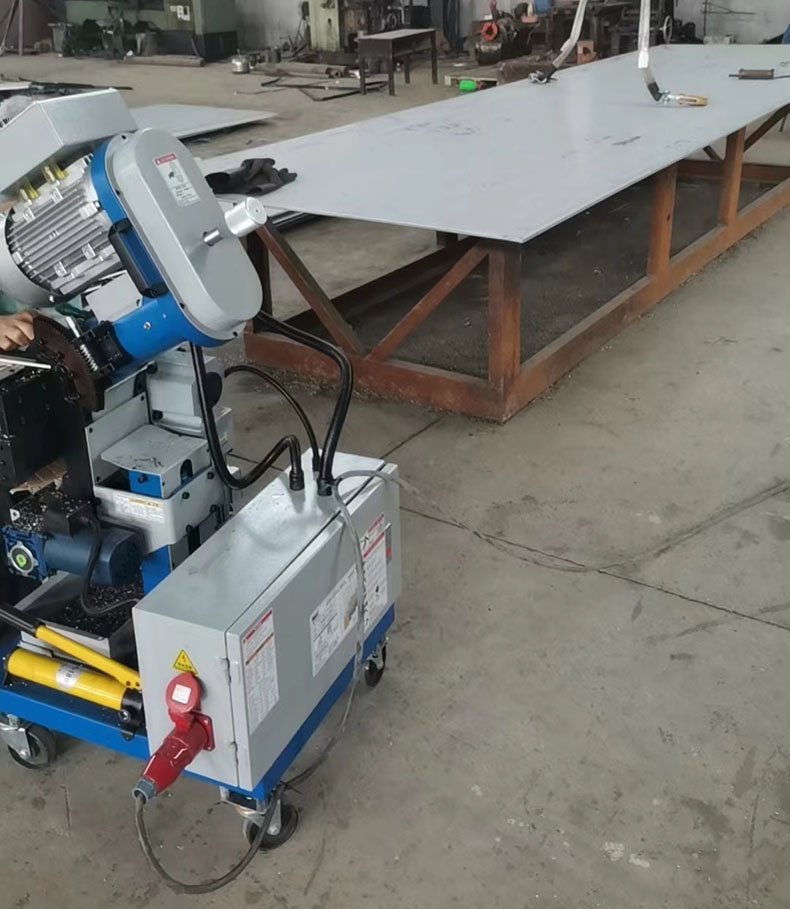

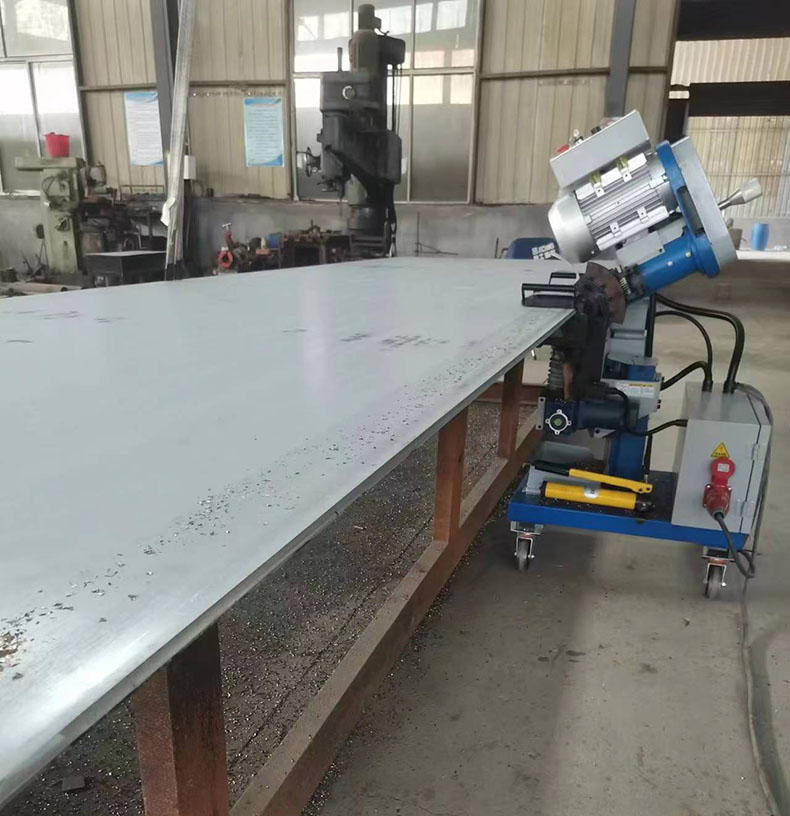

GMMA-60S steel plate beveling machine, on-site training and debugging:
