GMMA-80R bevel machine for Stainless Steel sheet and Pressure Vessel Industry

Customer Inquiry for Metal Sheet Beveling Machine from Pressure Vessel Industry

Requirements:  Beveling machine available for both Carbon Steel and Stainless Steel Metal Sheet. Thickness upto 50mm.

We ” TAOLE MACHINE“   recommend our GMMA-80A and GMMA-80R steel beveling machine as option.

GMMA-80A beveling machine  for plate thickness 6-80mm, bevel angel 0-60 degree, Double motor for higher efficiency

GMMA-80R beveling machine having same working range with GMMA-80A, But designed turnable for double side beveling.

Models GMMA-80A GMMA-80R
Power Suppy AC 380V 50HZ AC 380V 50HZ
Total Power 4920W 4920W
Spindle Speed 500~1050r/min 500-1050mm/min
Feed Speed 0~1500mm/min 0~1500mm/min
Clamp Thickness 6~80mm 6~80mm
Clamp Width >80mm >80mm
Clamp Length >300mm >300mm
Bevel Angel 0~60 degree 0~±60 degree
Singel Bevel width 0-20mm 0-20mm
Bevel Width 0-70mm 0-70mm
Cutter Diameter Dia 80mm Dia 80mm
Inserts QTY 6 pcs or 8 pcs 6 pcs or 8 pcs
Worktable Height 720-790mm 790-870mm
Worktable Size 800*800mm 1200*800mm
Clamping Way Auto Clamping Auto Clamping
Wheel Size 4 Inch STD 4 Inch Heavy duty
Machine Height Adjust Hydraulic Handwheel
Machine N.Weight 245 kgs 310 kgs
Machine G Weight 280 kgs 380 kgs
Wooden Case Size 800*690*1140mm 1100*630*1340mm



https://www.bevellingmachines.com/products/gmma-plate-edge-milling-machine/ https://www.bevellingmachines.com/products/gmma-plate-edge-milling-machine/

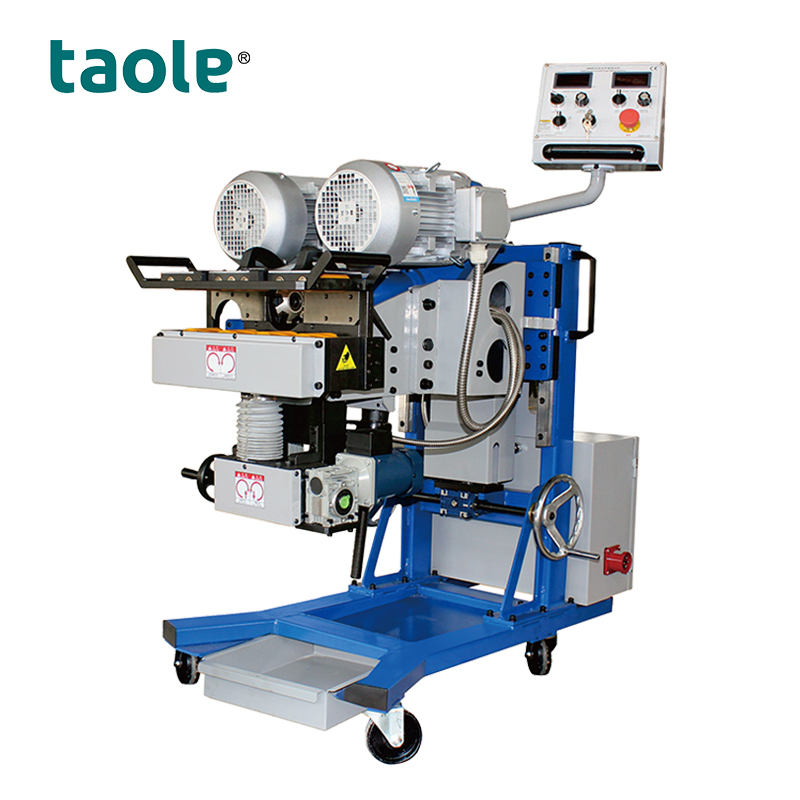

Customer Choose GMMA-80R steel plate beveling machine incase they need both top and bottom bevel for future projects.

GMMA-80R beveling machine with multi function could meet most of the bevel process for metal fabrication

GMMA-80R beveling machine site operation on Carbon Steel Plate, thickness 20mm at 30 degree

https://www.bevellingmachines.com/products/gmma-plate-edge-milling-machine/ https://www.bevellingmachines.com/products/gmma-plate-edge-milling-machine/



Pls click our below Youtube Link for Video Visiting

 https://www.youtube.com/watch?v=vsw_kenbDyc



Thanks for your attention. Pls feel free to contact us if you have any questions or confusions on the steel plate beveling machiine.  We are offering both standard machine and customized machine solution for beveling.
