Steel plate beveling machines play a vital role in heavy industry, where precision and efficiency are paramount. These machines are specifically designed to machine smooth surfaces on a variety of materials, including metals, plastics, and composites, making them indispensable tools in the manufacturing process.

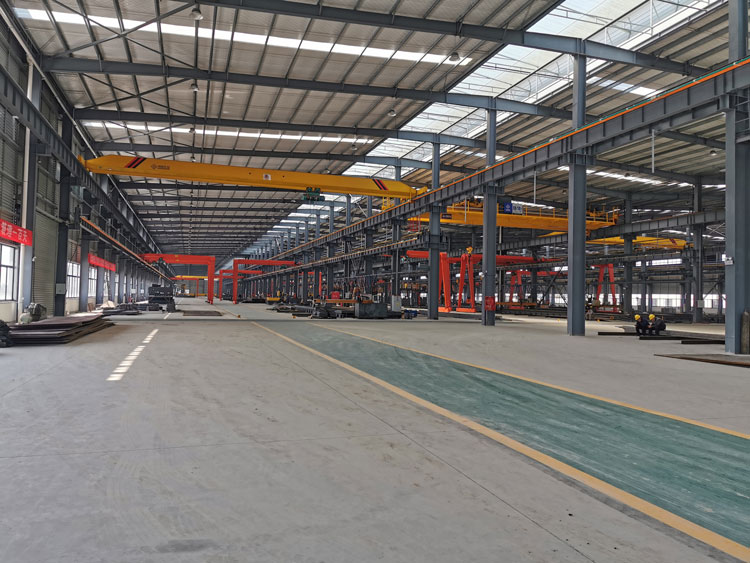

We are collaborating with a large steel structure factory in Jiangsu this time.
Customer requirements for processing sheet metal:
The customer called over the phone to explain that their company's process requires processing Q345B steel plates, which are 1500mm wide, 4000mm long, and 20-80mm thick.

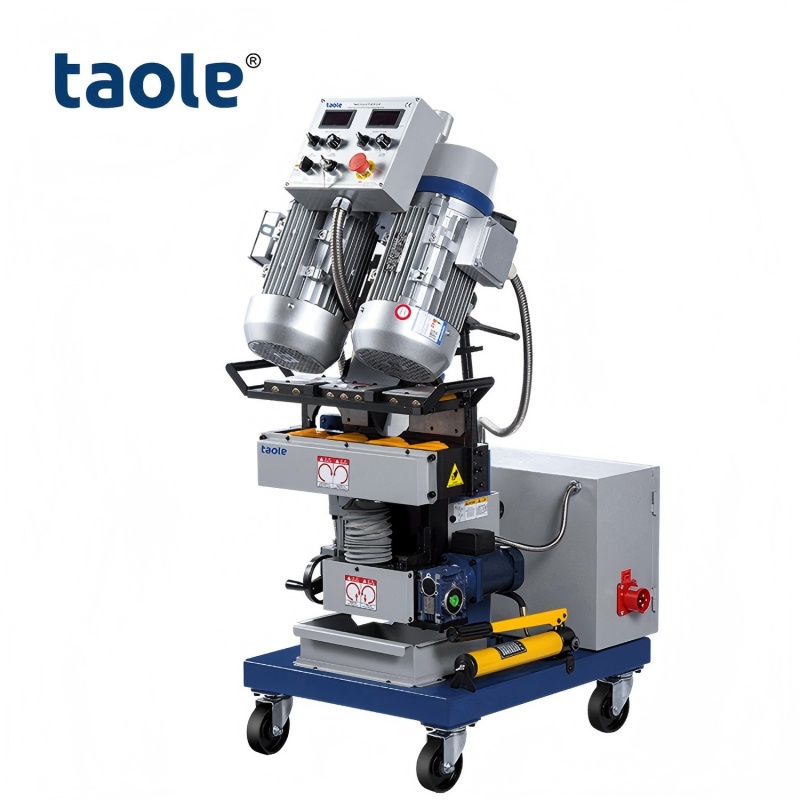

After understanding the customer's needs, we recommend the model TMM-80A edge milling machine to them.
Product Features
1. The bevel angle adjustment range is large, allowing for arbitrary adjustment within 0 to 60 degrees;
2. With a groove width of 0-70mm, this is a high-cost-performance steel plate beveling machine (steel plate beveling equipment)
3. Post-positioning of the reducer facilitates the processing of narrow plates and enhances safety;
4. The unique separate design of the control box and electrical box ensures safer operation;
5. Use a high-tooth-count milling cutter for groove milling, with single-blade cutting for smoother operation;
6. The machined groove surface roughness reaches Ra3.2-6.3, fully meeting the welding requirements for pressure vessels;
7. Compact in size and lightweight, this is a portable automatic walking edge milling machine, as well as a portable beveling machine;
8. Cold cutting beveling operation, with no oxide layer on the bevel surface;
9. Autonomous technology makes it possible for machines to continuously improve their quality.
Product parameters
|
Product Model |
TMM-80A |
Processing board length |
>300mm |
|
Power Supply |
AC 380V 50HZ |
Bevel angle |
0~60°Adjustable |
|
Total power |
4800W |
Single Bevel width |
15~20mm |
|
Spindle speed |
750~1050r/min |
Bevel width |
0~70mm |
|
Feed Speed |
0~1500mm/min |
Blade diameter |
φ80mm |
|
Thickness of clamping plate |
6~80mm |
Number of blades |
6pcs |
|
Clamping plate width |
>80mm |
Workbench height |
700*760mm |
|
Gross weight |
280kg |
Package size |
800*690*1140mm |

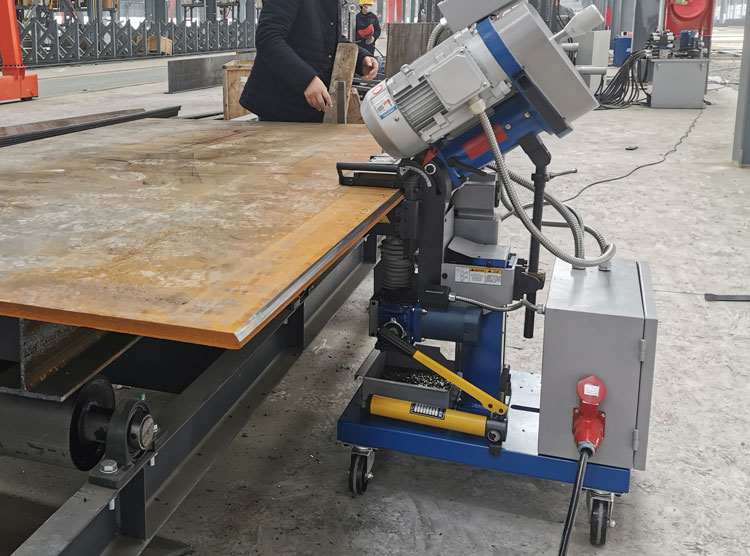

After the TMM-80A plate beveling machine was delivered to the site and workers received specialized video guidance, they successfully produced one edge with a single pass. The resulting bevel effect was highly satisfactory. The feedback provided to our company was: "We are very satisfied with the efficiency and performance of this equipment. For future use, we need to add three more units to achieve a high-efficiency processing solution that handles all four edges simultaneously."
Post time: Nov-13-2025
