GMM-V/X2000 Sheet Metal Edge Beveling Milling Machine
Short Description:
Sheet Metal Edge Milling Machine is a Special Purpose Machine developed for edge milling for sheet metal upto 100mm thick with carbide Inserts. The machine is capable of metal edge milling (cold bevel cutting) operation. GMM-V/X2000 metal edge milling machine with stroke length 2 meters for sheet edge beveling milling process. Optional of V (Single bevel) and X (Double sided bevel) with PLC operation system.
GMM-V/X2000 Sheet Metal Edge Beveling Milling Machine
Sheet Metal Edge Milling Machine is a Special Purpose Machine developed for edge milling for sheet metal upto 100mm thick with carbide cutters. The machine is capable of metal edge milling (cold bevel cutting) operation. Also milling head will be given with a tilting facility for carrying bevelling operation at any required angle.
Edge milling Machines are also called Plate Edge Bevellers or Plate Edge Beveling machines,Plate edge milling machine. This is a dedicated machine for preparing weld edge preparations by preparing various sections like V/Y/X/K/J/U/L grooves in dimensionally large plates, which cannot be accommodate by a miller.
Specifications for GMM-V/X2000 Sheet Metal Edge Beveling Milling Machine
| Model No. | GMM-V2000 | GMM-X2000 | |||||||
| Machine Stroke(max length) | 2000mm | 2000mm | |||||||
| Plate Thickness Range | 8-80mm | 8-80mm | |||||||
| Bevel Angel | Top Bevel：0-85 Degree
Bottom Bevel: NONE |
Top Bevel：0-85 Degree
Bottom Bevel:0-60 Degree |
|||||||
| Processing Speed | 800-1500mm/min | 800-1500mm/min | |||||||
| Spindle Power | 5.5kw X 1 Milling Head | 5.5kw X 2 Milling Heads | |||||||
| Pressure Foot QTY | 10 Sets | 10 Sets | |||||||
| Pressure Been Move | Automatic | Automatic | |||||||
| Table Support Move | NONE | Automatic | |||||||
| Safty Device Backside | Shield + safety door | Shield + safety door | |||||||
| Scraps Removal System | Spiral chip removal + lifting system | Spiral chip removal + lifting system | |||||||
| Hydraulic Power | 7Mpa | 7Mpa | |||||||
| Total Power | Approx18kw | Approx26kw | |||||||
| Machine Weight | Approx6 TON | Approx9 TON | |||||||
| Machine Body(LxWxH） | 5200x2300x2750（mm) | 6300x2300x2750（mm) | |||||||

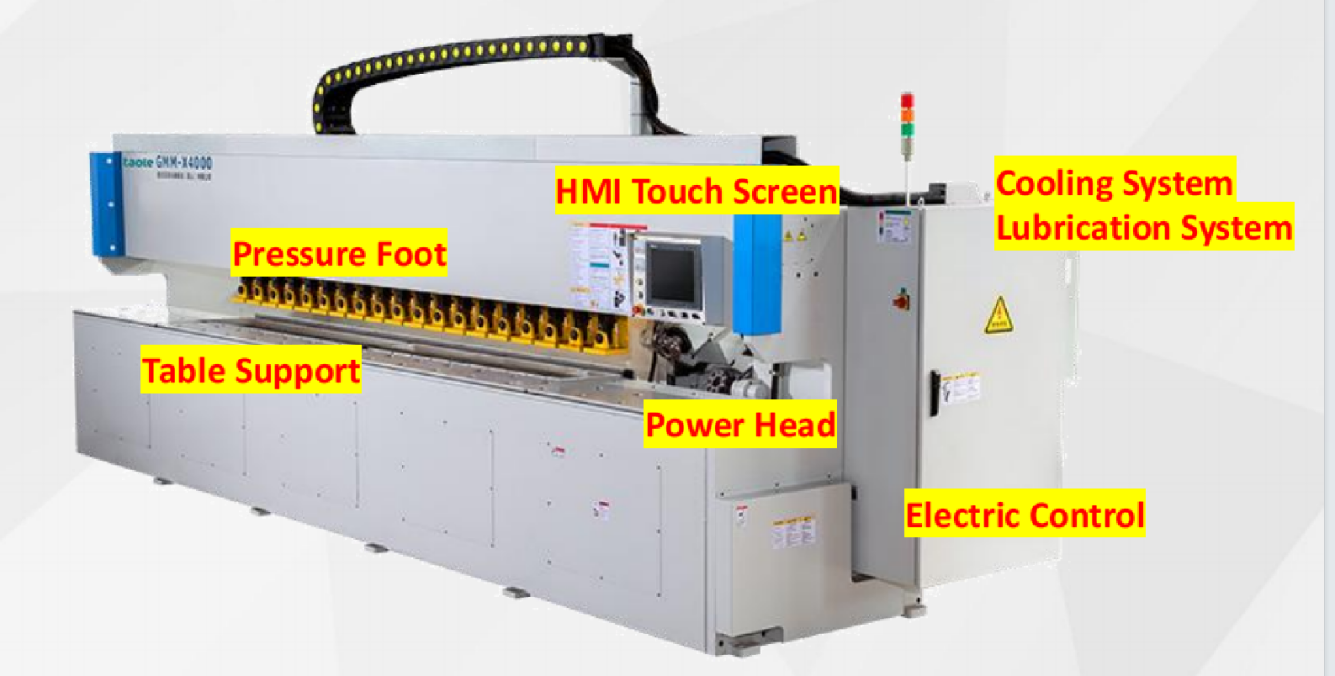

Main Features for GMM-V/X edge milling machine
- More Safe—-The working process without operator involvement, control box 24V voltage
- Much Simple—HMI man-machine interaction interface
- More Environmetal— and milling without pollution
- Higher efficiency—the processing speed of 0 ~ 2000 mm/min
- Higher precision — + / – 0.5 degrees, the straightness + / – 0.5 mm
- Cold cutting without surface oxidation and deformation
- Processing and data storage function for recall at any time
- Touch screen input data, a key to start bevel operation
- Optional groove (Bevel Joint) style in system and operate speed /Material records for fast set up
- Available for Remote system upgrade
- Optional with AR Glasses for Remote Service and technique diagnosis
