GCM-R3T metal edge rim chamfering machine

Short Description:


  • Model NO.: GCM-R3T
  • Brand Name: GIRET or TAOLE
  • Certification: CE, ISO9001:2008, SIRA
  • Place of Origin: KunShan, China
  • Delivery Date: 1-2 Months
  • Packaging: Wooden Case
  • MOQ: 1 Set
  • Product Detail

    Product Tags

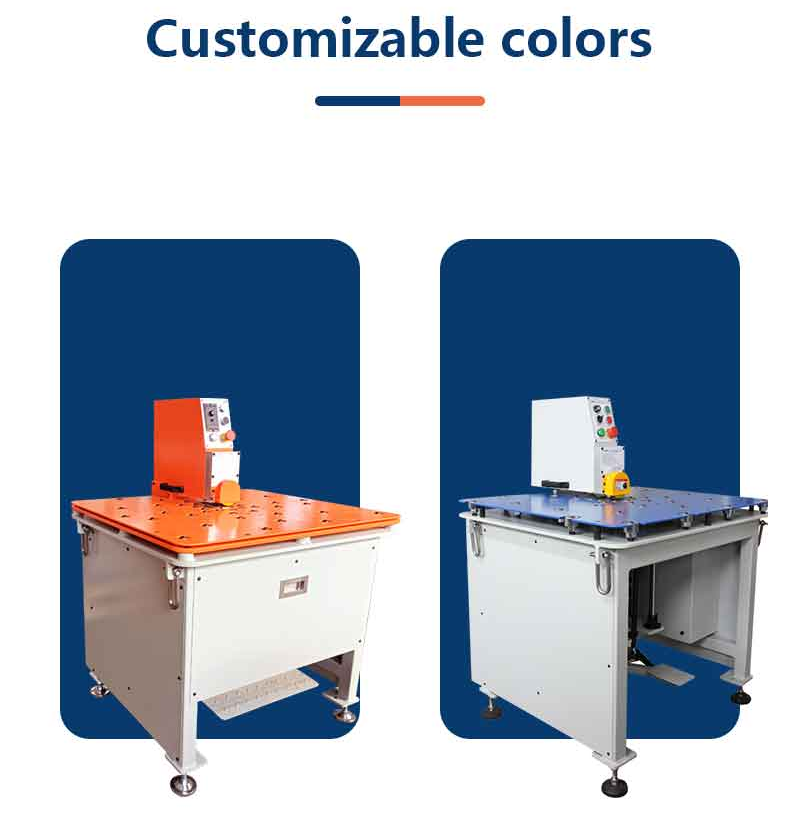

    GCM-R3T metal edge rim chamfering machine

    Products Introduction

    GCM-R3T chamfering machine mainly for edge radiu processing. Available for option R2, R3, C3,C2 as per request. It can process plates in different shape at Clamp thickness 6-40mm for rim chamfering pre-painting.

    Specifications

    Model No. GCM-R3T metal edge rim chamfering machine
    Power Supply AC 380V 50HZ
    Total Power 790W
    Spindle Speed 2800r/min
    Feed Speed 0-6000mm/min
    Clamp Thickness 6-40mm
    Process Hole Din > φ 50mm
    Process Capacity R3, R2,C3, C2
    Cutter Plate φ 40mm
    Cutter QTY 3 pcs
    Worktable Height 775mm
    Travel Space 800*900mm
    Weight N.W 260KGS  G.W 310KGS
    Packaging Size 1000*1000*1150mm

    Note: Standard Machine including  1pc cutter head + 2 set of Inserts + Tools in case + Manual Operation

    Fetures                                                                                                                                                                                                                                                                                       1.  Available for metal plate Carbon steel,stainless steel, aluminium etc

    2. Can process R3,R2,C3,C2 as per customer’s need for metal edge chamfering

    3.Cold chamfering, energy saving and Low Noise, More safe and environmental with OL protection

    4. Wide working range with Clamp thickness 6-40mm and easy adjustable

    5. Easy Operation and high efficiency
