GMMA-100D Efficiency steel beveling machine with double heads
Short Description:
GMMA-100D is one of new steel beveling machine model in 2020. It is a high efficiency option as it is loading two spindles with two milling heads. For plate thickness 6-100mm, Bevel angel 0-90 degree adjustable. High efficiency for double heads milling considered 1 of GMMA-100D working as two GMMA-60S beveling machine.

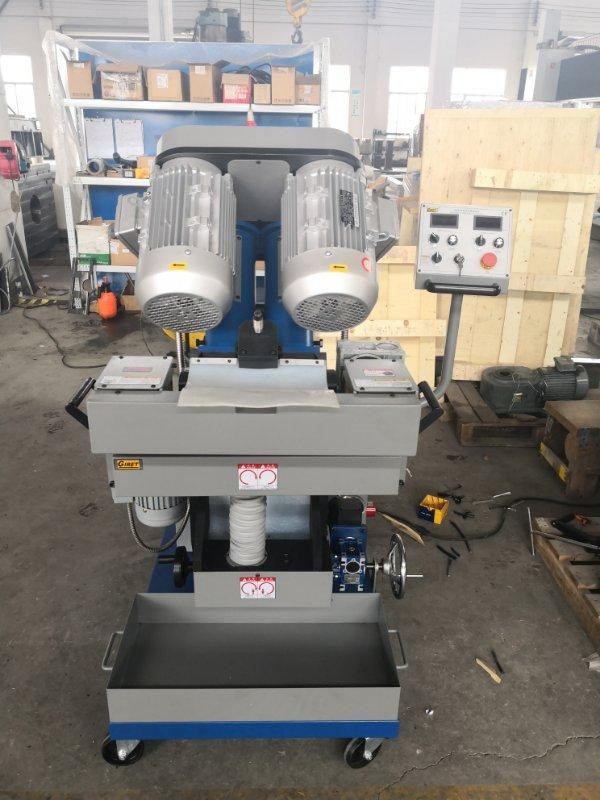

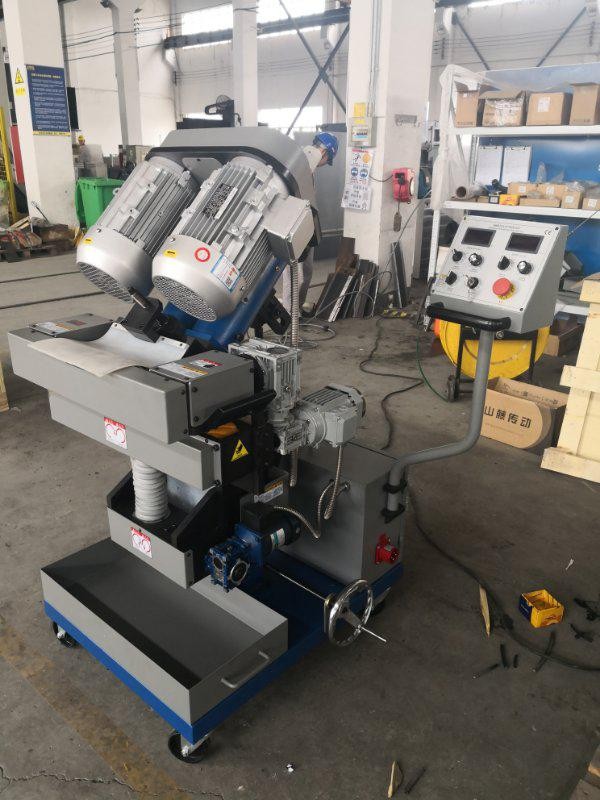

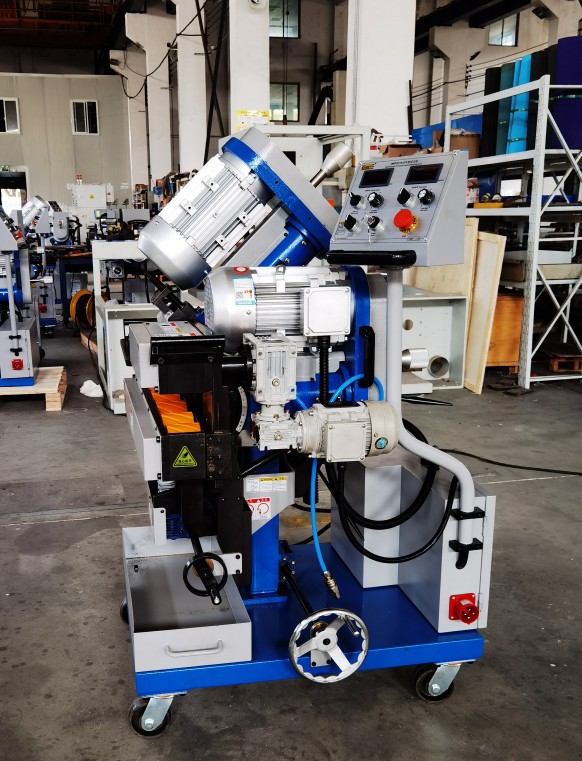

GMMA-100D Efficiency steel beveling machine with double heads
Introduction for GMMA-100D Efficiency steel beveling machine with double heads
Metal plate edge beveling milling machine mainly to do bevel cutting or clad removal / clad stripping /edge chamfering on steel plates material like mild steel, stainless steel, aluminum steel,alloy titanium,hardox,duplex etc.It is widely used for welding industry for welding preperation.
GMMA-100D is one of new steel beveling machine model in 2020. It is a high efficiency option as it is loading two spindles with two milling heads. For plate thickness 6-100mm, Bevel angel 0-90 degree adjustable. It is using 2 milling head diameter 63mm. Considered 2 sets of GMMA-60S plate beveling machine.
 |
 |
 |
 |
 |
 |
Specifications for GMMA-100D Steel plate beveling machine Double Heads
| Models | GMMA-100D steel plate beveling machine |
| Power Suppy | AC 380V 50HZ |
| Total Power | 6700W |
| Spindle Speed | 500-1050r/min |
| Feed Speed | 0~1500mm/min |
| Clamp Thickness | 6~100mm |
| Clamp Width | ≥100mm |
| Clamp Length | ≥400mm |
| Bevel Angel | 0~90 degree |

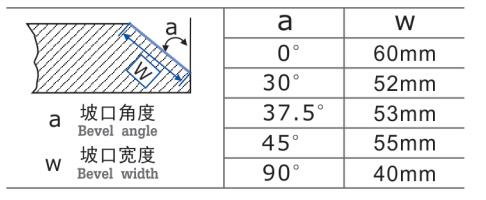

| Singel Bevel width | 0-30mm |
| Bevel Width | 0-60mm |
| Cutter Diameter | 2 * Dia 63mm |
| Inserts QTY | 2 *6 pcs |
| Worktable Height | 810-870m’m |
| Suggest Table Height | 830m’m |
| Worktable Size | 1200*1200m’m |
| Clamping Way | Auto Clamping |
| Wheel Size | 4 Inch Heavy duty |
| Machine Height Adjust | Handwheel |
| Machine N.Weight | 430 kgs |
| Machine G Weight | 490 kgs |
| Wooden Case Size | 950*1180*1430mm |
GMMA-100D Steel plate beveling machine Double Heads Standard packing list and wooden case packaging.

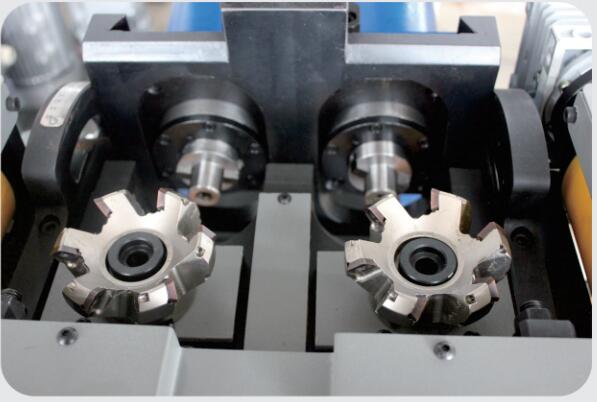

Note: GMMA-100D steel beveling machine using 2 pcs of milling head Diameter 63mm and milling inserts.
 |
 |
Advantages for GMMA-100D Efficiency steel beveling machine with double heads
1) Automatic walking type beveling machine will walk along with plate edge for bevel cutting
2) Beveling machines with universal wheels for easy moving and storage
3) Cold cutting to aovid any oxide layer by using milling head and inserts for higher performance on surface Ra 3.2-6.3 . It can do welding directly after bevel cutting. Milling inserts are market standard.
4) Wide working range for plate clamping thickness and bevel angels adjustable.
5) Unique design with reducer setting behand more safe.

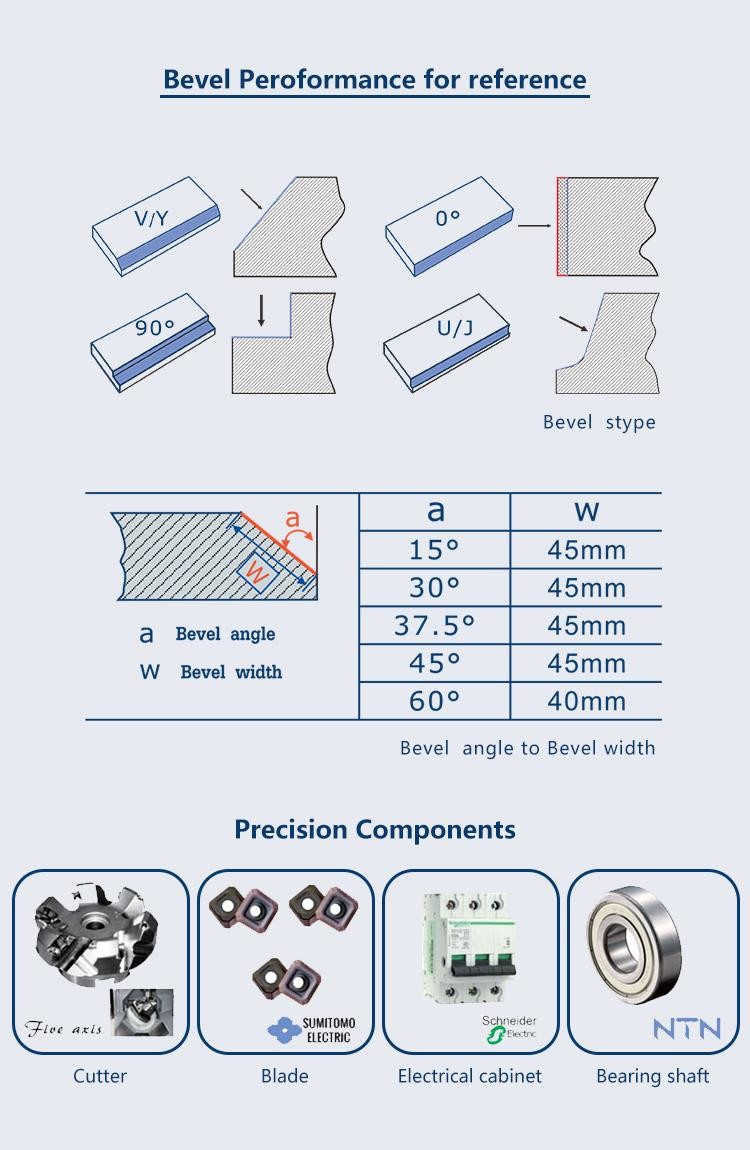

6) Available for multi bevel joint type and easy operation.
7) High efficiency beveling speed reach 0.4~1.2 meters per min.
8) Automatic Clamping system and hand wheel setting for slight adjustment.
Aplication for GMMA-100D Efficiency steel beveling machine with double heads
Plate beveling machine are widely applicated for all welding industry. Such as
1) Steel Construction 2) Shipbuilding Industry 3) Pressure Vessels 4) Welding Manufacturing
5) Construction Machinery & Metallurgy
Site performance picture for reference by GMMA-100D Efficiency steel beveling machine with double heads

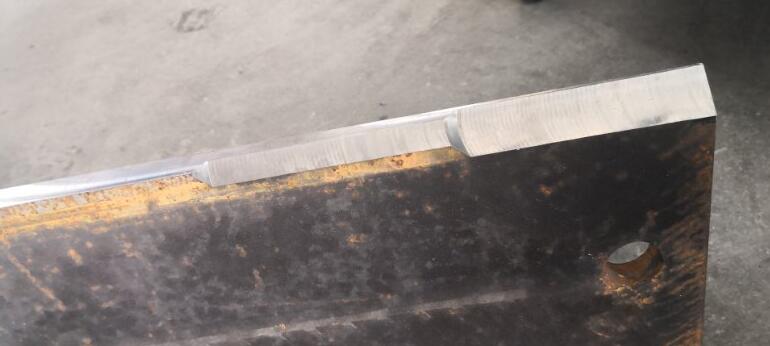

GMMA-100D with 2 milling heads. It is considered 2 GMMA-60S plate beveling machine. Means you can setting first milling heads as first cut, Second milling heads as second cut. Below metal plate edge bevel cutting by GMMA-100D steel plate beveling machine. GMMA-100D is a option that 1 machine achieve 2 machine job for higher efficiency. If you need bigger bevel size, You may consider at GMMA-100L beveling machine.
 |
 |
