GMM-80AY remote control plate beveling machine for stainless steel plates
Short Description:
GMM-80AY beveling machine with 2 motors for plate thickness 6-80mm, bevel angel 0-60 degree, Max width could reach 70mm. It is automatic waling along with plate edge and speed adjustable. Rubber Roller for plate feeding availed for both small plate and big plates. Widely used for carbon steel, stainless steel and alloy steel metal sheets for welding preparation.
Introduction for GMM-80AY remote control plate beveling machine for stainless steel plates.
Metal plate edge beveling machine mainly to do bevel cutting or clad removal / clad stripping on steel plates material like mild steel, stainless steel, aluminum steel, alloy titanium,hardox,duplex etc. It is widely used for welding industry for welding preparation.
GMMA-80AY remote control plate beveling machine for stainless steel plates with 2 milling heads, Plate thickness from 6 to 80mm, bevel angel from 0 to 60 degree adjustable, automatic walking along with plate edge, Rubber Roller for plate feeding and walking, Easy operation with auto clamping system. Max bevel width could reach 70mm. Wildy used for Carbon Steel plates, stainless steel plates and alloy steel plates beveling with high efficiency for saving cost and time.
GMM-80AY remote control plate beveling machine for stainless steel plates machine bevel joint and superiority.
 |
 |

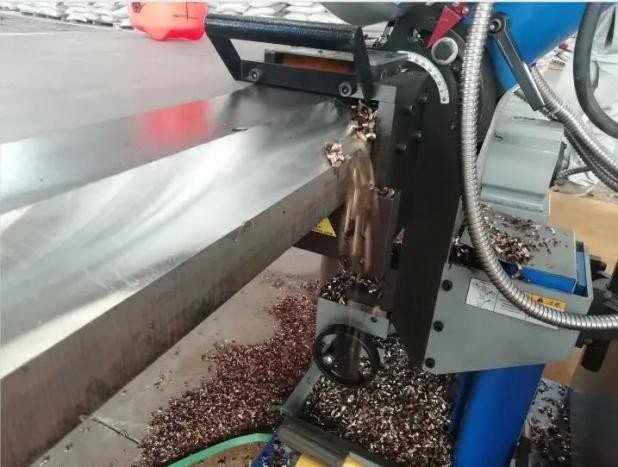

Proofing V-shaped groove

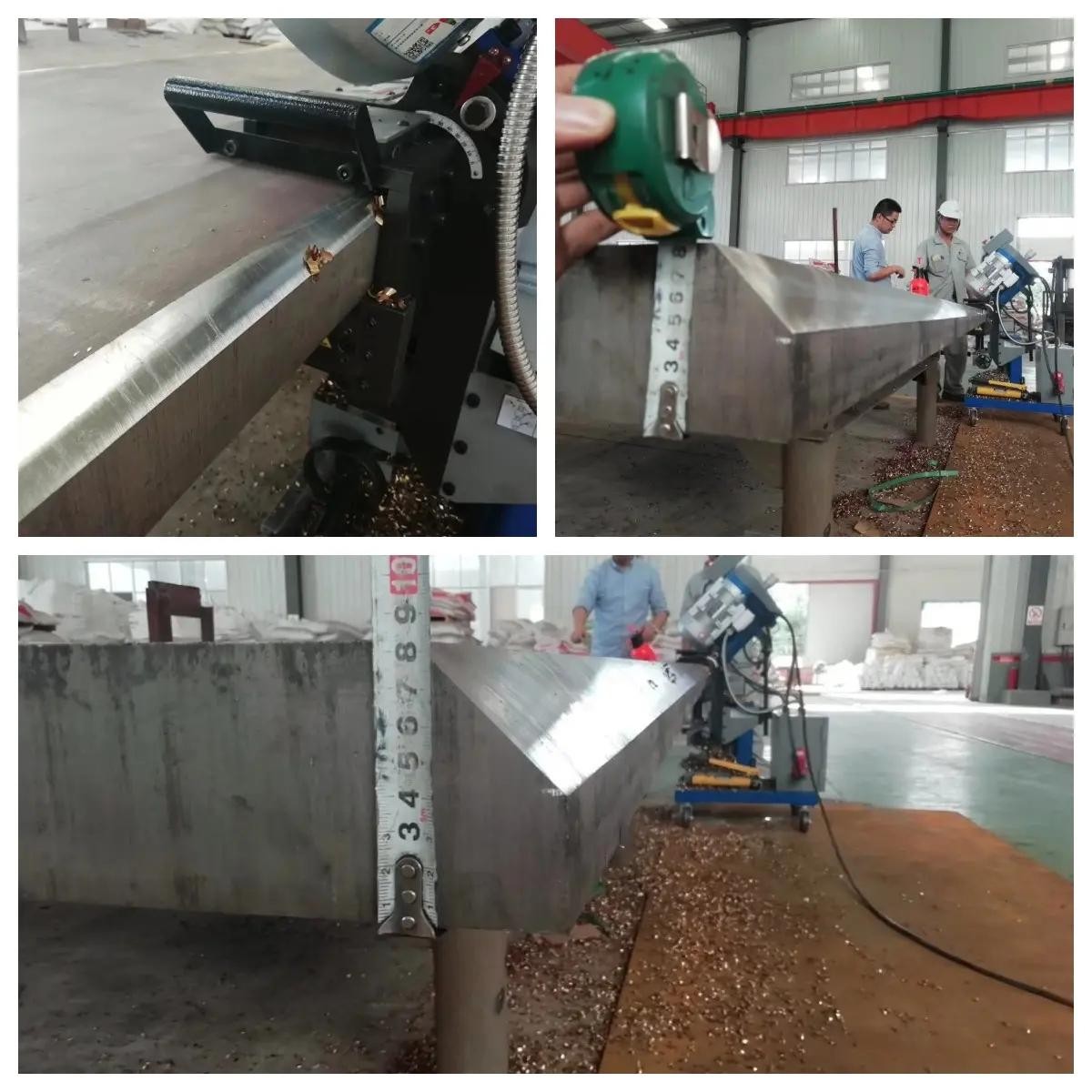

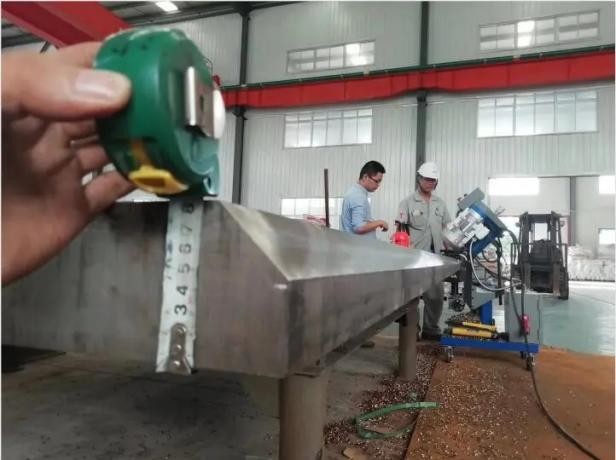

80mm plate thickness presentation
Parameters for GMM-80AY remote control plate beveling machine for stainless steel plates.
| Models | GMM-80AY remote control plate beveling machine for stainless steel plates |
| Power Supply | AC 380V 50HZ |
| Total Power | 4920W |
| Spindle Speed | 500~1050r/min |
| Feed Speed | 0~1500mm/min |
| Clamp Thickness | 6~80mm |
| Clamp Width | >80mm |
| Clamp Length | >300mm |
| Bevel Angel | 0~60 degree |
| Singel Bevel width | 0-20mm |
| Bevel Width | 0-70mm |
| Cutter Diameter | Dia 80mm |
| Inserts QTY | 6 pcs |
| Worktable Height | 700-760mm |
| Suggest Table Height | 730mm |
| Worktable Size | 800*800mm |
| Clamping Way | Auto Clamping |
| Wheel Size | 4 Inch STD |
| Machine Height Adjust | Hydraulic |
| Machine N.Weight | 245 kgs |
| Machine G Weight | 280 kgs |
| Wooden Case Size | 800*690*1140mm |
GMM-80AY remote control plate beveling machine for stainless steel plates standard packing list and wooden cases packing.
Note: Machines is using milling head diameter 80mm with 6 teethes.
Advantages for GMM-80AY remote control plate beveling machine for stainless steel plates
1) Automatic walking type beveling machine will walk along with plate edge for bevel cutting
2) Beveling machines with universal wheels for easy moving and storage
3) Cold cutting to aovid any oxide layer by using milling head and inserts for higher performance on surface Ra 3.2-6.3 . It can do welding directly after bevel cutting. Milling inserts are market standard.
4) Wide working range for plate clamping thickness and bevel angels adjustable.
5) Unique design with reducer setting behand more safe.
6) Available for multi bevel joint type and easy operation.
7) High efficiency beveling speed reach 0.4~1.2 meters per min.
8) Automatic Clamping system and hand wheel setting for slight adjustment.
Application for GMM-80AY remote control plate beveling machine for stainless steel plates.
Plate beveling machine are widely applicated for all welding industry. Such as
1) Steel Construction 2) Shipbuilding Industry 3) Pressure Vessels 4) Welding Manufacturing
5) Construction Machinery & Metallurgy
 |
 |

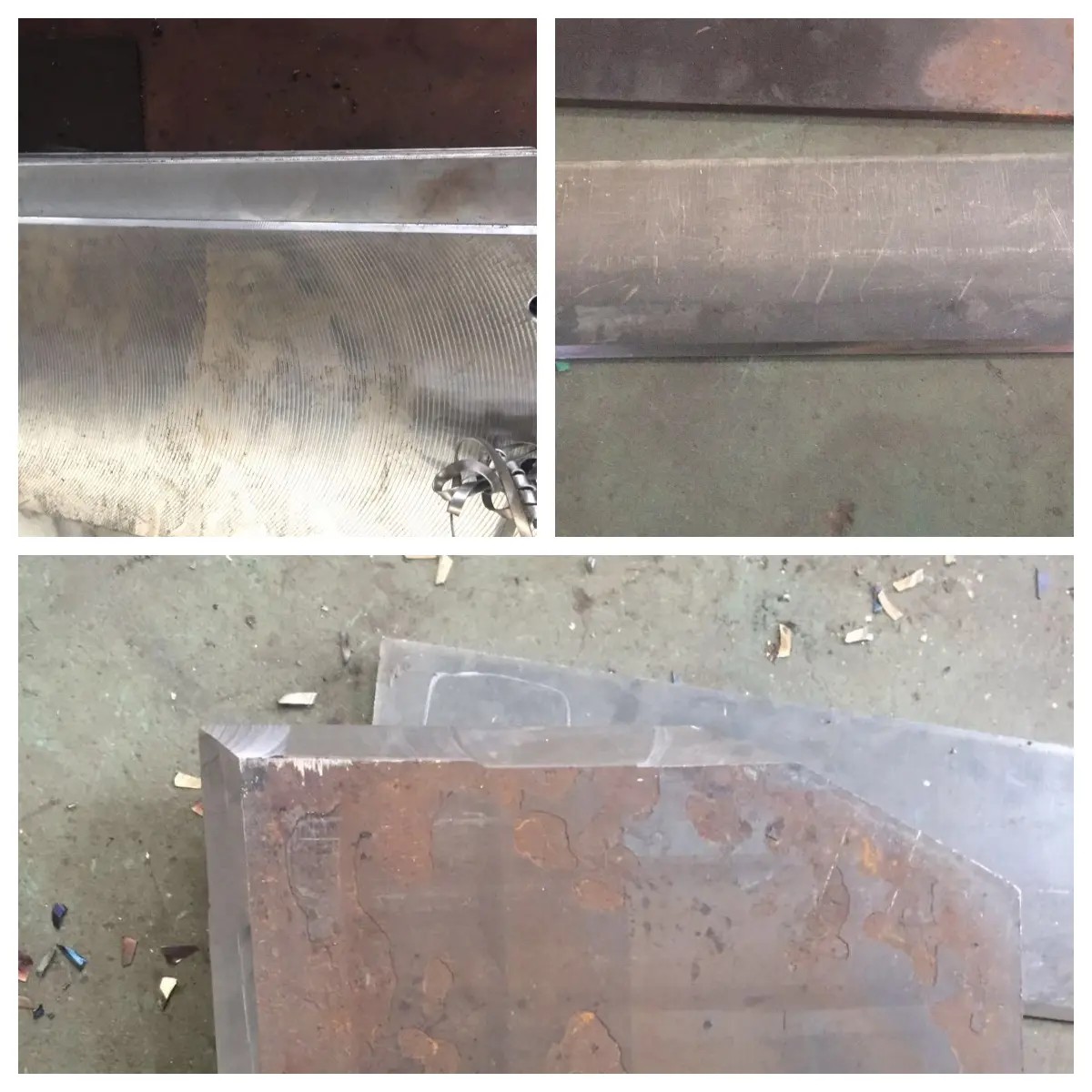

Bevel Surface performance after bevel cutting by GMM-80AY remote control plate beveling machine for stainless steel plates
GMMA-80AY model with 2 models and wide working range widely used for pressure vessels, shipbuilding and construction machinery industries. Plate thickness up to 80mm. Mainly for top bevel cutting. Normally will be combination solution with GMMA-80R. So below solutions for double side beveling.
1) GMM-80AY plate beveler for Top bevel and GMMA-80R plate beveler for bottom bevel
2) GMM-80AY plate beveler for top bevel and GMMA-60R plate beveler for bottom bevel
3) GMM-80AY plate beveler for top bevel and GMMA-60U plate beveler for bottom bevel
 |
 |
