Application Case Study of GBM-16D-R Double sided Steel Plate beveling Machine in Heavy Industry

Case introduction

The company we are collaborating with this time is Changsha Heavy Industry Machinery Co., Ltd., which is mainly engaged in the manufacturing of metal structures and construction machinery.

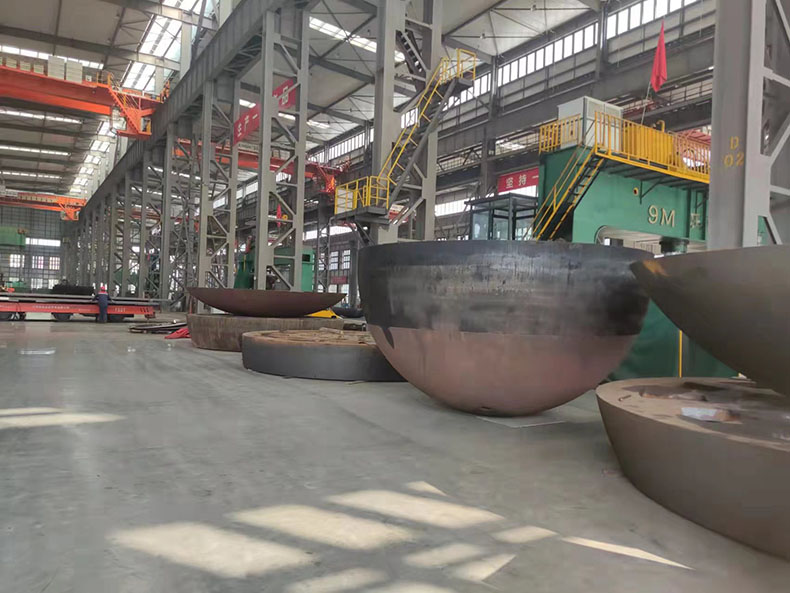

Partial workshop environment display


We arrived at the site and learned that the main workpieces processed on site are H-beam belly plates with thicknesses ranging from 12-30mm. If required by the process, there are upper V-shaped beveles, upper and lower X-shaped beveles, etc.


Based on the customer's situation, we recommend that they choose the Taole TBM-16D-R double-sided steel plate beveling machine. TBM-16D-R automatic steel plate beveling machine, with a speed between 2-2.5m/min, clamps steel plates with a thickness between 9-40mm. The slope width can reach 16mm in a single feed processing, and can be processed up to 28mm multiple times. The beveling angle can be adjusted freely between 25 ° and 45 °, and it also has a head flipping function, which does not require flipping and makes it easy to make downhill slopes, greatly reducing the labor intensity of the operation and improving processing efficiency. Widely used for bevel processing of H-shaped steel belly plates and box columns and other plates.



Product parameters

Power Supply

AC 380V 50HZ

Single bevel width

0~16mm

Total Power

1500W

Bevel width

0~28mm

Motor speed:

1450r/min

Blade diameter

Ф115mm

Feed rate:

1.2~1.6m/min

Number of blades

1pcs

Thickness of clamping plate

9~40min

Workbench height:

700mm

Clamping plate width

>115mm

Walking area

800*800mm

Processing board length

>100mm

Net Weight

315kg

Bevel angle:

25°~45°Adiustable

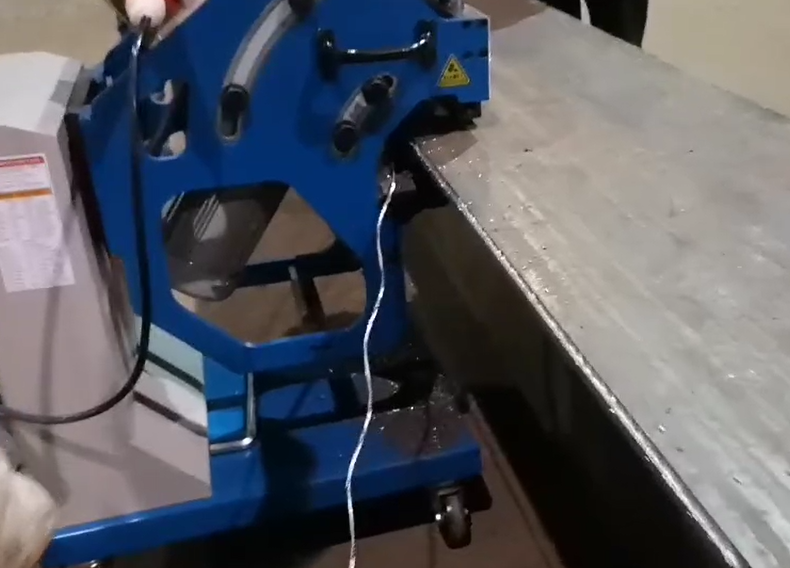

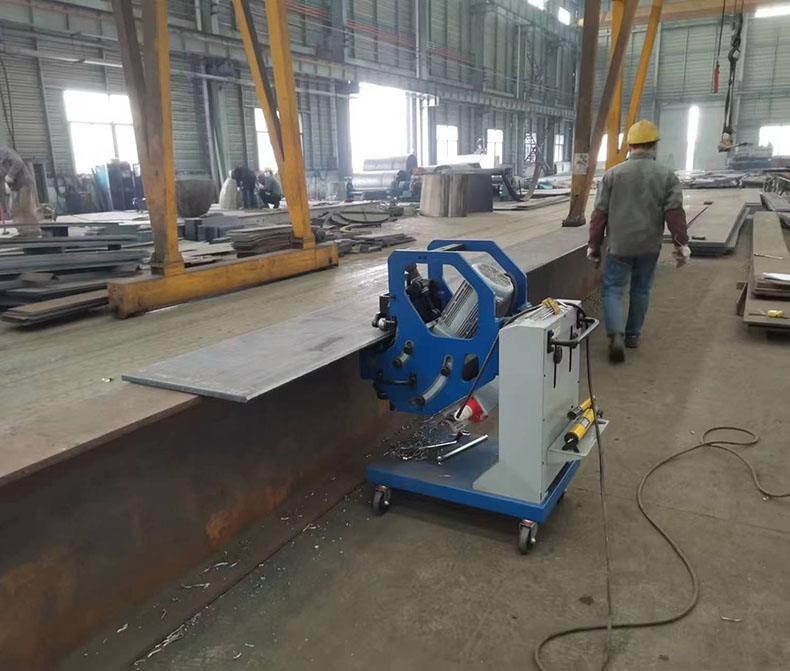

The equipment arrives at the site and processes samples of different specifications of boards

Steel Plate beveling Machine in Heavy Industry
steel plate beveling machine

Display of the effect after processing the large board:

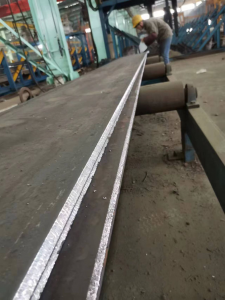

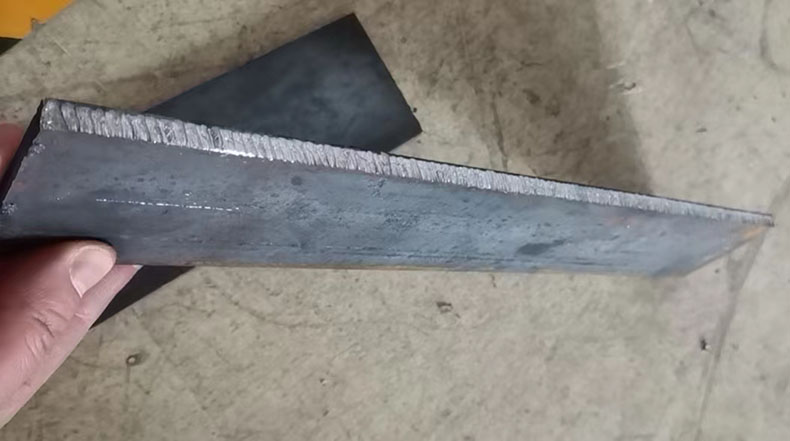

Display of the effect after small board processing:
