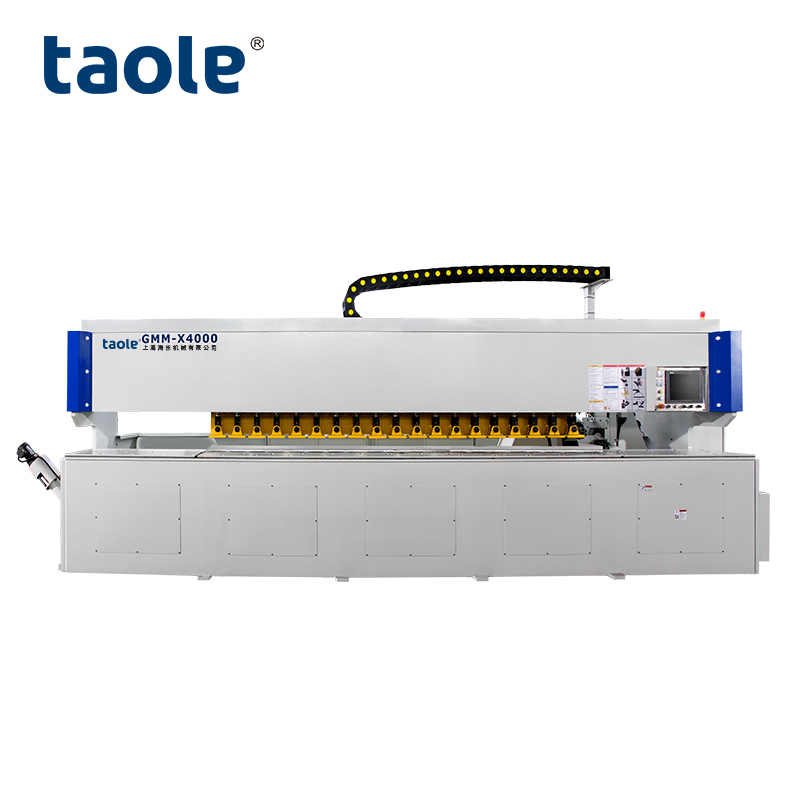

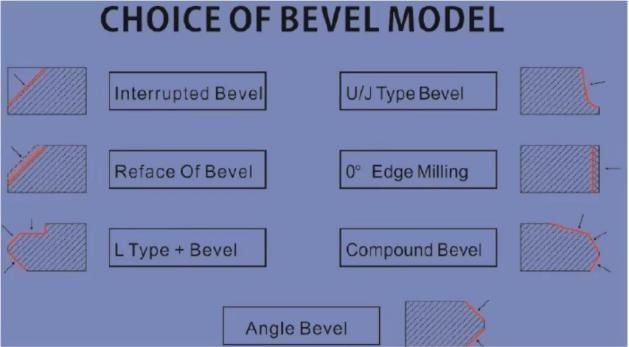

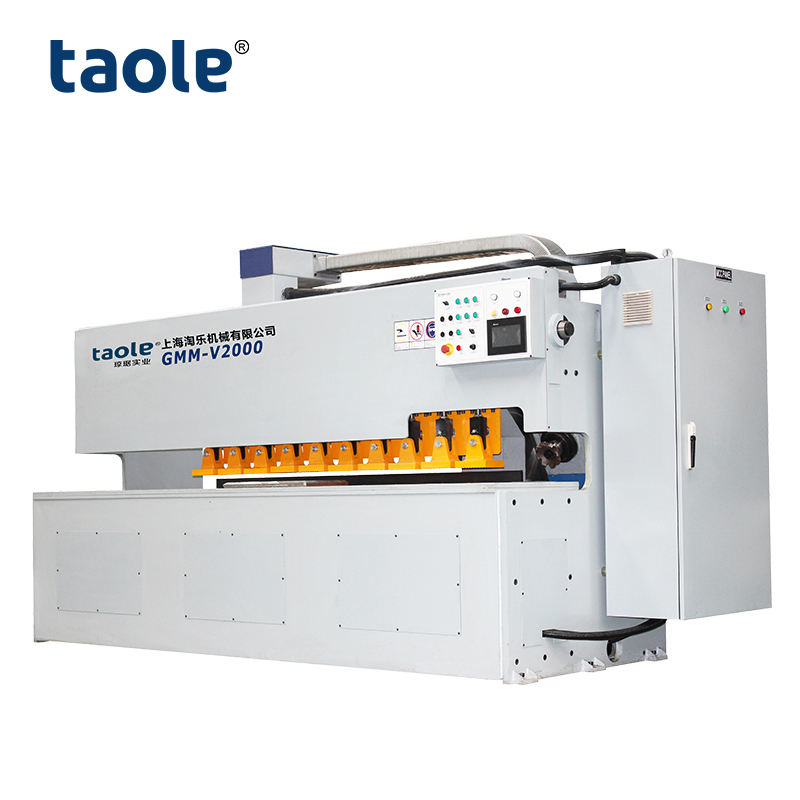

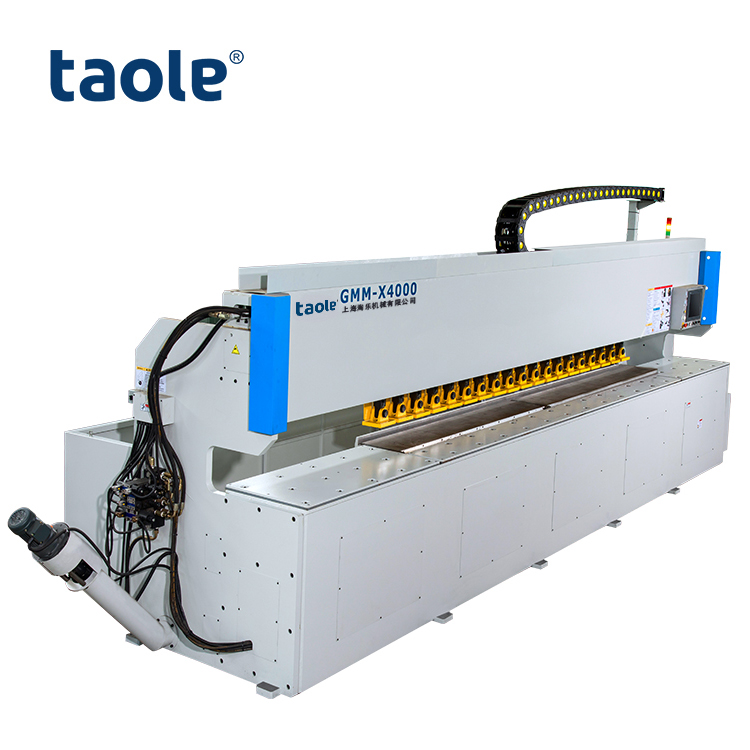

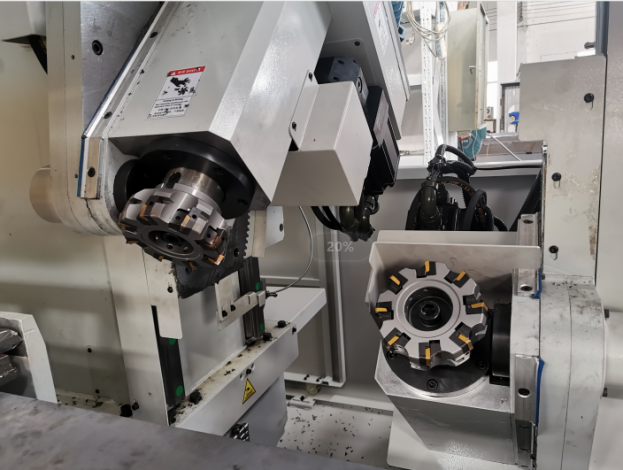

The automatic edge milling machine market is experiencing rapid growth as manufacturers demand higher precision and efficiency in metal plate processing. GMM-VX series CNC plate edge milling machines, offering stroke lengths from 2000mm to 4000mm. These automatic edge milling machine systems feature PLC control with HMI interfaces, enabling one-button operation and processing speeds up to 2000mm/min. The GMM-VX2000, VX3000, and VX4000 models handle plate thicknesses from 6mm to 100mm, delivering bevel angles from 0-85 degrees with accuracy of ±0.5 degree. Cold cutting technology eliminates oxidation and deformation, while independent 5.5KW-7.5KW spindles with carbide inserts ensure clean, precise edges for aerospace, shipbuilding, pressure vessel, and power plant applications. With automatic positioning, data storage, and remote upgrade capabilities, CNC plate beveling milling machines represent the future of automated weld preparation.
Related Products:
GMM-VX4000 CNC Edge Milling Machine：
https://www.bevellingmachines.com/gmm-vx4000-cnc-edge-milling-machine.html
FAQ
1. What is an automatic edge milling machine? A CNC-controlled machine that automatically mills bevels on metal plate edges using carbide inserts, with PLC systems for precise, repeatable operation.
2. What plate sizes can Taole's edge milling machines process? Models range from 2000mm to 4000mm stroke length, handling plate thicknesses from 6mm to 100mm with single or double head configurations.
3. Which industries use automatic edge milling machines? Aerospace, automotive, shipbuilding, pressure vessel manufacturing, boiler production, and power plant construction.
