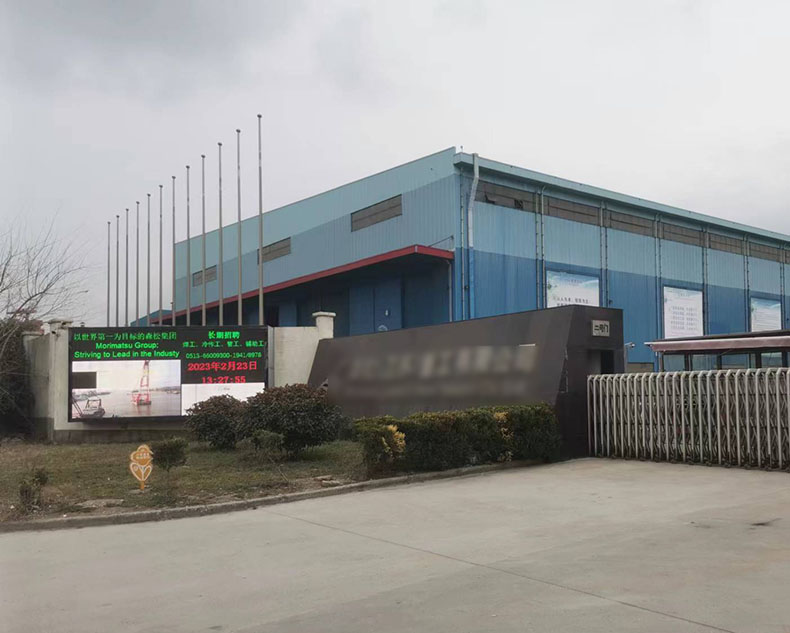

A certain heavy industry Co., Ltd., established on January 1, 1970, is an enterprise mainly engaged in the manufacturing of specialized equipment.
The business scope includes the development, design, production, and installation of desulfurization, denitrification, and bag filter equipment for thermal power plants, complete sets of wet desulfurization and denitrification equipment for coal-fired power plants, large-scale coal chemical equipment, key production equipment for industrial biological products such as amino acids, enzyme preparations, and food additives, complete sets of equipment for traditional Chinese medicine extraction and processing, advanced pharmaceutical equipment, large-scale reaction equipment, petrochemical equipment, non-ferrous metal wet metallurgy equipment, seawater desalination and circulating cooling water technology and complete sets of equipment with a daily output of 100000 cubic meters or more, low-temperature multi effect distillation seawater desalination equipment with a daily output of more than 20000 tons, engineering equipment and related skids for petroleum exploration, drilling, and gathering floating production system equipment manufacturing.
On site processing effect display: The processed workpiece material is mostly Q345RN, with a plate thickness of 24mm. The processing requirements are V-shaped bevel, V-angle of 30-45 degrees, and blunt edge of 1-2mm.

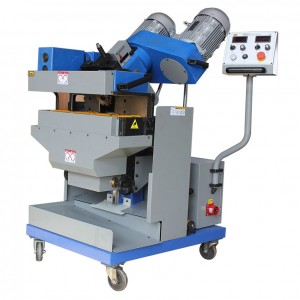

Recommend using Taole TMM-100L multi angle steel plate beveling machine. Mainly used for processing thick plate bevels and stepped bevels of composite plates, it is widely used in excessive bevel operations in pressure vessels and shipbuilding, and in fields such as petrochemicals, aerospace, and large-scale steel structure manufacturing.
Product parameters table
|
Power Supply |
AC 380V 50HZ |
|
Power |
6400W |
|
Cutting Speed |
0-1500mm/min |
|
Spindle speed |
750-1050r/min |
|
Feed motor speed |
1450r/min |
|
Bevel width |
0-100mm |
|
One trip slope width |
0-30mm |
|
Milling angle |
0°-90°(arbitrary adjustment) |
|
Blade diameter |
100mm |
|
Clamping thickness |
8-100mm |
|
Clamping width |
100mm |
|
Processing board length |
>300mm |
|
Product weight |
440kg |

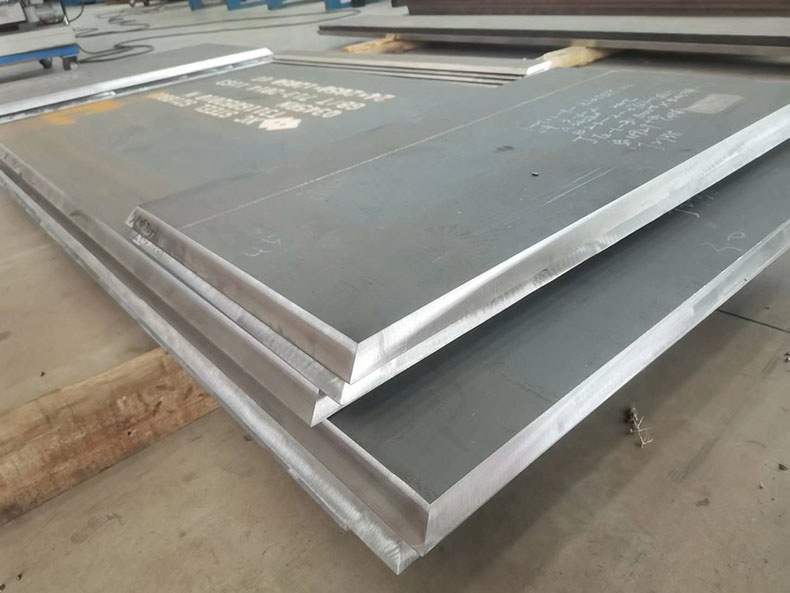

On site processing effect display:

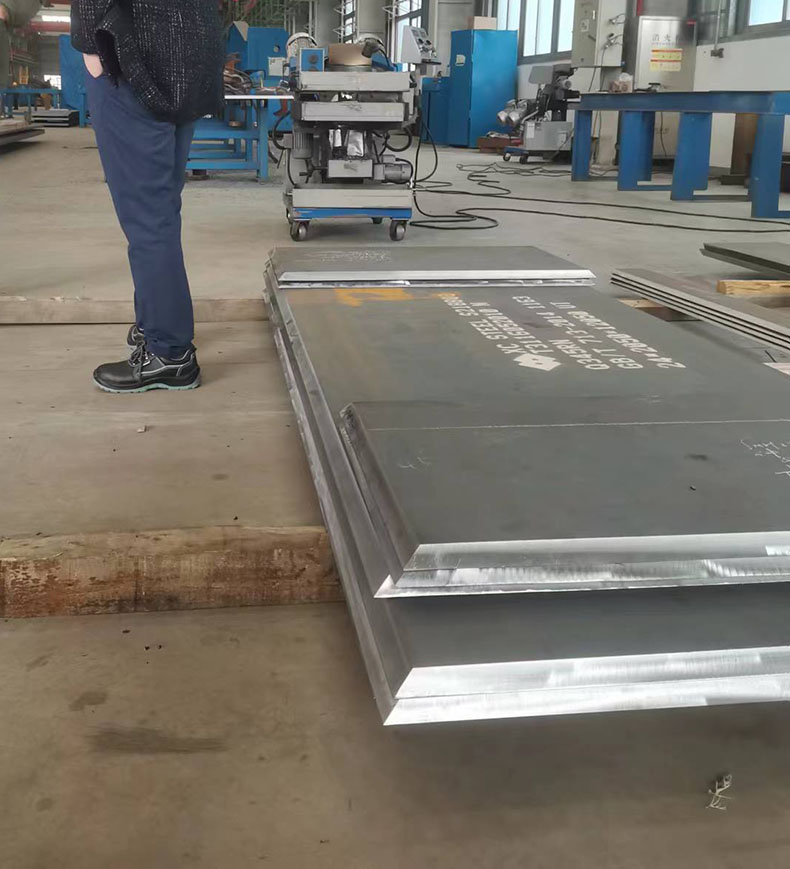

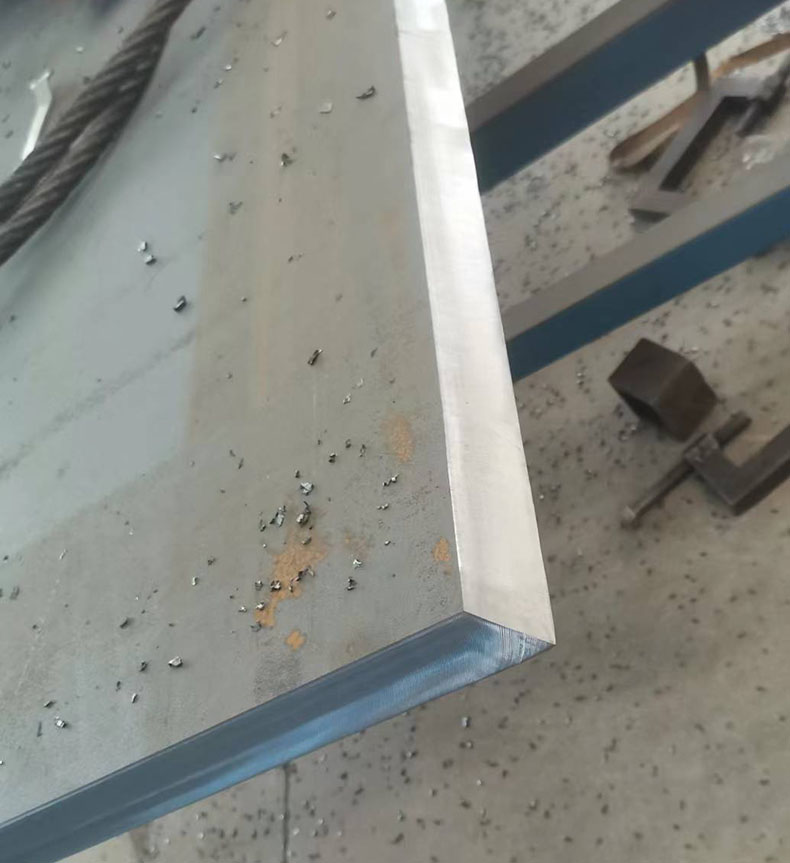

Display of bevel effects for various specifications of boards:

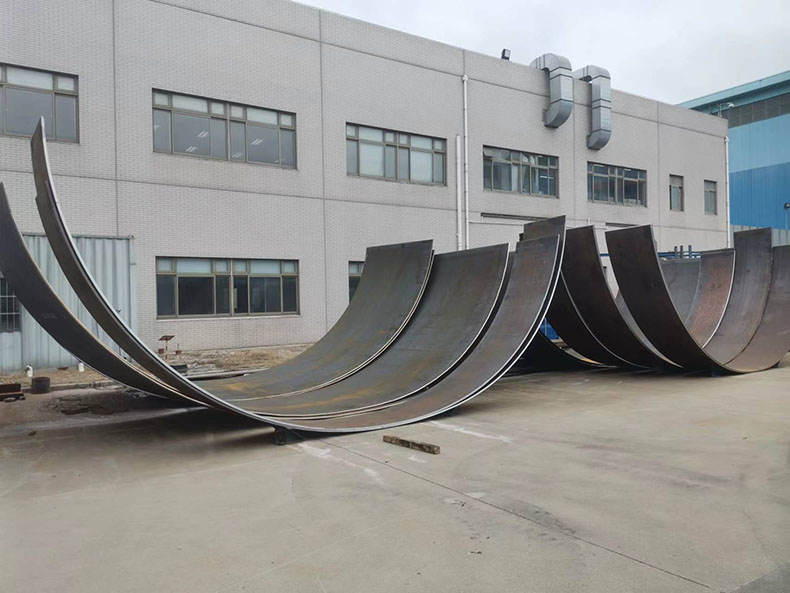

Roll round effect display after sheet processing:
For further insteresting or more information required about Edge milling machine and Edge Beveler. please consult phone/whatsapp +8618717764772
email: commercial@taole.com.cn
Post time: Oct-22-2025
