Customer situation
The office address of Zhejiang Titanium Industry Technology Co., Ltd. is located in Jiaxing, the Silk Road and a national historical and cultural city. The company mainly engages in the design, research and development, and manufacturing of equipment, pipeline fittings, pressure vessels, and standard parts made of titanium, nickel, zirconium, stainless steel and their composite materials. The company belongs to the leading industry of Jiaxing Inorganic Composite Materials Company.
After arriving at the site, it was learned that the material of the workpiece that the customer needs to process is titanium based composite plate, with a thickness of 12-25mm. The processing requirements are V-shaped bevel, V-angle of 30-45 degrees, and blunt edge of 4-5mm.

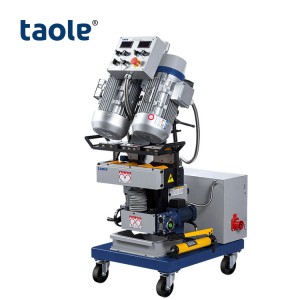

We recommend using the Taole TMM-80A steel plate edge milling machine, which is a beveling machine for chamfering steel plates or flat plates. The CNC edge milling machine can be used for chamfering operations in shipyards, steel structure factories, bridge construction, aerospace, pressure vessel factories, engineering machinery factories, and export processing.
Product parameters
|
Product Model |
TMM-80A |
Processing board length |
>300mm |
|
Power Supply |
AC 380V 50HZ |
Bevel angle |
0~60°Adjustable |
|
Total power |
4800W |
Single Bevel width |
15~20mm |
|
Spindle speed |
750~1050r/min |
Bevel width |
0~70mm |
|
Feed Speed |
0~1500mm/min |
Blade diameter |
φ80mm |
|
Thickness of clamping plate |
6~80mm |
Number of blades |
6pcs |
|
Clamping plate width |
>80mm |
Workbench height |
700*760mm |
|
Gross weight |
280kg |
Package size |
800*690*1140mm |
Characteristics of GMMA-80A plate beveling machine
1. Reduce usage costs and alleviate labor intensity
2. Cold cutting operation, no oxidation on the bevel surface
3. The slope surface smoothness reaches Ra3.2-6.3
4. This product has high efficiency and simple operation
Product parameters
Product Model TMM-80A
Processing board length >300mm
Power Supply AC 380V 50HZ Bevel angle 0~60°Adjustable
Total power 4800W Single Bevel width 15~20mm
Spindle speed 750~1050r/min Bevel width 0~70mm
Feed Speed 0~1500mm/min Blade diameter φ80mm
Thickness of clamping plate 6~80mm Number of blades 6pcs
Clamping plate width >80mm Workbench height 700*760mm
Gross weight 280kg Package size 800*690*1140mm

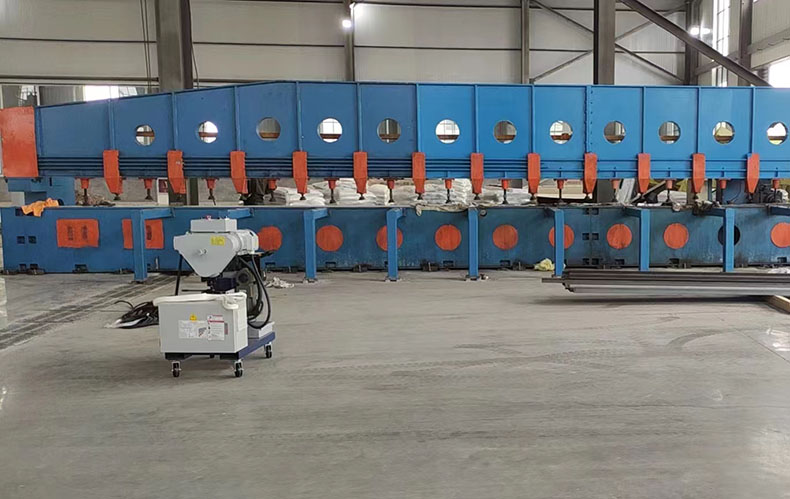

GMMA-80A milling machine, ready for debugging

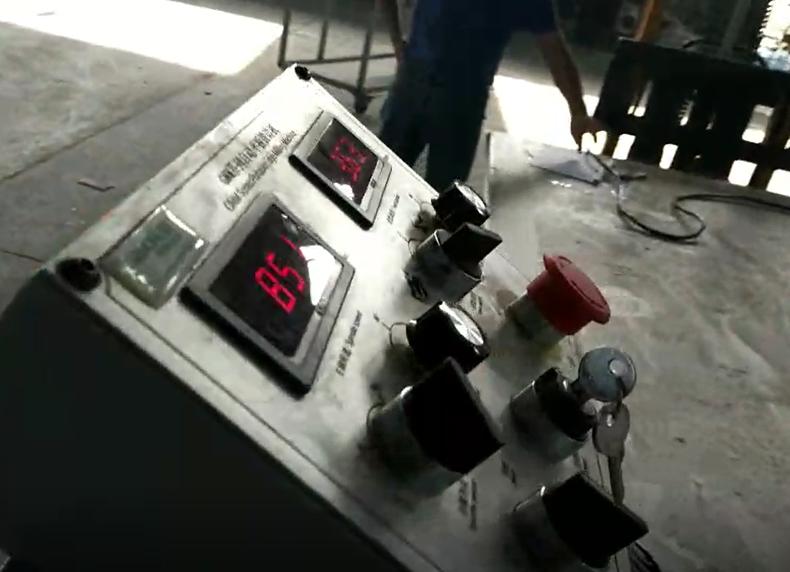

Set the parameters according to the on-site processing requirements

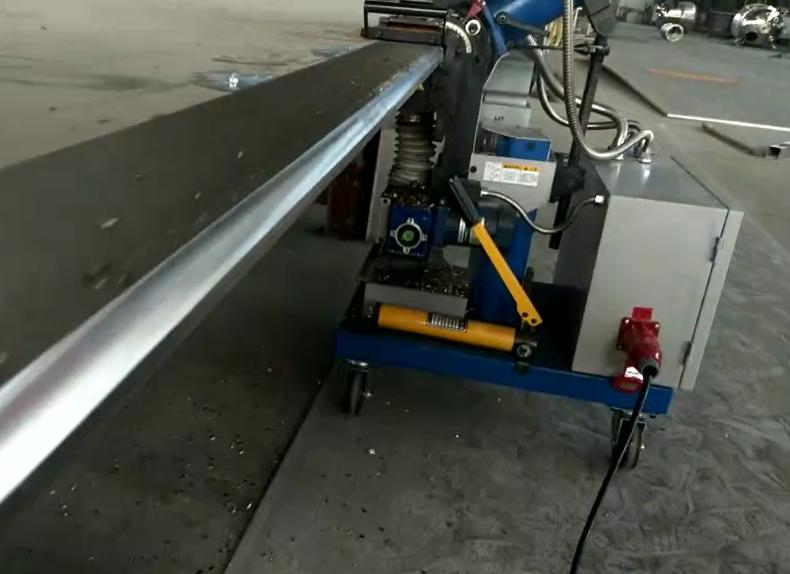

Smooth processing, one cut molding

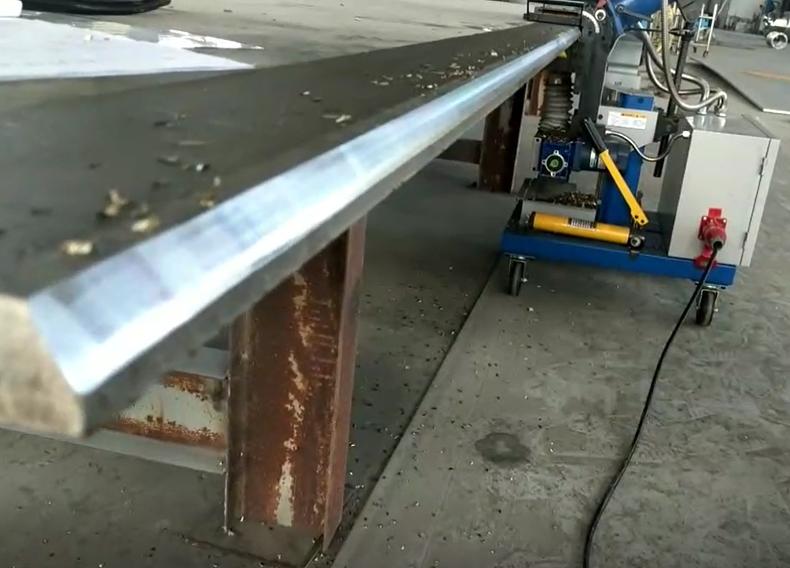

After processing, display the molding effect
A GMMA-80A edge milling machine has replaced the previous work of nearly one million devices, with high efficiency, good results, simple operation, and no limit on board length, making it highly versatile.
Post time: Sep-19-2025
