Case Introduction

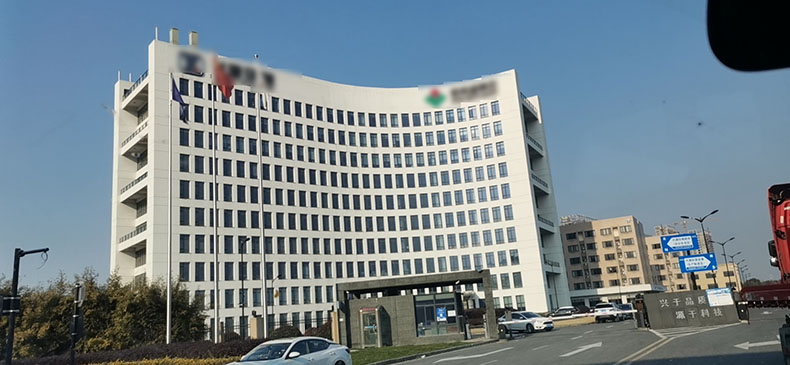

A certain environmental technology company, headquartered in Hangzhou, is committed to building seven major industries including sewage treatment, water conservancy dredging, ecological landscaping, environmental protection equipment, smart water management, soil remediation, and aquaculture ecology. Collaborative development of business systems to provide customers with comprehensive solutions. During the "anti epidemic" period in 2020, the company undertook sewage treatment projects for Huoshenshan and Leishenshan hospitals.

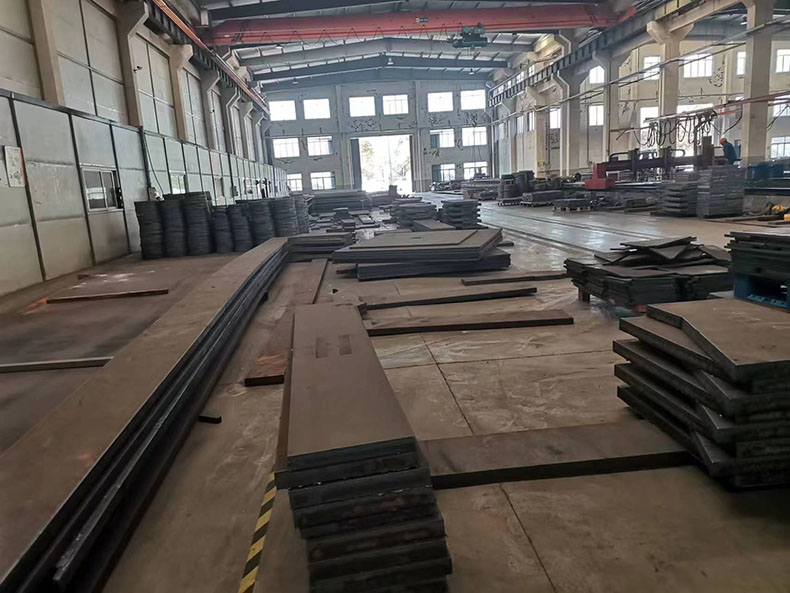

The main materials for processing workpieces are Q355 and Q355, with varying size specifications and a thickness generally between 20-40. They are mainly used for processing welding bevels.

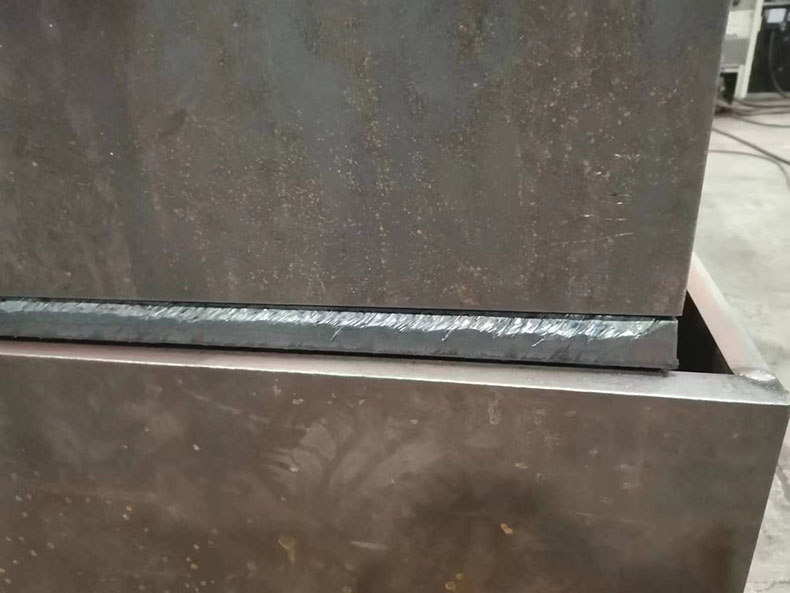

The current process used is flame cutting+manual polishing, which is not only time-consuming and labor-intensive, but also produces unsatisfactory bevel effects, as shown in the following figure:

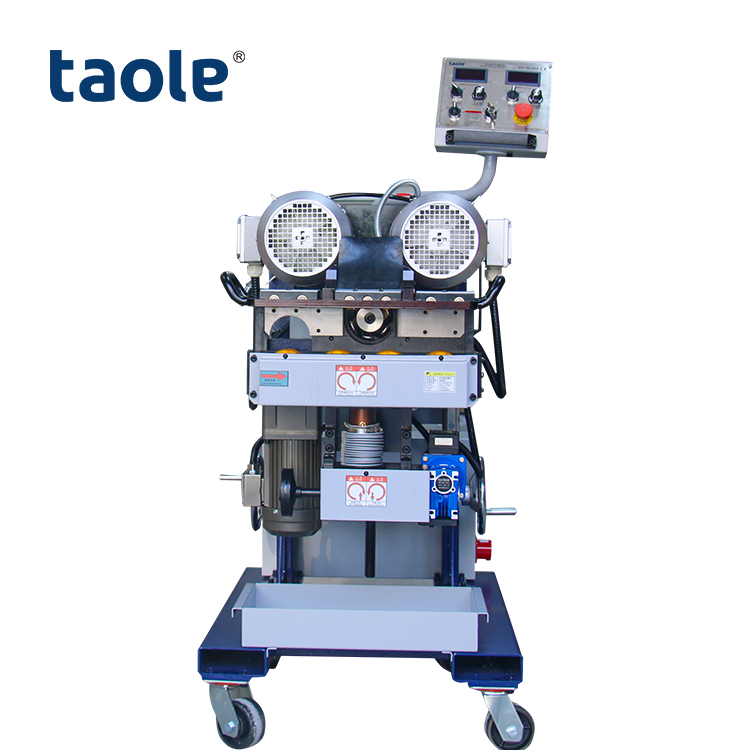

According to the on-site process requirements, it is recommended to use Taole GMMA-80R steel plate edge milling machine
Characteristics
• Reduce usage costs,
• Reduce labor intensity in cold cutting operations,
• The surface of the bevel is free of oxidation, and the smoothness of the slope surface reaches Ra3.2-6.3
• This product is efficient and easy to operate
Product Parameters
| Product model | GMMA-80R | Processing plate length | ＞300mm |
| Power supply | AC 380V 50HZ | Bevel angle | 0°~±60°Adjustable |
| Total power | 4800W | Single bevel width | 0~20mm |
| Spindle speed | 750~1050r/min | Bevel width | 0~70mm |
| Feed rate | 0~1500mm/min | Blade diameter | φ80mm |
| Thickness of clamping plate | 6~80mm | Number of blades | pcs |
| Clamping plate width | >100mm | Workbench height | 700*760mm |
| Gross weight | 385kg | Package dimensions | 1200*750*1300mm |
Test site:
The slope is smooth and the bevel speed is fast, meeting the on-site process requirements. The machine was successfully delivered and a follow-up cooperation plan was signed. At the same time, accelerate the upgrading and transformation project of bevel technology in the filter industry.
For further insteresting or more information required about Edge milling machine and Edge Beveler. please consult phone/whatsapp +8618717764772
email: commercial@taole.com.cn
Post time: Oct-24-2025
