Tube Beveling Machine, Portable Pipe Beveler,ISP-80
Short Description:

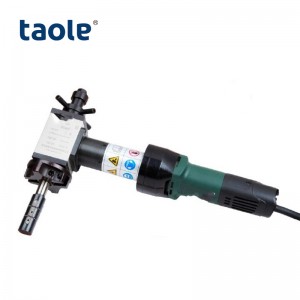

ISP Models id-mounted pipe beveling machine, with the advantages of light weight, easy operation. A draw nut is tightened which expands the mandrel blocks up a ramp and against the id surface for positive mounting, self-centered and squared to the bore. It can work with various material pipe, beveling angel as per requirements.
OVERVIEW
The ID mounted PIPE BEVELING MACHINE can face and bevel all type of pipe ends, pressure vessel and flanges. With the light weight, it is portable and can be used on-site working situation. The machine is applicable to end face machining of various grades of metal pipes, such as carbon steel, stainless steel and alloy steel. It is widely applied in heavy type pipelines of Petroleum, chemical natural gas, power supply construction, boiler and nuclear power.
FEATURES
1. Portable with light weight.
2. Compact machine design for easy operation and maintenance.
3. Bevel tools milling with high previous and stable performance
4. Available for vary metal material such as carbon steel, stainless steel, Ally etc.
5. Adjustable speed,self-certering
6. Powerful driven with option of Pneumatic, Electric.
7. Bevel angel and joint could be made as per processing needs.
CAPABILTY
1、Pipe end beveling
2、Inside beveling
3、Pipe facing
MODEL AND SPECIFICATION
Model No. | Working Range | Wall thickness | Rotation Speed | |
ISP-30 | φ18-30 | 1/2”-3/4” | ≤15mm | 50 r/min |
ISP-80 | φ28-89 | 1”-3” | ≤15mm | 55 r/min |
ISP-120 | φ40-120 | 11/4”-4” | ≤15mm | 30 r/min |
ISP-159 | φ65-159 | 21/2”-5” | ≤20mm | 35 r/min |
ISP-252-1 | φ80-273 | 3”-10” | ≤20mm | 16 r/min |
ISP-252-2 | φ80-273 | ≤75mm | 16 r/min | |
ISP-352-1 | φ150-356 | 6”-14” | ≤20mm | 14 r/min |
ISP-352-2 | φ150-356 | ≤75mm | 14 r/min | |
ISP-426-1 | φ273-426 | 10”-16” | ≤20mm | 12 r/min |
ISP-426-2 | φ273-426 | ≤75mm | 12 r/min | |
ISP-630-1 | φ300-630 | 12”-24” | ≤20mm | 10 r/min |
ISP-630-2 | φ300-630 | ≤75mm | 10 r/min | |
ISP-850-1 | φ490-850 | 24”-34” | ≤20mm | 9 r/min |
ISP-850-2 | φ490-850 | ≤75mm | 9 r/min |
