Quick set pipe beveling machine ISP-352-1
Short Description:

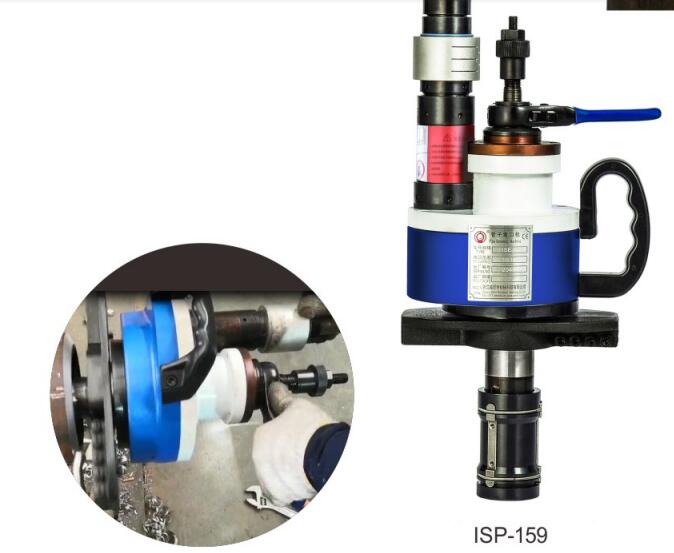

ISP Models id-mounted pipe beveling machine, with the advantages of light weight, easy operation. A draw nut is tightened which expands the mandrel blocks up a ramp and against the id surface for positive mounting, self-centered and squared to the bore. It can work with various material pipe, beveling angel as per requirements.
Product description

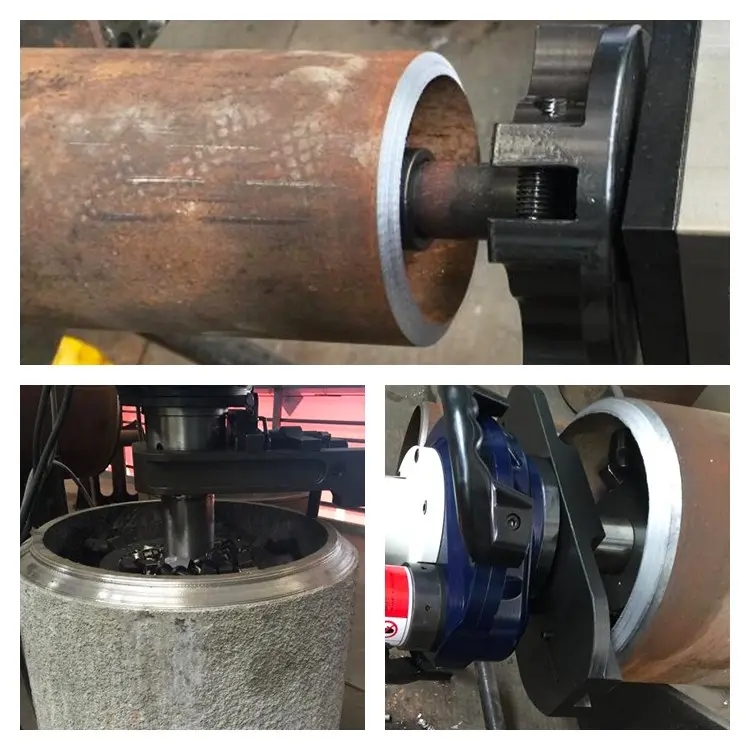

TAOLE ISE/ISP series of pipe beveling machines can face and bevel all type of pipe ends, pressure vessel and flanges. The machine adopts "T" shape structure design to realize the minimal radial working space. With the light weight, it is portable and can be used on-site working situation. The machine is applicable to end face machining of various grades of metal pipes, such as carbon steel, stainless steel and alloy steel. It is widely applied in heavy type pipe lines of Petroleum, chemical natural gas, power supply construction, boiler and nuclear power.
FEATURES
1. Portable with light weight.
2. Compact machine design for easy operation and maintenance.
3. Bevel tools milling with high previous and stable performance
4. Available for vary metal material such as carbon steel, stainless steel, Ally etc.
5. Adjustable speed,self-certering
6. Powerful driven with option of Pneumatic, Electric.
7. Bevel angel and joint could be made as per processing needs.
MODEL & RELATED
| Model Type | Spec | Capacity Inner Diameter | Wall thickness | Rotation Speed |
| 1)ISE Driven By Electric 2)ISP Driven By Pneumatic |
30 | 18-28 | ≦15 | 50r/min |
| 80 | 28-76 | ≦15 | 55r/min | |
| 120 | 40-120 | ≦15 | 30r/min | |
| 159 | 65-159 | ≦20 | 35r/min | |
| 252-1 | 80-240 | ≦20 | 18r/min | |
| 252-2 | 80-240 | ≦75 | 16r/min | |
| 352-1 | 150-330 | ≦20 | 18r/min | |
| 352-2 | 150-330 | ≦75 | 14r/min | |
| 352-1 | 150-330 | ≦20 | 14r/min | |
| 352-2 | 150-330 | ≦75 | 12r/min | |
| 426-1 | 250-426 | ≦20 | 12r/min | |
| 426-2 | 250-426 | ≦75 | 12r/min | |
| 630-1 | 300-600 | ≦20 | 10r/min | |
| 630-2 | 300-600 | ≦75 | 10r/min | |
| 850-1 | 600-820 | ≦20 | 9r/min | |
| 850-2 | 600-820 | ≦75 | 9r/min |
FAQ
Q1: What is the power supply of the machine?
A: Optional Power Supply at 220V/380/415V 50Hz. Customized power /motor/logo/Color available for OEM service.
Q2: Why comes multi models and how should I Choose and understand?
A: We have different models based on customer’s requirements. Mainly different on power, Cutter head, bevel angel, or special bevel joint required. Please send a inquiry and share your requirements ( Metal Sheet specification width * length * thickness, required bevel joint and angel). We will present you with best solution based on general conclusion.
Q3: What is the delivery time?
A: Standard machines are stock available or spare parts available which able to be ready in 3-7 days. If you have special requirements or customized service. Normally takes 10-20 days after order confirm.
Q4: What is the warranty period and after sales service?
A: We provide 1 year warranty for machine except wearing parts or consumables. Optional for Video Guide, Online Service or local Service by third party. All spare parts available in both Shanghai and Kun Shan Warehouse in China for fast moving and shipping.
Q5: What is your payment Teams?
A: We welcome and try multi payment terms depends on order value and necessary. Will suggest 100% payment against fast shipment. Deposit and balance % against cycle orders.

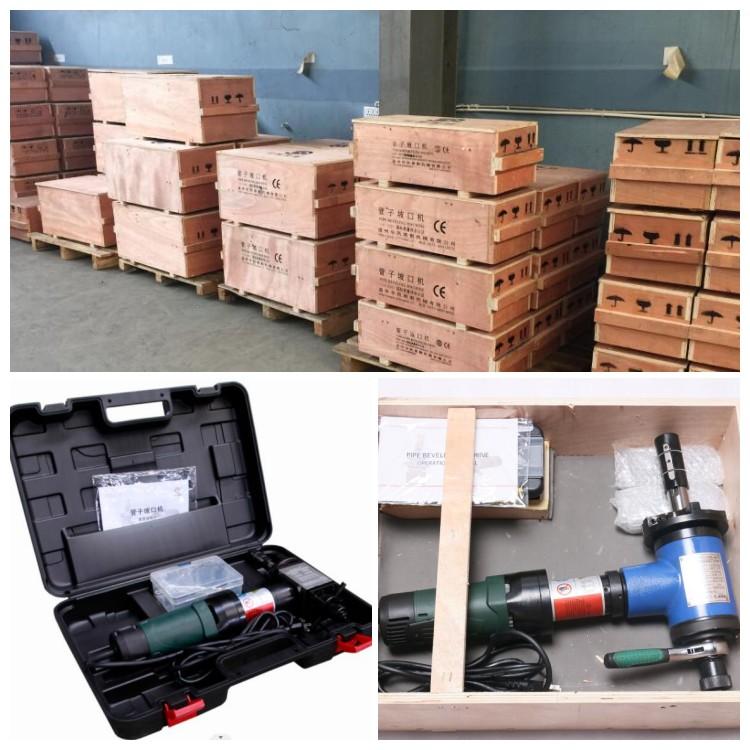

Q6: How do you pack it?
A: Small machine tools packed in tool box and carton boxes for safety shipments by courier express. Heavy machines weight higher than 20 kgs packed in wooden cases pallet against safety shipment by Air or Sea. Will suggest bulk shipments by sea considering machine sizes and weight.
Q7: Are you Manufacture and what is your products range?
A: Yes. We are manufacture for beveling machine since 2000.Welcome to visit our factory in Kun shan City. We concentrating on metal steel beveling machine for both plate and pipes against welding preparation. Products including Plate Beveler, Edge Milling Machine, Pipe beveling, pipe cutting beveling machine, Edge rounding /Chamfering, Slag removal with standard and customized solutions.
Welcome to contact us anytime for any inquiry or more informations.
