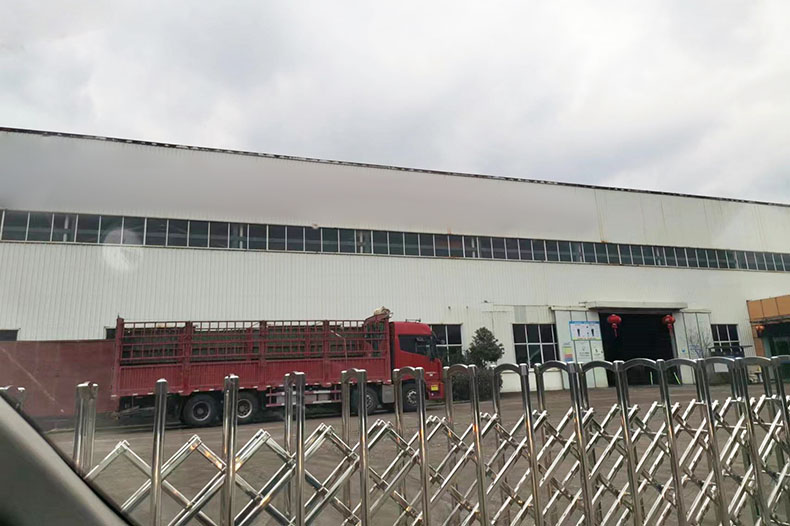

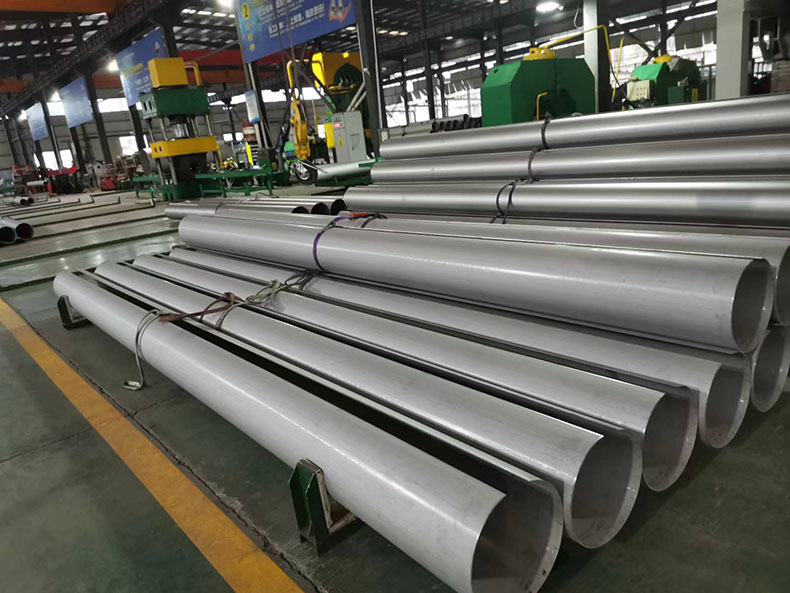

The client we are working with today is a group company. We specialize in manufacturing and producing industrial high-temperature, low-temperature, and highly corrosion-resistant pipeline products such as seamless stainless steel pipes, stainless steel nuclear bright pipes, and stainless steel welded pipes. It is a qualified supplier to enterprises such as PetroChina, Sinopec, CNOOC, CGN, CRRC, BASF, DuPont, Bayer, Dow Chemical, BP Petroleum, Middle East Oil Company, Rosneft, BP, and Canadian National Petroleum Corporation.
After communicating with the customer, it was learned that materials need to be processed:
The material is S30408 (size 20.6 * 2968 * 1200mm), and the processing requirements are a bevel angle of 45 degrees, leaving 1.6 blunt edges, and a processing depth of 19mm.
Based on the on-site situation, we recommend using the Taole TMM-80A steel plate edge milling machine
Characteristics of TMM-80A plate beveling machine
1. Reduce usage costs and alleviate labor intensity
2. Cold cutting operation, no oxidation on the bevel surface
3. The slope surface smoothness reaches Ra3.2-6.3
4. This product has high efficiency and simple operation
Product parameters
|
Product Model |
TMM-80A |
Processing board length |
>300mm |
|
Power Supply |
AC 380V 50HZ |
Bevel angle |
0~60°Adjustable |
|
Total power |
4800W |
Single Bevel width |
15~20mm |
|
Spindle speed |
750~1050r/min |
Bevel width |
0~70mm |
|
Feed Speed |
0~1500mm/min |
Blade diameter |
φ80mm |
|
Thickness of clamping plate |
6~80mm |
Number of blades |
6pcs |
|
Clamping plate width |
>80mm |
Workbench height |
700*760mm |
|
Gross weight |
280kg |
Package size |
800*690*1140mm |
The machine model used is TMM-80A (automatic walking beveling machine), with dual electromechanical high power and adjustable spindle and walking speed through dual frequency conversion.Mainly used for bevel processing operations in industries such as construction machinery, steel structures, pressure vessels, ships, aerospace, etc.

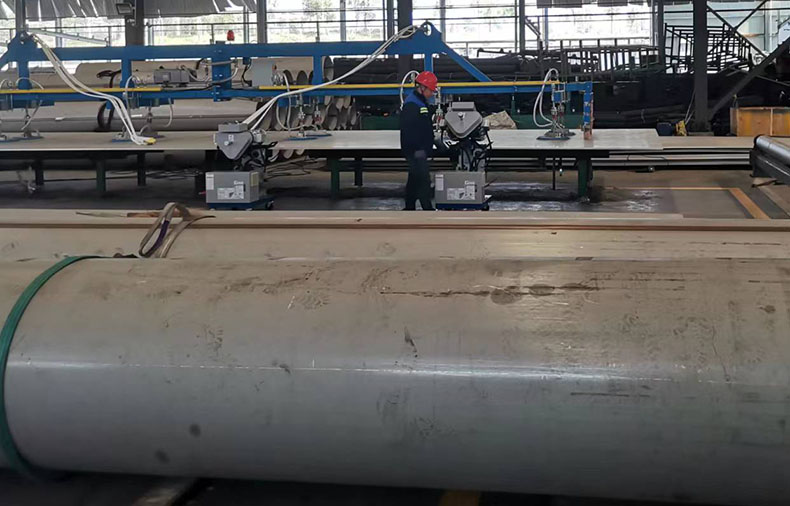

Because both long sides of the board need to be chamfered, two machines were configured for the customer, which can work on both sides simultaneously. One worker can watch two devices at the same time, which not only saves labor but also greatly improves work efficiency.

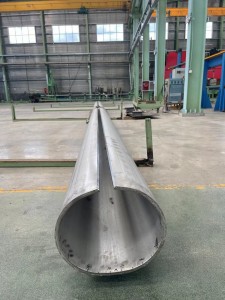

After the sheet metal is processed and formed, it is rolled and edged.

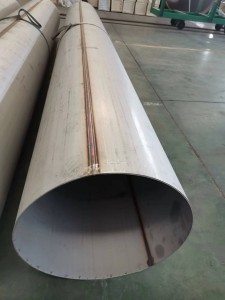

Welding effect display:
