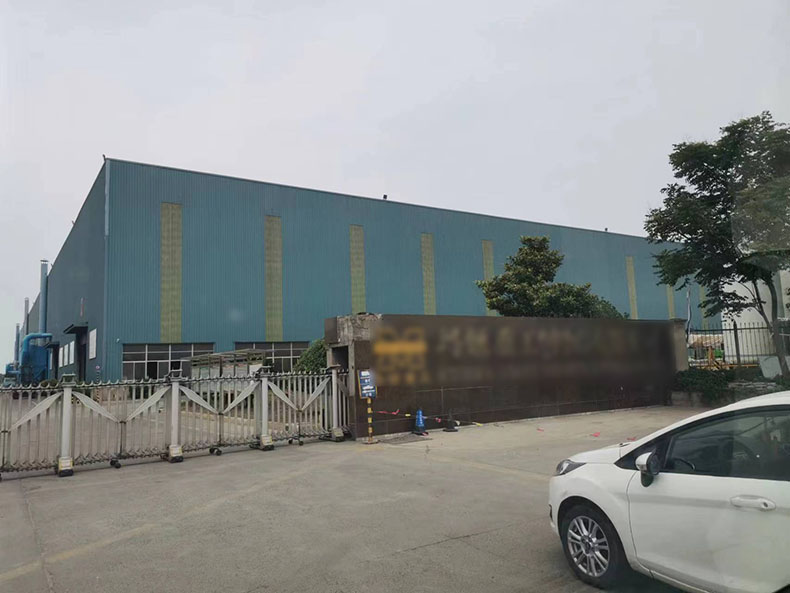

A certain heavy industry (China) Co., Ltd. is a professional company that produces and provides international standard steel structures. The products produced are applied to offshore oil platforms, power plants, industrial plants, high-rise buildings, mineral transportation equipment, and other mechanical equipment.

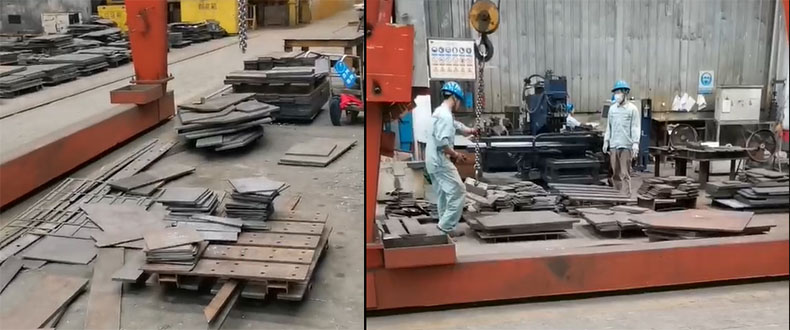

There are different sizes of boards and processing requirements at different angles on site. After comprehensive consideration, we recommend using TMM-80R edge milling machine+TMM-20T plate beveling machine for processing.

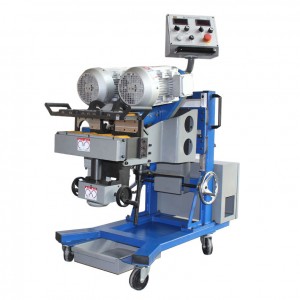

The TMM-80R reversible steel plate beveling machine can process V/Y groove, X/K groove, and stainless steel plasma cutting edge milling operations.
Characteristics
l Reduce usage costs,
l Reduce labor intensity in cold cutting operations,
l The surface of the bevel is free of oxidation, and the smoothness of the slope surface reaches Ra3.2-6.3
l This product is efficient and easy to operate
Product Parameters
| Product model | TMM-80R | Processing plate length | ＞300mm |
| Power supply | AC 380V 50HZ | Bevel angle | 0°~±60°Adjustable |
| Total power | 4800W | Single bevel width | 0~20mm |
| Spindle speed | 750~1050r/min | Bevel width | 0~70mm |
| Feed rate | 0~1500mm/min | Blade diameter | φ80mm |
| Thickness of clamping plate | 6~80mm | Number of blades | pcs |
| Clamping plate width | >100mm | Workbench height | 700*760mm |
| Gross weight | 385kg | Package dimensions | 1200*750*1300mm |
Tablet technology
Processing board size:
thickness 6mm-80mm (minimum limit 4mm)
Processing groove angle:
0~± 60 degrees, adjustable angle at will
Processing slope width/depth:
maximum 20mm per operation
Maximum slope width multiple times:
70mm
Surface smoothness of processing:
Ra: 3.2~6.3

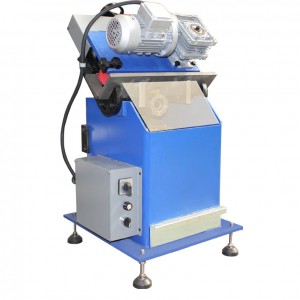

TMM-20T edge milling machine, mainly used for small plate processing.
Technical parameters of TMM-20T small plate beveling machine
automatic small plate beveling machine：
| Power supply: AC380V 50HZ (customizable) | Total power: 1620W |
| Processing board width:>10mm | bevel angle: 30 degrees to 60 degrees (other angles can be customized) |
| Processing plate thickness: 2-30mm (customizable thickness 60mm) | Motor speed: 1450r/min |
| Maximum bevel width: 15mm | Execution standards: CE, ISO9001:2008 |
| Feed rate: 0-1600mm/min | Net weight: 135kg |

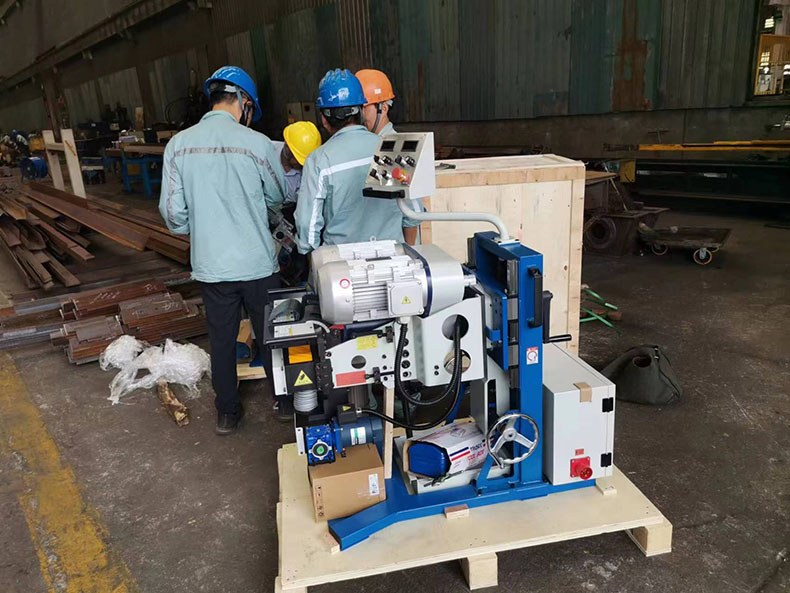

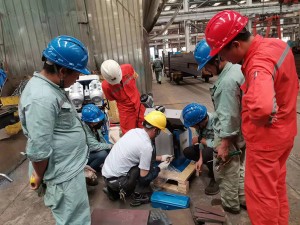

Equipment arrives at the processing site, installation and debugging:

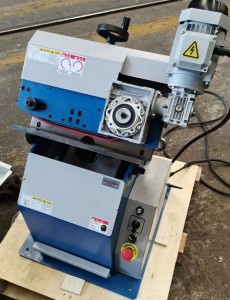

TMM-80R edge milling machine is mainly used for chamfering medium thick plates and large-sized plates.
TMM-20T desktop milling machine is designed for groove processing of small workpieces with a thickness of 3-30mm, such as reinforcing ribs, triangular plates, and angular plates.

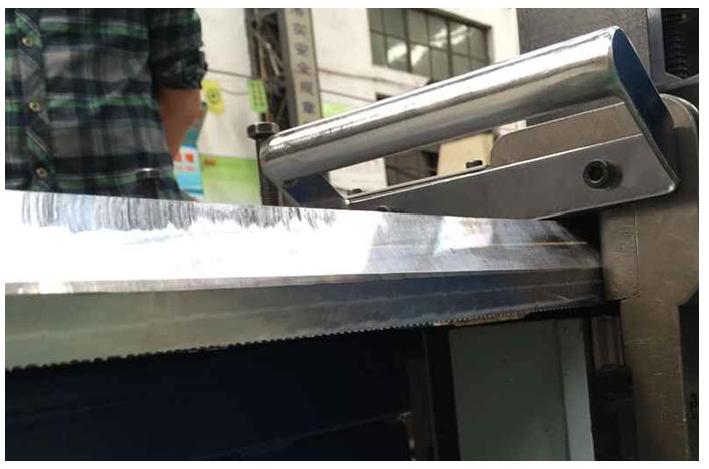

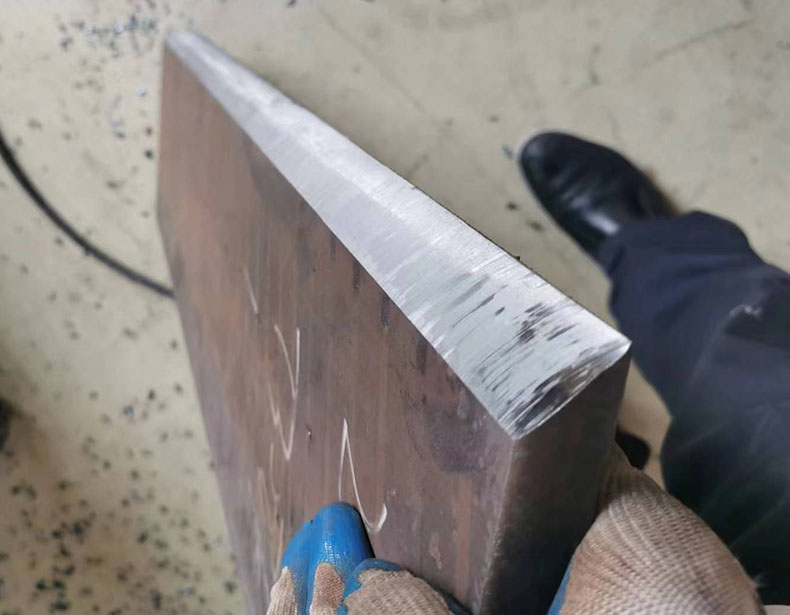

Processing effect display:
After processing, the finished product meets the process requirements and is delivered smoothly!
