Case introduction
The client we are introducing today is a certain Heavy Industry Group Co., Ltd. established on May 13, 2016, located in an industrial park. The company belongs to the electrical machinery and equipment manufacturing industry, and its business scope includes: licensed project: manufacturing of civil nuclear safety equipment; Installation of civil nuclear safety equipment; Manufacturing of special equipment. Top 500 private enterprises in China.

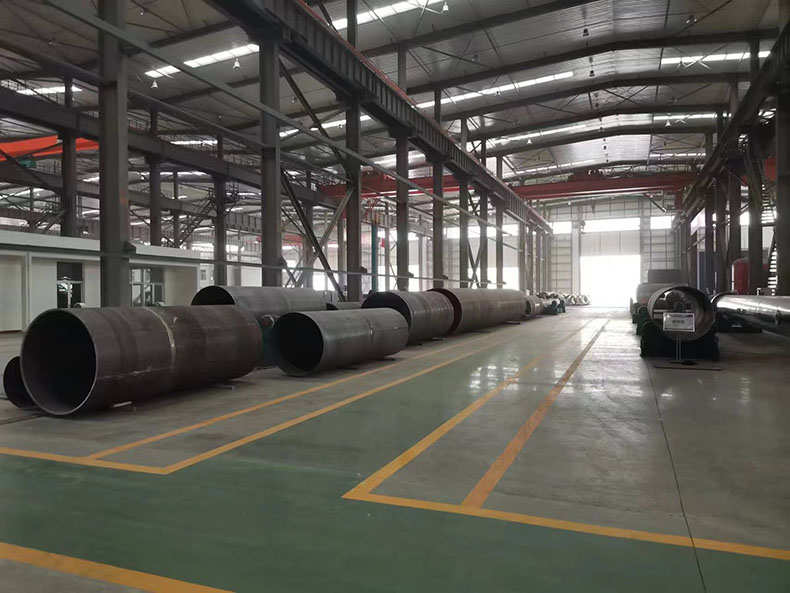

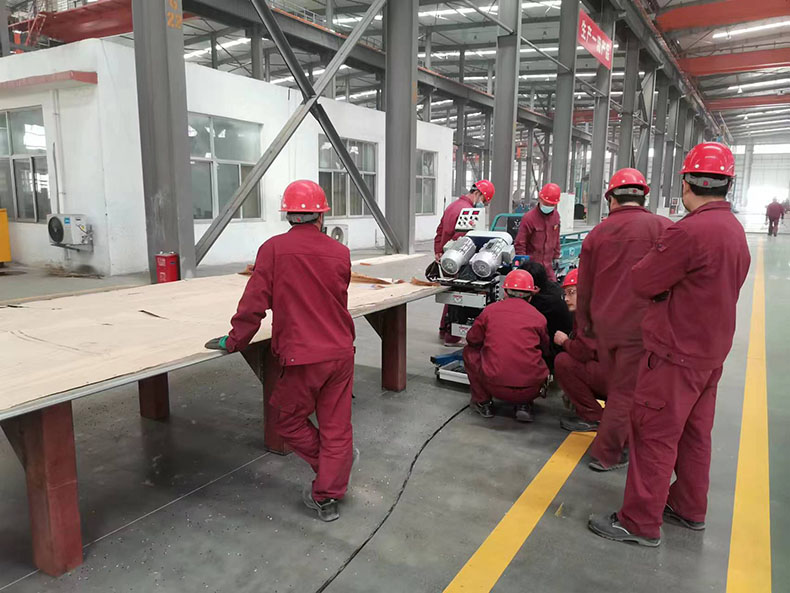

This is a corner of their workshop as shown in the picture:

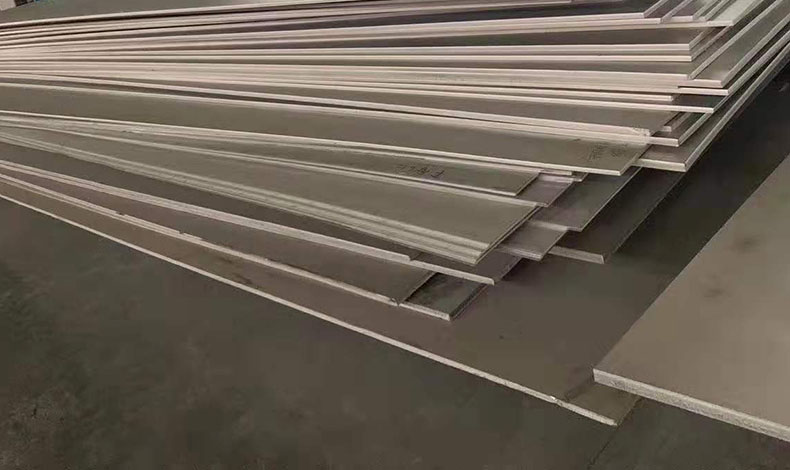

When we arrived at the site, we learned that the material of the workpiece that the customer needed to process was S30408+Q345R, with a plate thickness of 4+14mm. The processing requirements were a V-shaped bevel with a V-angle of 30 degrees, a blunt edge of 2mm, a stripped composite layer, and a width of 10mm.

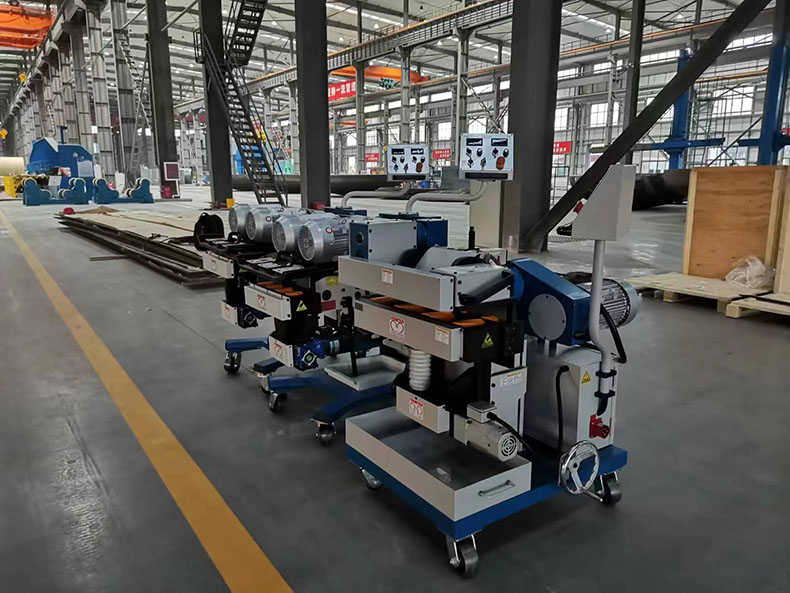

Based on the customer's process requirements and evaluation of various product indicators, we recommend that the customer use the Taole TMM-100L edge milling machine and TMM-80R plate beveling machine to complete the processing. The TMM-100L edge milling machine is mainly used for processing thick plate bevels and stepped bevels of composite plates. It is widely used for excessive bevel operations in pressure vessels and shipbuilding, and in fields such as petrochemicals, aerospace, and large-scale steel structure manufacturing. The single processing volume is large, and the slope width can reach 30mm, with high efficiency. It can also achieve the removal of composite layers and U-shaped and J-shaped bevels.
Product Parameter
|
Power supply voltage |
AC380V 50HZ |
|
Total power |
6520W |
|
Cutting energy consumption |
6400W |
|
Spindle speed |
500~1050r/min |
|
Feed rate |
0-1500mm/min (varies according to material and feed depth) |
|
Clamping plate thickness |
8-100mm |
|
Clamping plate width |
≥ 100mm (non machined edge) |
|
Processing board length |
＞ 300mm |
|
Bevel angle |
0 °~90 ° Adjustable |
|
Single bevel width |
0-30mm (depending on bevel angle and material changes) |
|
Width of bevel |
0-100mm (varies according to the angle of the bevel) |
|
Cutter Head diameter |
100mm |
|
Blade quantity |
7/9pcs |
|
Weight |
440kg |
TMM-80R convertible edge milling machine/dual speed plate edge milling machine/automatic walking beveling machine, processing beveling styles: The edge milling machine can process V/Y bevels, X/K bevels, and stainless steel plasma cut edges.
On site processing effect display:
The equipment meets the standards and on-site process requirements, and has been successfully accepted.
