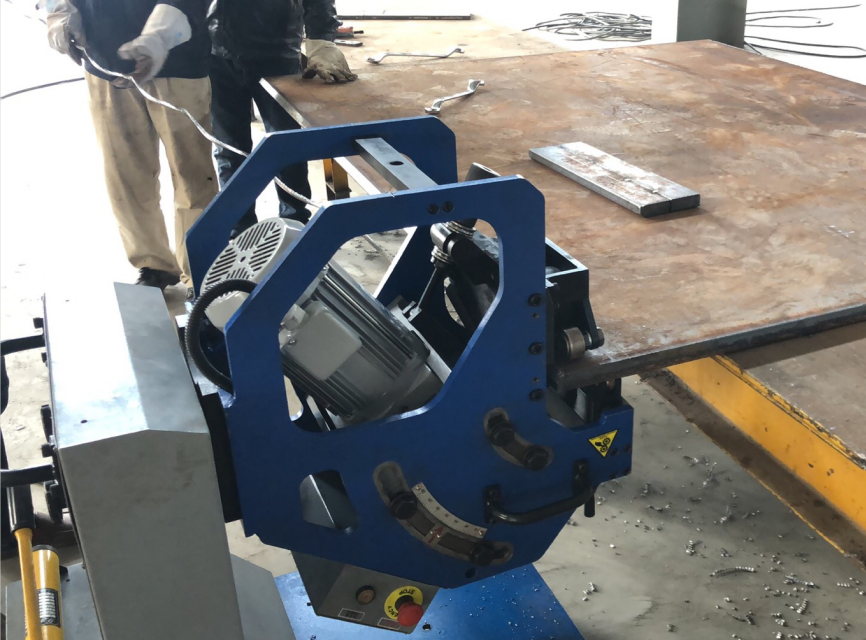

TBM-16D heavy duty steel plate beveling machine
Short Description:
TBM steel plate beveling machine with a wide working range of plate specifications. Provide high quality,efficiency,safe and easier operation on weld preparation.
TBM-16D heavy duty steel plate beveling machine
Introduction
TBM-16D high efficiency steel plate beveling machine widely used in construction industry for weld preparation.Clamp thickness 9-40mm and bevel angel range 25-45degree adjustable with high efficiency at processing 1.2-1.6 meters per min. Single bevel width could reach 16mm specially for heavy duty metal plates.
There are two processing way:
Model 1: Cutter catch the steel and lead into the machine to complete the job while processing small steel plates.
Modle 2: Machine will travel along the edge of steel and complete the job while processing large steel plates.
Specifications
| Model NO. | TBM-16D steel plate beveling machine |
| Power Supply | AC 380V 50HZ |
| Total Power | 1500W |
| Motor Speed | 1450r/min |
| Feed Speed | 1.2-1.6metesr/min |
| Clamp Thickness | 9-40mm |
| Clamp Width | ＞115mm |
| Process Length | ＞100mm |
| Bevel Angel | 25-45 degree as customer’s requre |
| Single Bevel Width | 16mm |
| Bevel Width | 0-28mm |
| Cutter Plate | φ 115mm |
| Cutter QTY | 1pc |
| Worktable Height | 700mm |
| Floor Space | 800*800mm |
| Weight | N.W 212KGS G.W 265KGS |
| Weight for Turnable optionGBM-12D-R | N.W 315KGS G.W 360KGS |
Note: Standard Machine including 3pcs of cutter+ Tools in case + Manual Operation
Fetures
1. Available for metal material : Carbon steel,stainless steel, aluminium etc
2. IE3 Standard motor at 1500W
3. Hight Efficiency can reach at 1.2-1.6meter /min
4. Inported reduction gear box for cold cutting and non-oxidation
5. No Scrap Iron Splash, More safe
6. Max bevel width can reach 28mm
7. Easy operation

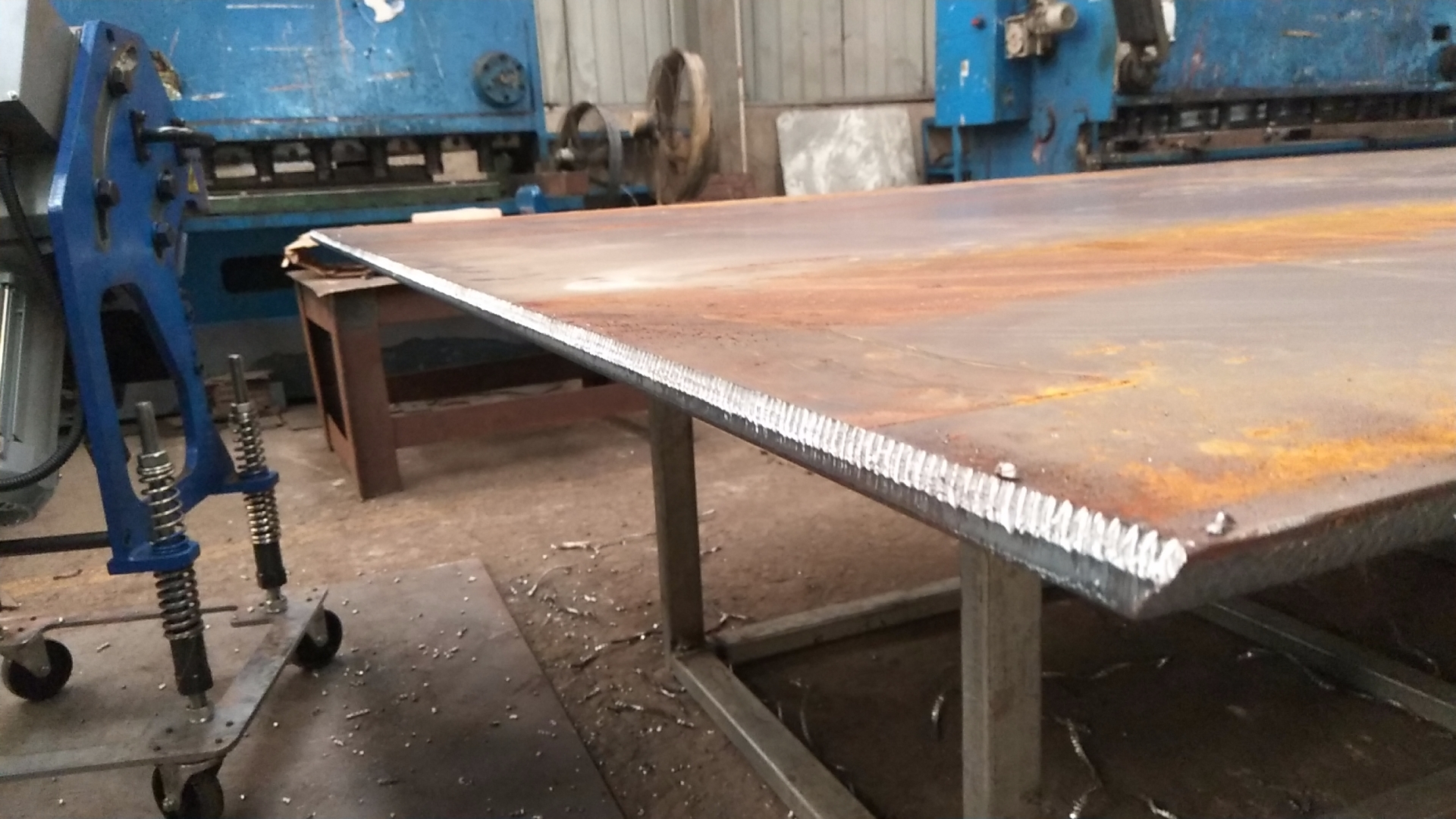

Bevel Surface
Application
Widely used in aerospace, petrochemical industry, pressure vessel, shipbuilding, metallurgy and unloading processing factory welding manufacturing field.
Exibition
Packaging
Q1: What is the power supply of the machine?
A: Optional Power Supply at 220V/380/415V 50Hz. Customized power /motor/logo/Color available for OEM service.
Q2: Why comes multi models and how should I Choose and understand?
A: We have different models based on customer’s requirements. Mainly different on power, Cutter head, bevel angel, or special bevel joint required. Please send a inquiry and share your requirements ( Metal Sheet specification width * length * thickness, required bevel joint and angel). We will present you with best solution based on general conclusion.
Q3: What is the delivery time?
A: Standard machines are stock available or spare parts available which able to be ready in 3-7 days. If you have special requirements or customized service. Normally takes 10-20 days after order confirm.
Q4: What is the warranty period and after sales service?
A: We provide 1 year warranty for machine except wearing parts or consumables. Optional for Video Guide, Online Service or local Service by third party. All spare parts available in both Shanghai and Kun Shan Warehouse in China for fast moving and shipping.
Q5: What is your payment Teams?
A: We welcome and try multi payment terms depends on order value and necessary. Will suggest 100% payment against fast shipment. Deposit and balance % against cycle orders.
Q6: How do you pack it?
A: Small machine tools packed in tool box and carton boxes for safety shipments by courier express. Heavy machines weight higher than 20 kgs packed in wooden cases pallet against safety shipment by Air or Sea. Will suggest bulk shipments by sea considering machine sizes and weight.
Q7: Are you Manufacture and what is your products range?
A: Yes. We are manufacture for beveling machine since 2000.Welcome to visit our factory in Kun shan City. We concentrating on metal steel beveling machine for both plate and pipes against welding preparation. Products including Plate Beveler, Edge Milling Machine, Pipe beveling, pipe cutting beveling machine, Edge rounding /Chamfering, Slag removal with standard and customized solutions.
Please contact us anytime for any inquiry or more informations.
