Case Introduction The client we are cooperating with this time is a certain rail transit equipment supplier, mainly engaged in the research and development, design, manufacturing, repair, sales, leasing and technical services, information consulting, import and export business of railway locomotives, high-speed trains, urban rail transit vehicles, engineering machinery, various types of electromechanical equipment, electronic equipment and components, electronic appliances and environmental equipment products.
The workpiece that the customer needs to process is the train floor edge beam (11000 * 180 * 80mm U-shaped channel steel)
Specific processing requirements:
The customer needs to process L-shaped beveles on both sides of the web plate, with a width of 20mm, a depth of 2.5mm, a 45 degree slope at the root, and a C4 bevel at the connection between the web plate and the wing plate.
Based on the customer's situation, the model we recommend to them is the TMM-60L automatic steel plate beveling machine. In order to meet the actual processing needs of users on site, we have made multiple upgrades and modifications to the equipment on the basis of the original model.

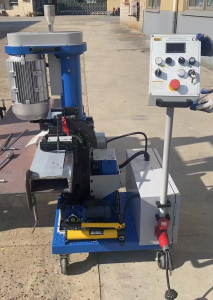

Upgraded TMM-60L edge milling machine：
Characteristic
1. Reduce usage costs and alleviate labor intensity
2. Cold cutting operation, no oxidation on the bevel surface
3. The slope surface smoothness reaches Ra3.2-6.3
4. This product has high precision and simple operation
Product parameters
|
Model |
TMM-60L |
Processing board length |
>300mm |
|
Power supply |
AC 380V 50HZ |
Bevel angle |
0°~90°Adjustable |
|
Total power |
3400w |
Single bevel width |
10~20mm |
|
Spindle speed |
1050r/min |
Bevel width |
0~60mm |
|
Feed Speed |
0~1500mm/min |
Blade diameter |
φ63mm |
| Thickness of clamping plate |
6~60mm |
Number of blades |
6pcs |
| Clamping plate width |
>80mm |
Workbench height |
700*760mm |
|
Gross weight |
260kg |
Package size |
950*700*1230mm |

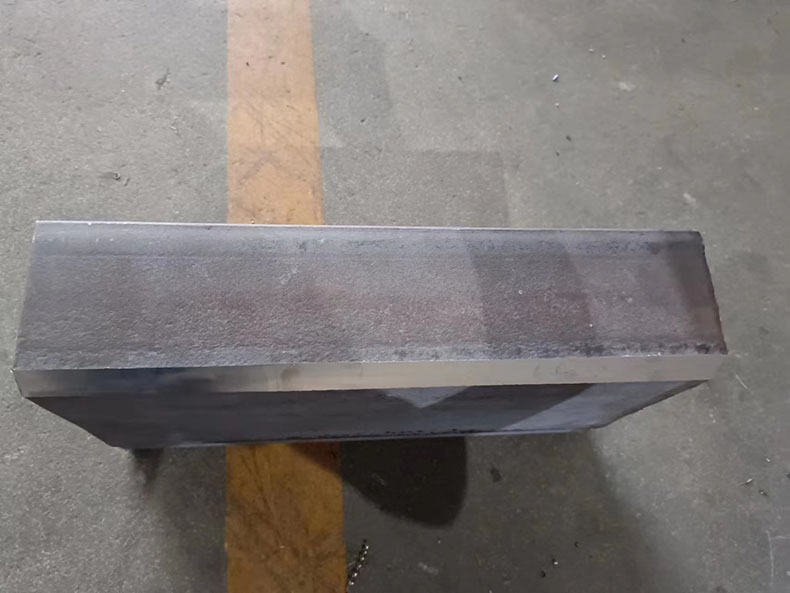

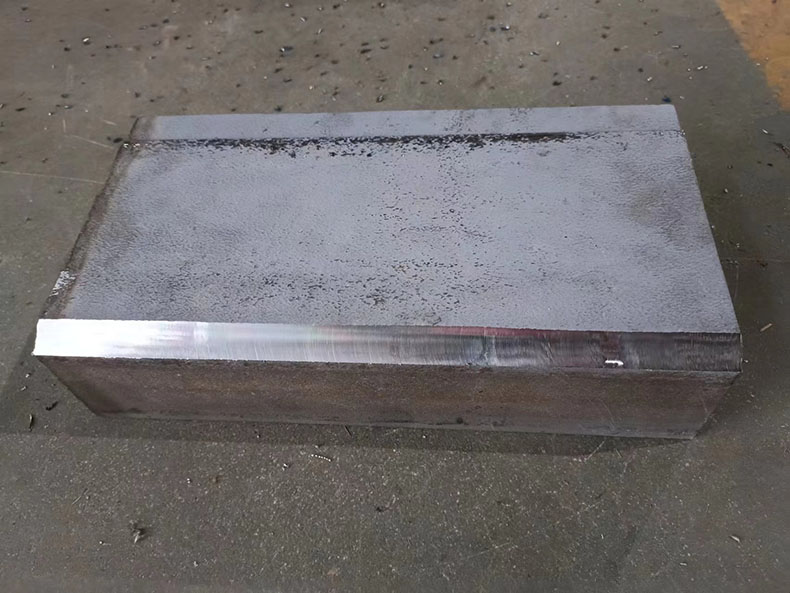

Edge beam L-shaped bevel processing display:

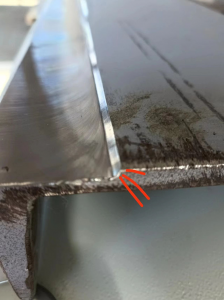

The bevel at the connection between the belly plate and the wing plate is a C4 bevel processing effect display:
After using our edge milling machine for a period of time, the customer feedback shows that the processing technology of the edge beam has been greatly improved. While the processing difficulty has been reduced, the processing efficiency has doubled. In the future, other factories will also choose our upgraded TMM-60L plate beveling machine.
