TOP-457 Pneumatic pipe cold cutting and beveling machine
Short Description:
OCP models od-mounted pneumatic pipe cold cutting and beveling machine with light weight, minimal radial space . It can separate to two half and easy to operate. Machine can do cutting and beveling simultaneously.
TOP-457 Pneumatic pipe cold cutting and beveling machine
Introduction

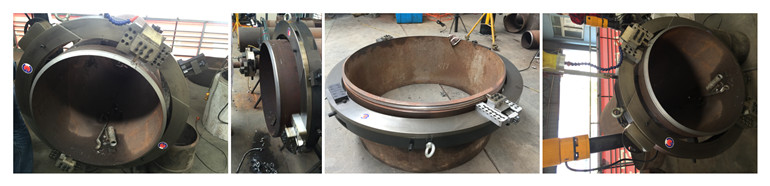

This series are portable od-mountd frame type pipe cold cutting and beveling machine with advantages of light weight, minimal radial space, easy operation and so on. Split frame design can separate mount the od of the in-lin pipe for strong and stable clamping to process cutting and beveling sumultaneously.
Specification
Power Supply: 0.6-1.0 @1500-2000L/min
| Model NO. | Working Range | Wall Thickness | Rotation Speed | Air Pressure | Air Consumption | |
| OCP-89 | φ 25-89 | 3/4‘’-3‘’ | ≤35mm | 50 r/min | 0.6~1.0MPa | 1500 L/min |
| OCP-159 | φ50-159 | 2‘’-5‘’ | ≤35mm | 21 r/min | 0.6~1.0MPa | 1500 L/min |
| OCP-168 | φ50-168 | 2‘’-6‘’ | ≤35mm | 21 r/min | 0.6~1.0MPa | 1500 L/min |
| OCP-230 | φ80-230 | 3‘’-8‘’ | ≤35mm | 20 r/min | 0.6~1.0MPa | 1500 L/min |
| OCP-275 | φ125-275 | 5‘’-10‘’ | ≤35mm | 20 r/min | 0.6~1.0MPa | 1500 L/min |
| OCP-305 | φ150-305 | 6‘’-10‘’ | ≤35mm | 18 r/min | 0.6~1.0MPa | 1500 L/min |
| OCP-325 | φ168-325 | 6‘’-12‘’ | ≤35mm | 16 r/min | 0.6~1.0MPa | 1500 L/min |
| OCP-377 | φ219-377 | 8‘’-14‘’ | ≤35mm | 13 r/min | 0.6~1.0MPa | 1500 L/min |
| OCP-426 | φ273-426 | 10‘’-16‘’ | ≤35mm | 12 r/min | 0.6~1.0MPa | 1800 L/min |
| OCP-457 | φ300-457 | 12‘’-18‘’ | ≤35mm | 12 r/min | 0.6~1.0MPa | 1800 L/min |
| OCP-508 | φ355-508 | 14‘’-20‘’ | ≤35mm | 12 r/min | 0.6~1.0MPa | 1800 L/min |
| OCP-560 | φ400-560 | 16‘’-22‘’ | ≤35mm | 12 r/min | 0.6~1.0MPa | 1800 L/min |
| OCP-610 | φ457-610 | 18‘’-24‘’ | ≤35mm | 11 r/min | 0.6~1.0MPa | 1800 L/min |
| OCP-630 | φ480-630 | 20‘’-24‘’ | ≤35mm | 11 r/min | 0.6~1.0MPa | 1800 L/min |
| OCP-660 | φ508-660 | 20‘’-26‘’ | ≤35mm | 11 r/min | 0.6~1.0MPa | 1800 L/min |
| OCP-715 | φ560-715 | 22‘’-28‘’ | ≤35mm | 11 r/min | 0.6~1.0MPa | 1800 L/min |
| OCP-762 | φ600-762 | 24‘’-30‘’ | ≤35mm | 11 r/min | 0.6~1.0MPa | 2000 L/min |
| OCP-830 | φ660-813 | 26‘’-32‘’ | ≤35mm | 10 r/min | 0.6~1.0MPa | 2000 L/min |
| OCP-914 | φ762-914 | 30‘’-36‘’ | ≤35mm | 10 r/min | 0.6~1.0MPa | 2000 L/min |
| OCP-1066 | φ914-1066 | 36‘’-42‘’ | ≤35mm | 9 r/min | 0.6~1.0MPa | 2000 L/min |
| OCP-1230 | φ1066-1230 | 42‘’-48‘’ | ≤35mm | 8 r/min | 0.6~1.0MPa | 2000 L/min |
Note: Standard machine packaging including : 2 pcs cutter,2pcs of bevel tool +tools + operation manual
Fetures
1. Low axial and radial clearance light weight suitable for working at narrow and complicated site
2. Split frame design can separate to 2 half, easy to process when two end not open
3. This machine can process cold cutting and beveling simultaneously
4. With option for electric, Pneuamtic, Hydraulic ,CNC based on site condition
5. Tool feed automatically with Low noise, long life and stable performance
6. Cold working without Spark , Will not affect the pipe material
7. Can process different pipe material : Carbon steel, stainless steel , alloys etc
8. Explosion Proof, Simple structure makes easy to maintenance
Bevel Surface
Application
Widely used in the fields of petroleum, chemical, natural gas,power plant construction,bolier and nuclear power, pipeline etc.
Customer Site
Packaging
FAQ
Q1: What is the power supply of the machine?
A: Optional Power Supply at 220V/380/415V 50Hz. Customized power /motor/logo/Color available for OEM service.
Q2: Why comes multi models and how should I Choose and understand?
A: We have different models based on customer’s requirements. Mainly different on power, Cutter head, bevel angel, or special bevel joint required. Please send a inquiry and share your requirements ( Metal Sheet specification width * length * thickness, required bevel joint and angel). We will present you with best solution based on general conclusion.
Q3: What is the delivery time?
A: Standard machines are stock available or spare parts available which able to be ready in 3-7 days. If you have special requirements or customized service. Normally takes 10-20 days after order confirm.
Q4: What is the warranty period and after sales service?
A: We provide 1 year warranty for machine except wearing parts or consumables. Optional for Video Guide, Online Service or local Service by third party. All spare parts available in both Shanghai and Kun Shan Warehouse in China for fast moving and shipping.
Q5: What is your payment Teams?
A: We welcome and try multi payment terms depends on order value and necessary. Will suggest 100% payment against fast shipment. Deposit and balance % against cycle orders.
Q6: How do you pack it?
A: Small machine tools packed in tool box and carton boxes for safety shipments by courier express. Heavy machines weight higher than 20 kgs packed in wooden cases pallet against safety shipment by Air or Sea. Will suggest bulk shipments by sea considering machine sizes and weight.
Q7: Are you Manufacture and what is your products range?
A: Yes. We are manufacture for beveling machine since 2000.Welcome to visit our factory in Kun shan City. We concentrating on metal steel beveling machine for both plate and pipes against welding preparation. Products including Plate Beveler, Edge Milling Machine, Pipe beveling, pipe cutting beveling machine, Edge rounding /Chamfering, Slag remov
