Case Introduction Introduction:

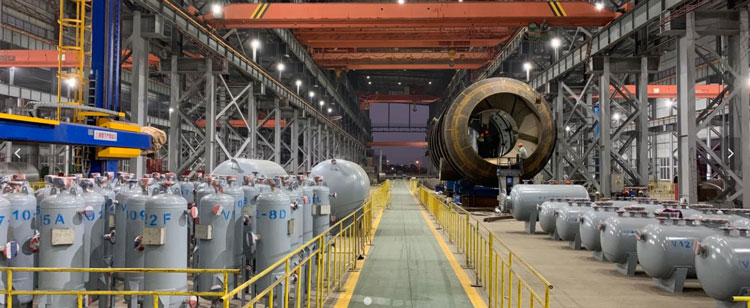

The client is a large pressure vessel enterprise located in Nanjing, Jiangsu, holding A1 and A2 class pressure vessel design and manufacturing licenses, as well as ASME U design and manufacturing qualifications. The company covers an area of 48,000 square meters, with a building area of 25,000 square meters and a production plant area of 18,000 square meters. Equipped with advanced machinery, the company boasts over 200 key production facilities. It possesses robust production capabilities and technical expertise, with an annual production capacity of 15,000 tons of equipment. The company undertakes the design, manufacturing, and installation of pressure vessels (Class I, II, and III), cryogenic vessels, non-standard equipment, metal structures, storage tanks, ASME-certified, and classification society-certified (ABS, DNV, GL, etc.) pressure vessels, as well as CE (PED)-certified pressure vessels. It is capable of designing and manufacturing containers and equipment made from carbon steel, low-alloy steel, chromium-molybdenum steel, stainless steel, duplex steel, titanium, Inconel, Monel nickel alloy, Incoloy high-temperature nickel alloy, pure nickel, Hastelloy, zirconium, and other materials.
Household Craft Requirements:
The material processed is 304 stainless steel plate, with a width of 1500mm, length of 10000mm, and varying thicknesses ranging from 6 to 14mm. On-site, a 6mm-thick stainless steel plate was machined, featuring a 30-degree welding bevel. The bevel depth requirement specifies leaving a 1mm blunt edge, with the remaining portion fully machined.

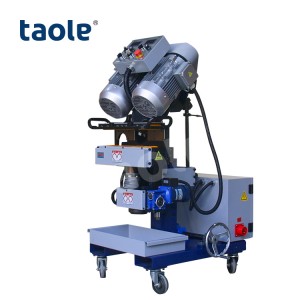

Recommended plate beveling Machine Model TMM-80A Introduction:
Product Features of the TMMA-80A Automatic Steel Plate Milling Machine/Stainless Steel edge Milling Machine/Automatic beveling Machine:
1. The bevel angle range is highly adjustable, allowing for any setting between 0 and 60 degrees;
2. The bevel width can reach 0-70mm, making it a cost-effective plate beveling machine (plate beveling equipment)
3. The rear-mounted reducer facilitates the machining of narrow plates and ensures safety;
4. The unique separate design of the control box and electrical box ensures safer operation;
5. Use a high-tooth-count milling cutter for beveling, with single-flute cutting for smoother operation;
6. The surface finish of the machined bevel shall be Ra3.2-6.3, fully meeting the welding requirements for pressure vessels;
7. Compact in size and lightweight, it is a portable automatic walking edge milling machine and also a portable beveling machine;
8. Cold cutting beveling operation, with no oxide layer on the bevel surface;
9. Autonomous technology makes it possible for machine quality to continuously improve.

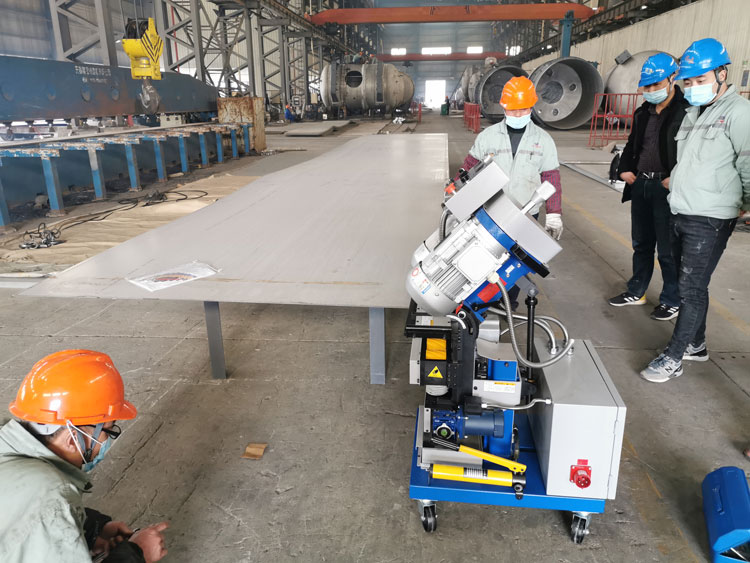

On site situation:
A 6mm thick stainless steel was processed on site, with a 30 degree welding bevel and a bevel depth requirement of leaving a 1mm blunt edge. TMM-80A beveling machine produced one edge with just one cut. The customer has been concerned that due to being a ten meter long thin plate, there will be large wavy curves when the plate is hung, and it is easy for the plate to vibrate, which may cause the bevel to form unsightly. The final result satisfied both the workshop manager and the workers on site.
User feedback:
"This device is very efficient and effective. When the next batch of boards arrives, it will need to be fully used and an additional 5 units will be needed
Post time: Nov-14-2025
